OPERATION AND MAINTENANCE INSTRUCTIONS

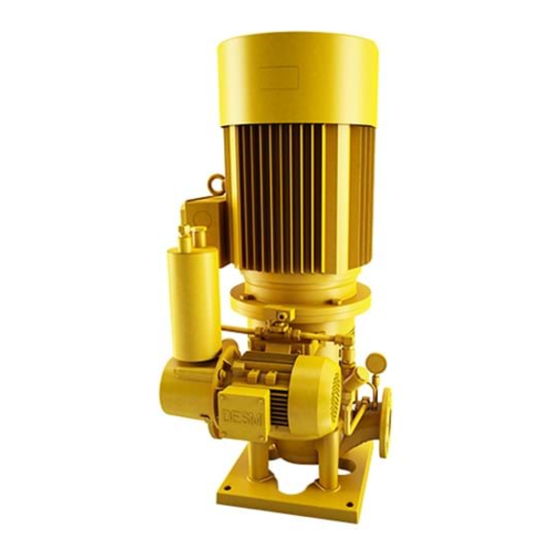

DESMI priming pump B114N
DESMI Pumping Technology A/S
Tagholm 1 – DK-9400 Nørresundby – Denmark
Special pump no. .................
_______________________________________________________________________________
___
DESMI Pumping Technology A/S
Tagholm 1
9400 Nørresundby – Denmark
Tel: +45 96 32 81 11 Fax: +45 98 17 54 99
E-mail:
desmi@desmi.com
www.desmi.com
Tel.: +45 96 32 81 11
Fax: +45 98 17 54 99
E-mail:
desmi@desmi.com
Internet:
www.desmi.com
Manual:
Language:
T1488
English
Revision:
C (11/2015)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B114N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Desmi B114N

Summary of Contents for Desmi B114N

  • Page 1 OPERATION AND MAINTENANCE INSTRUCTIONS DESMI priming pump B114N DESMI Pumping Technology A/S Tagholm 1 – DK-9400 Nørresundby – Denmark Tel.: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com Internet: www.desmi.com Manual: Language: Revision: T1488 English C (11/2015) Special pump no.

  • Page 2: Table Of Contents

    11.1 ORDERING SPARE PARTS ......................7 12. OPERATING DATA ........................7 13. EU DECLARATION OF CONFORMITY ..................8 14. ASSEMBLY DRAWING B114N ....................9 14.1 SPARE PARTS LIST B114N ......................9 15. DIMENSIONAL SKETCH ......................10 _______________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nørresundby –...

  • Page 3: Product Description

    These maintenance and operation instructions apply to the DESMI priming pumps B114N. The pumps have 1/2" connections on suction and pressure side. B114N is a vacuum pump of the water ring type, with mechanical shaft seal, bronze shaft, impeller and pump casing.

  • Page 4: Installation

    3.1 WIRING Wiring to be carried out by authorized skilled workmen according to the rules and regulations in force. 4. TRANSPORT/STORAGE The weight, including DESMI motor, is indicated in the table below: Type Weight in kg B114N/50 Hz B114N/60 Hz The pump is to be stored in a dry area.

  • Page 5: Inspection

    Pumps which are not in operation during frost periods are to be drained to avoid frost damage. Alternatively, it is possible to use anti-freeze liquids in normal constructions. ______________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nørresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 6: Dismantling

    A vertical pipe discharge air into the filled with water reduces the delivery piping. airflow considerably. ______________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nørresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com...

  • Page 7: Inspection And Maintenance

    2 phases connection and cable 10. INSPECTION AND MAINTENANCE Inspect the shaft seal in B114N for leaks at regular intervals. Before any inspection of a pump without guard check that the unit cannot be started unintentionally. The system is to be without pressure and drained of liquid.

  • Page 8: Eu Declaration Of Conformity

    13. EU DECLARATION OF CONFORMITY DESMI Pumping Technology A/S, hereby declare that our pumps of the type B114N are manufactured in conformity with the following essential safety and health requirements in the COUNCIL DIRECTIVE 2006/42/EC on machines, Annex 1. The following harmonized standards have been used: EN/ISO 13857:2008 Safety of machinery.

  • Page 9: Assembly Drawing B114N

    14. ASSEMBLY DRAWING B114N 14.1 SPARE PARTS LIST B114N Impeller Set screw/washer Copper pipe Pump casing Angle nipple Angle nipple End cover Copper pipe Fitting Shaft Hexagon nipple Magnetic valve * Shaft seal Bushing Pressure switch Pointed screw Filter Muff...

  • Page 10: Dimensional Sketch

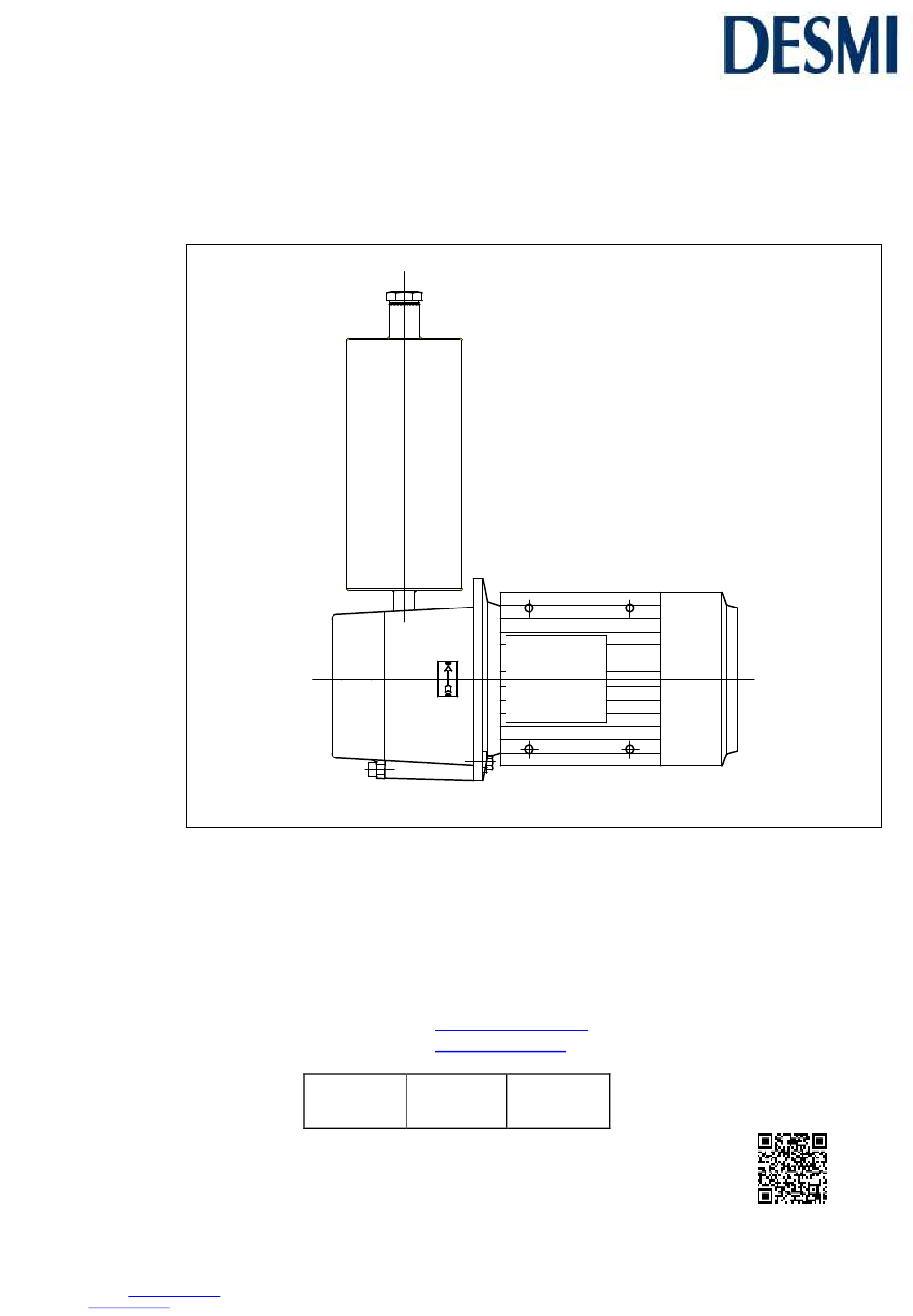

    15. DIMENSIONAL SKETCH ______________________________________________________________________________ DESMI Pumping Technology A/S Tagholm 1 9400 Nørresundby – Denmark Tel: +45 96 32 81 11 Fax: +45 98 17 54 99 E-mail: desmi@desmi.com www.desmi.com...
