Introduction
Meter Description
Measurement Precautions
Find Quality Products Online at:
Congratulations on your purchase of the Extech 380560 (117V) or 380562 (220V) High Resolution
MilliOhm Meter. This device offers seven resistance ranges with resolution as low as 0.01mΩ.
The 4-wire Kelvin clip connection ensures optimum accuracy. The built-in comparator feature
offers HI-LO-GO testing. Typical applications include transformer, motor coil, and PC Board
resistance measurements. Careful use of this meter will provide years of reliable service.

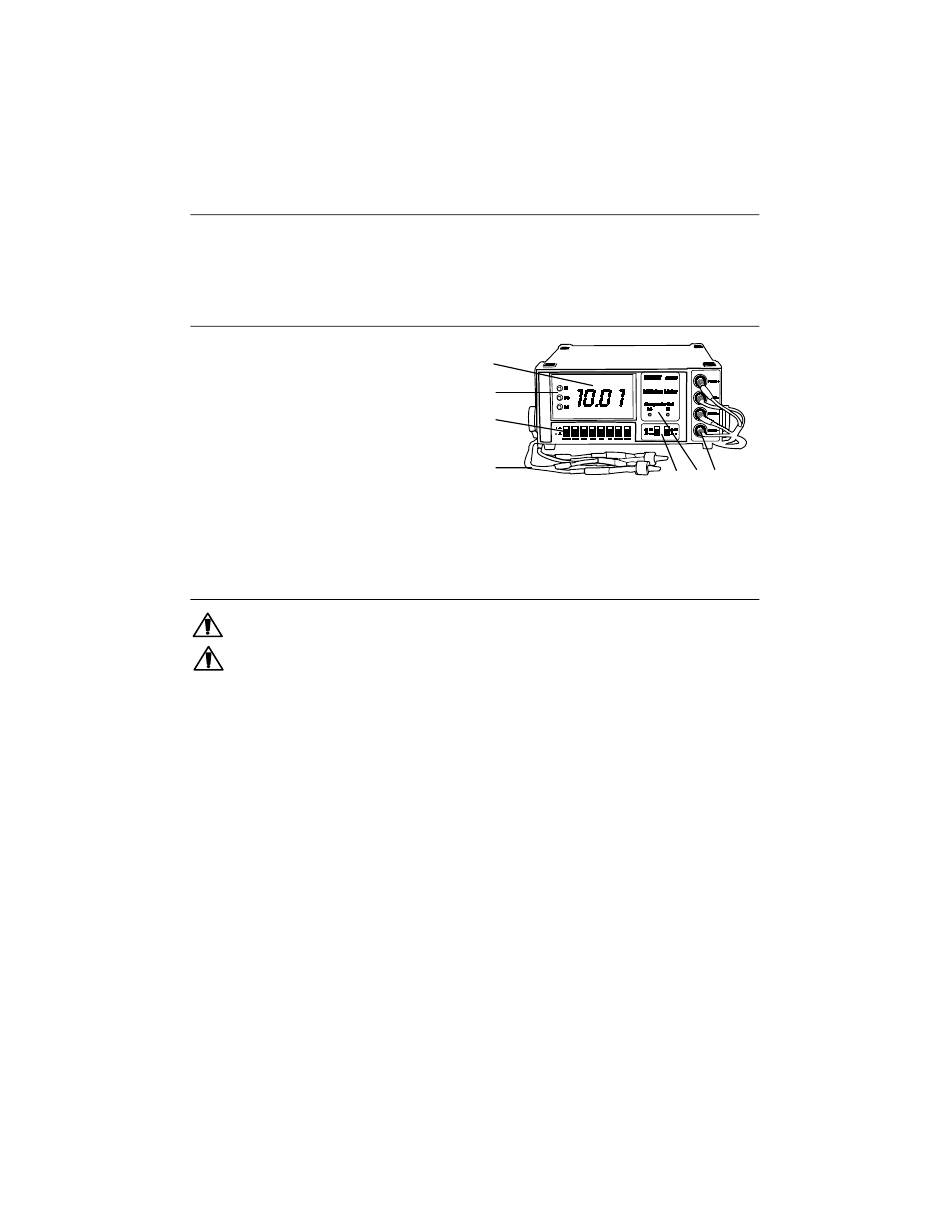

1.
LED Display
2.
HI/LO/GO Status Indicators
3.
Power and Range pushbuttons
4.
Kelvin clip leads
5.
SET/TEST and HI/LO pushbuttons
6.
Comparator adjustment screws
7.
Kelvin clip lead input terminals
Note: The power cable input and audible alert button are on the rear of the instrument.
Ensure that the meter is connected to the correct power source
(110V for model 380560 or 220V for model 380562).
Do not apply voltage to the meter input terminals. Meter damage may result.
GlobalTestSupply
www.
1
2
3
4
2
380560-en-GB_V1.9 2/17
.com
5
6 7
