- Page 1 User Manual High Resolution Benchtop MilliOhm Meter Models 380560 and 380562 Additional User Manual Translations available at www.extech.com...
-
Page 2: Meter Description

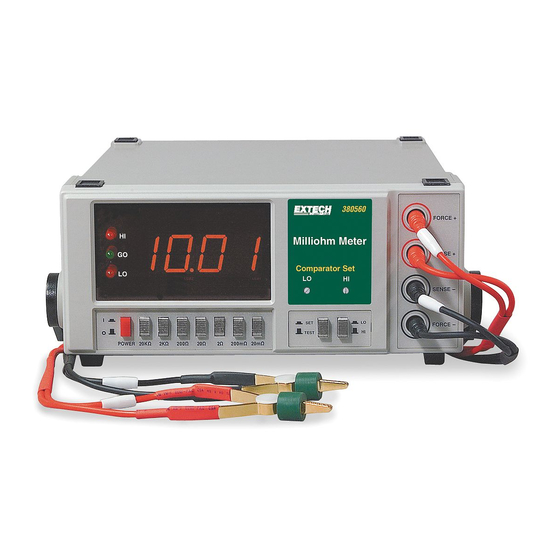

Introduction Congratulations on your purchase of the Extech 380560 (117V) or 380562 (220V) High Resolution MilliOhm Meter. This device offers seven resistance ranges with resolution as low as 0.01mΩ. The 4-wire Kelvin clip connection ensures optimum accuracy. The built-in comparator feature offers HI-LO-GO testing. -
Page 3: Measurement Procedure
Rx = Vx / Is Where: Vx is the voltage drop across the device under test; Volts Current Is is the test current; Rx is the resistance of the device under test. 380560-en-US_V2.0 6/22 o t s... -
Page 4: Specifications
Operating Temperature 0°C to 50°C (32°F to 122°F) Operating Humidity Max. 80% RH Power Supply 110V (380560) or 220V (380562) ±15%, 50/60Hz Weight 2.2kg (4.85 lbs) Dimensions 280 x 210 x 90mm (11 x 8.3 x 3.5") Replacement Kelvin leads... -
Page 5: Two Year Warranty
Contact Customer Support Customer Support Telephone List: https://support.flir.com/contact Calibration, Repair, and Returns: repair@extech.com Technical Support: https://support.flir.com Copyright © 2022 FLIR Systems Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com 380560-en-US_V2.0 6/22...
