Summary of Contents for Extech Instruments 380560

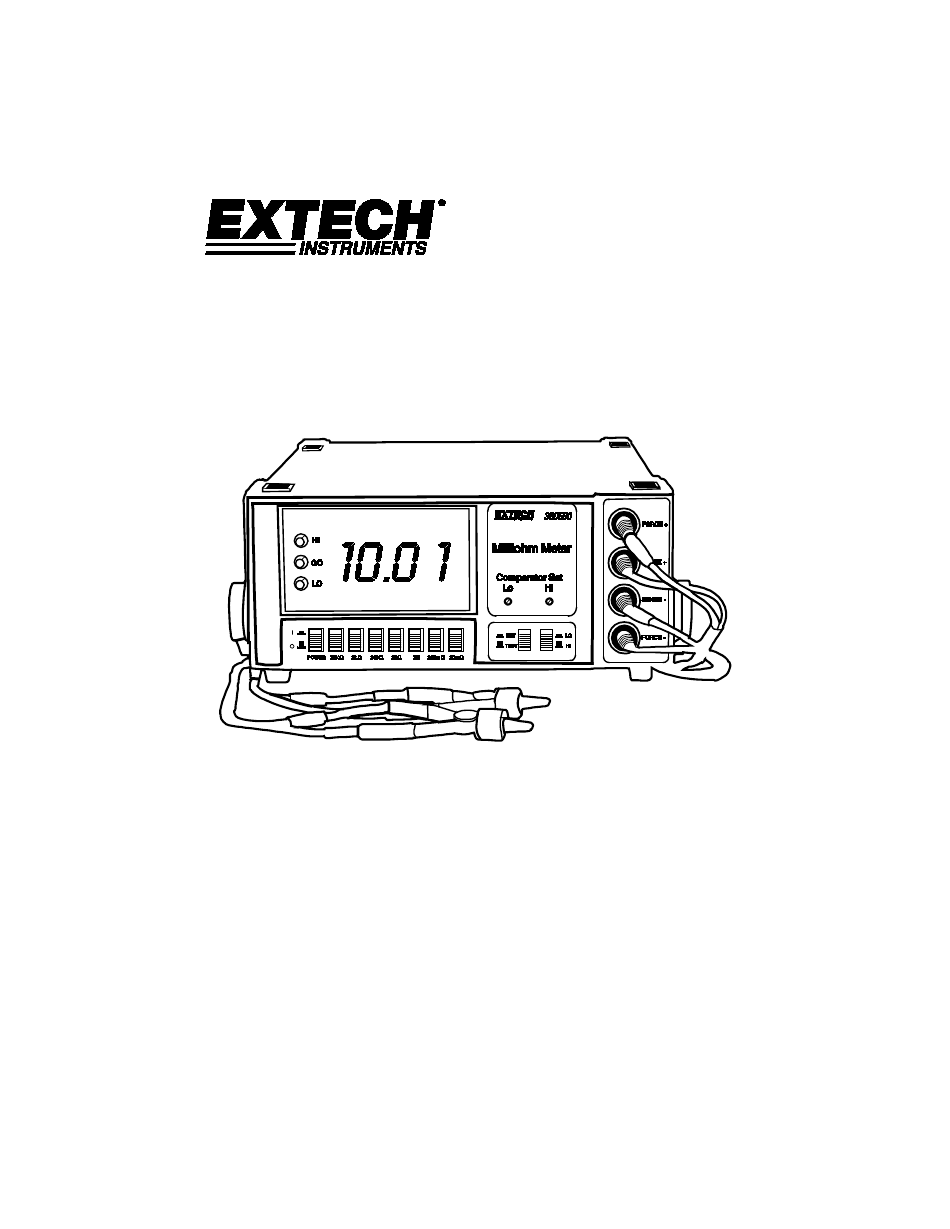

- Page 1 User Manual High Resolution Benchtop MilliOhm Meter Models 380560 and 380562 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

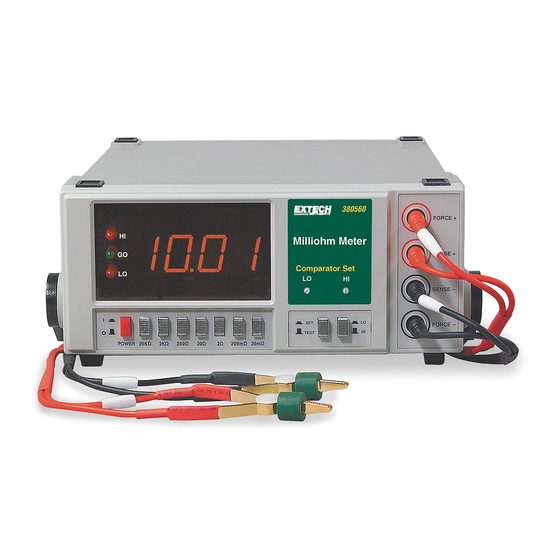

- Page 2 Introduction Congratulations on your purchase of the Extech 380560 (117V) or 380562 (220V) High Resolution MilliOhm Meter. This device offers seven resistance ranges with resolution as low as 0.01mΩ. The 4-wire Kelvin clip connection ensures optimum accuracy. The built-in comparator feature offers HI-LO-GO testing.
- Page 3 Where: Volts Vx is the voltage drop across the device under test; Current Is is the test current; Rx is the resistance of the device under test. 380560-en-GB_V1.9 2/17 o t s GlobalTestSupply www. .com Find Quality Products Online at:...
- Page 4 Operating Temperature 0°C to 50°C (32°F to 122°F) Operating Humidity Max. 80% RH Power Supply 110V (380560) or 220V (380562) ±15%, 50/60Hz Weight 2.2kg (4.85 lbs) Dimensions 280 x 210 x 90mm (11 x 8.3 x 3.5") Replacement Kelvin leads...
