6.2 Full stroke test
The full stroke test will move the valve from 100%-0%-100%. The test can be initiated from the test
menu, a communication protocol or a digital input depending on the configuration.

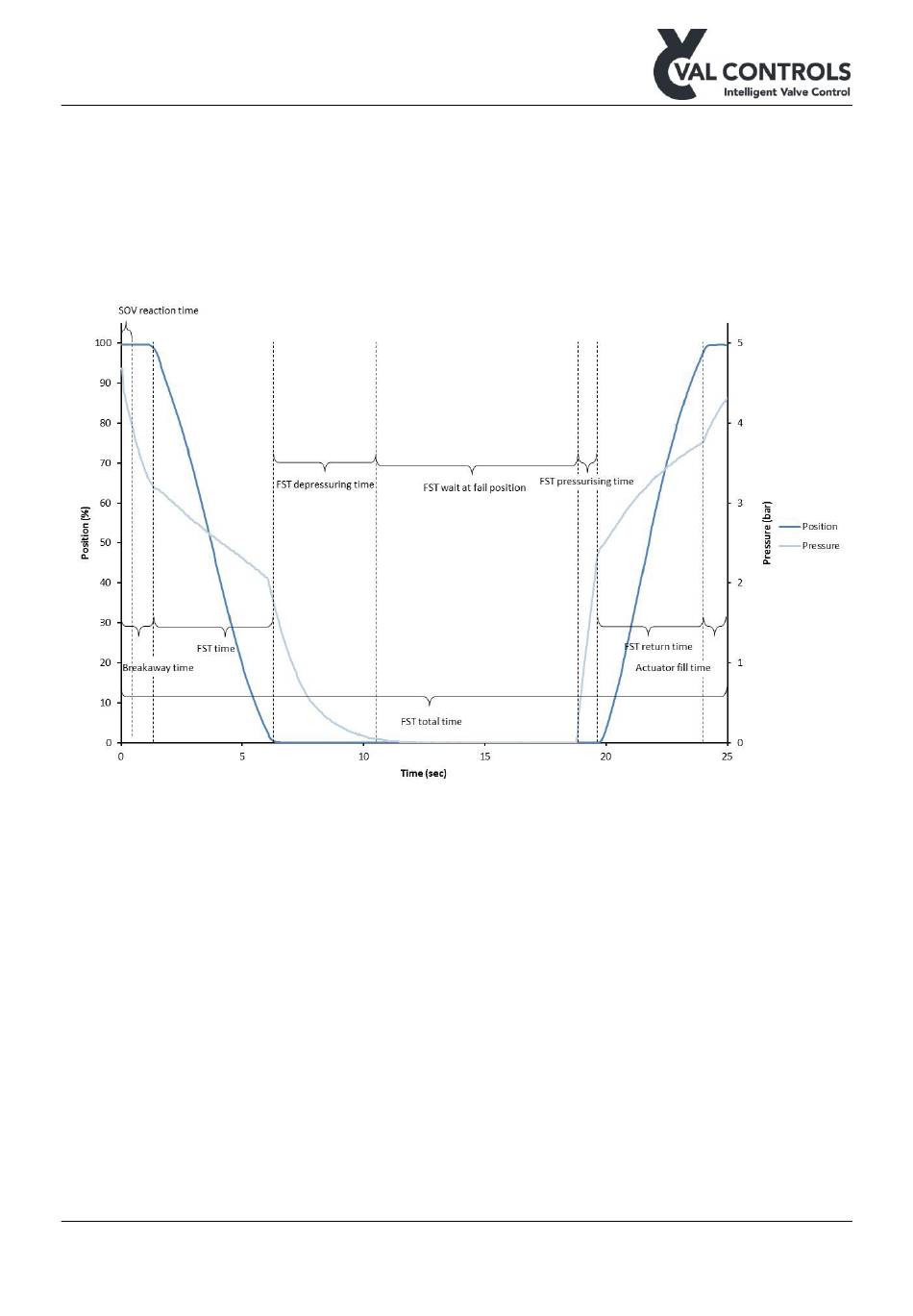

Signatures from typical full strokes shown in Figure 12 and Figure 13, including definitions on the
different terms further used in this manual.
Figure 12: FST time definitions
