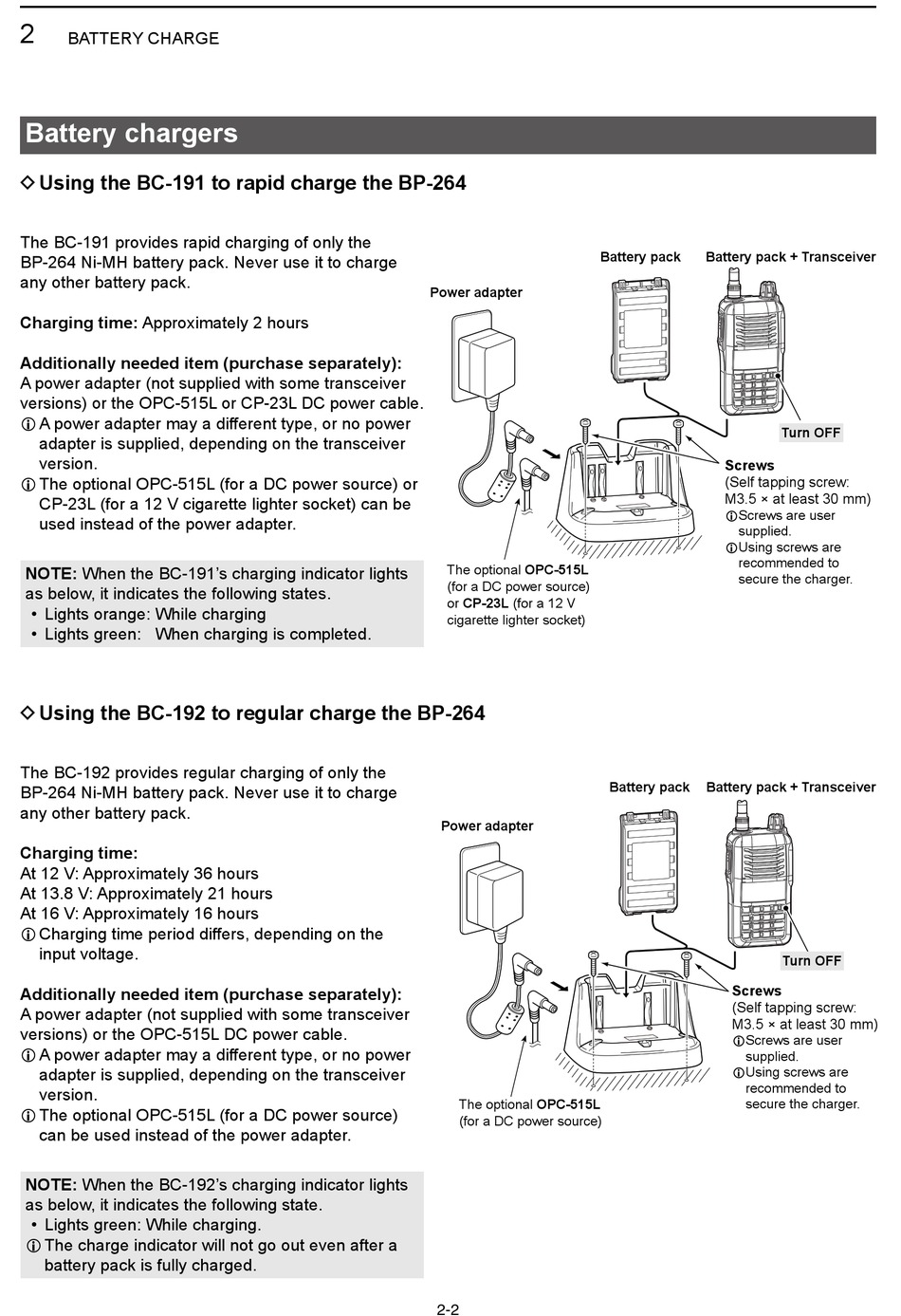

BATTERY CHARGE
Battery chargers
D Using the BC-191 to rapid charge the BP-264
The BC-191 provides rapid charging of only the
BP-264 Ni-MH battery pack. Never use it to charge
any other battery pack.
Charging time: Approximately 2 hours
Additionally needed item (purchase separately):
A power adapter (not supplied with some transceiver
versions) or the OPC-515L or CP-23L DC power cable.
L A power adapter may a different type, or no power
adapter is supplied, depending on the transceiver
version.
L The optional OPC-515L (for a DC power source) or
CP-23L (for a 12 V cigarette lighter socket) can be
used instead of the power adapter.
NOTE: When the BC-191's charging indicator lights
as below, it indicates the following states.
• Lights orange: While charging
• Lights green: When charging is completed.
D Using the BC-192 to regular charge the BP-264
The BC-192 provides regular charging of only the
BP-264 Ni-MH battery pack. Never use it to charge
any other battery pack.
Charging time:
At 12 V: Approximately 36 hours
At 13.8 V: Approximately 21 hours
At 16 V: Approximately 16 hours
L Charging time period differs, depending on the
input voltage.
Additionally needed item (purchase separately):
A power adapter (not supplied with some transceiver
versions) or the OPC-515L DC power cable.
L A power adapter may a different type, or no power
adapter is supplied, depending on the transceiver
version.
L The optional OPC-515L (for a DC power source)
can be used instead of the power adapter.
NOTE: When the BC-192's charging indicator lights
as below, it indicates the following state.
• Lights green: While charging.
L The charge indicator will not go out even after a
battery pack is fully charged.
Power adapter
The optional OPC-515L
(for a DC power source)
or CP-23L (for a 12 V
cigarette lighter socket)
Power adapter
The optional OPC-515L
(for a DC power source)
2-2
Battery pack Battery pack + Transceiver
Screws
(Self tapping screw:
M3.5 × at least 30 mm)
LScrews are user
supplied.
LUsing screws are
recommended to
secure the charger.
Battery pack Battery pack + Transceiver
Screws
(Self tapping screw:
M3.5 × at least 30 mm)
LScrews are user
supplied.
LUsing screws are
recommended to
secure the charger.
Turn OFF
Turn OFF
