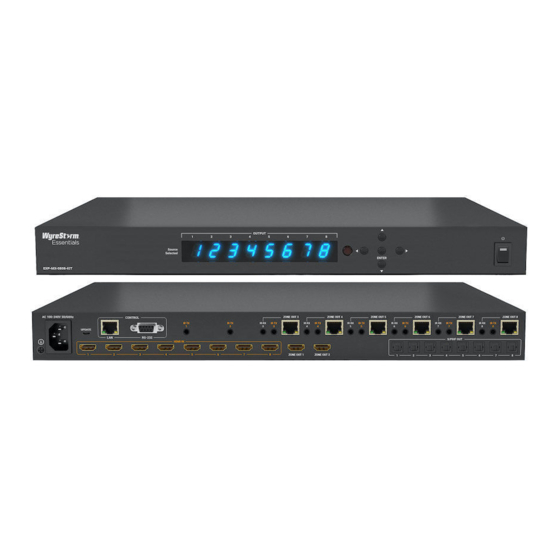

4K UHD 4:2:0 60Hz 8x8 HDBaseT™ Matrix Switch
with 6 Receivers & S/PDIF De-Embed
EXP-MX-0808-KIT
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC for the HDMI outputs, WyreStorm cannot
guarantee compatibility with all forms of CEC communication.

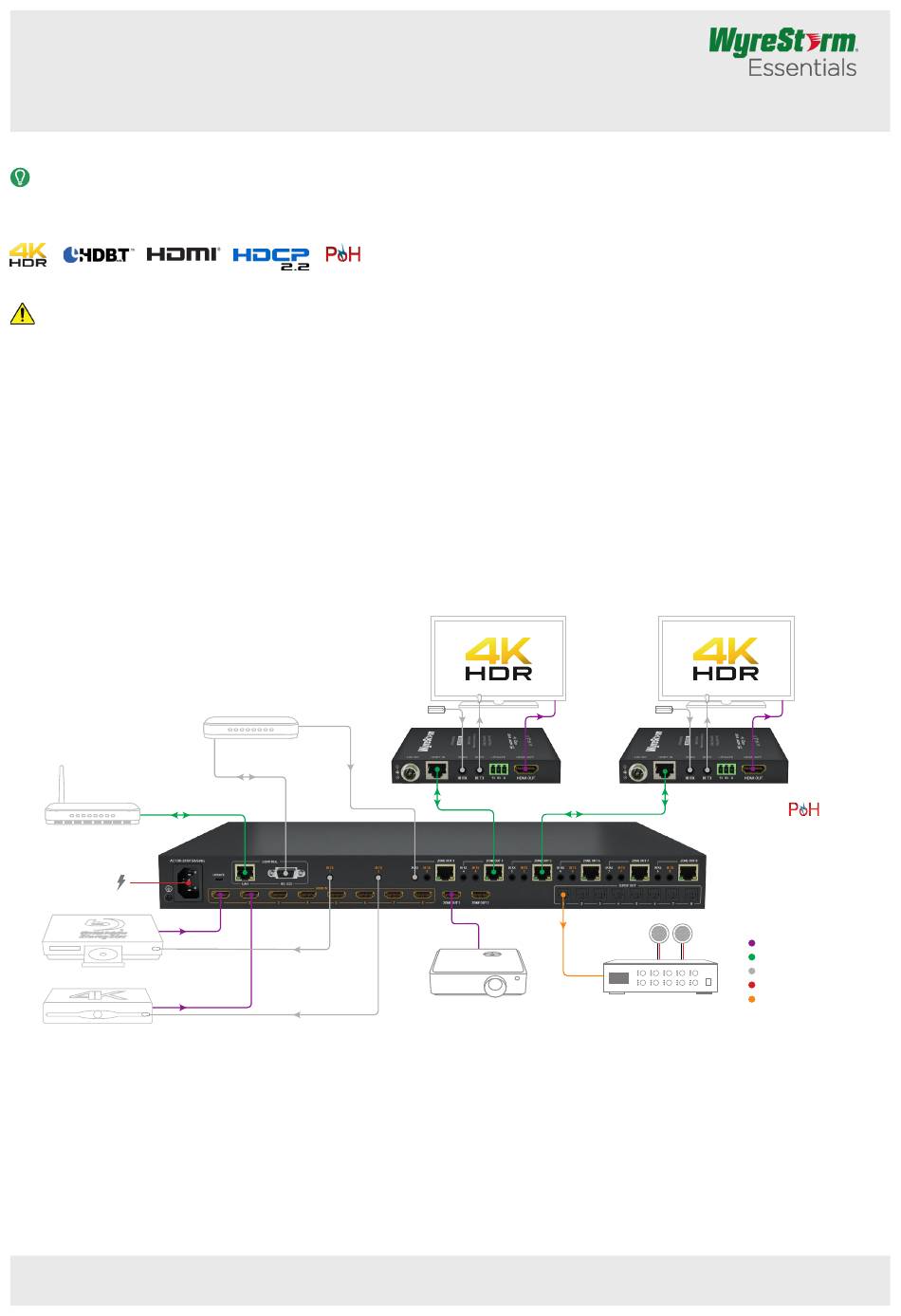

Basic Wiring Diagram
LAN Cat6a/7
Wireless Router
AC Mains
Power
Blu-ray Player
HDMI from source
Satellite Box
HDMI from source
Copyright © 2020 WyreStorm Technologies |
EXP-MX-0808-KIT Quickstart Guide | 200331
section for important wiring
Control System
CAB-IR-LINK (Sold Separately)
IR
Matrix Control Only
IR TX
IR TX
wyrestorm.com
In the Box
1x EXP-MX-0808-KIT Matrix
6x EXP-MX-KIT-RX Receivers
1x AC Power Cord with EU pins
1x AC Power Cord with US pins
1x AC Power Cord with UK pins
1x AC Power Cord with AU pins
1x IR Remote
(CR2025 Battery not Included)
8x IR Emitters
6x IR Receivers
2x Matrix Mounting Brackets with screws
12x Receiver Mounting Brackets with screws (2 per RX)
1x Quickstart Guide (this document)
HDMI to display
IR RX
IR TX
EXP-MX-KIT-RX (Receiver)
Cat6a/7
Cat6a/7
HDMI to display device
Projector
1 of 4
Quickstart Guide
IR RX
IR TX
EXP-MX-KIT-RX (Receiver)
Receivers
EXP-MX-0808-KIT
(Matrix)
KEY
HDMI
Amplifier
HDBaseT / Ethernet
Control
Power
Digital Audio
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
HDMI to display
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm ESSENTIALS EXP-MX-0808-KIT
Summary of Contents for Wyrestorm ESSENTIALS EXP-MX-0808-KIT
- Page 1 4K UHD 4:2:0 60Hz 8x8 HDBaseT™ Matrix Switch with 6 Receivers & S/PDIF De-Embed EXP-MX-0808-KIT Quickstart Guide WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In the Box IMPORTANT! Installation Requirements 1x EXP-MX-0808-KIT Matrix •...
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
- Page 3 • When to set to DHCP the IP address of the unit can be displayed by pressing and holding the front panel Enter and Down buttons for 3 seconds. The IP address will be displayed on the front panel. • The installer password and general password are the same by default. WyreStorm recommends changing the password for installer login to avoid any unwanted changes being made to the matrix configuration.
- Page 4 Safety and Emission CE | FCC | RoHS | RCM | EAC Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Copyright © 2020 WyreStorm Technologies | wyrestorm.com UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
