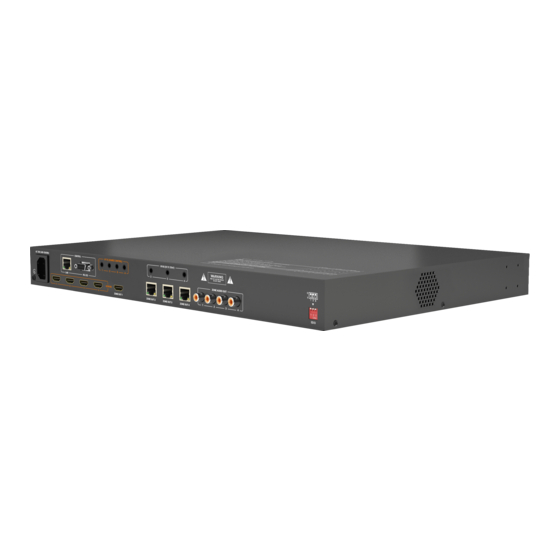

4K UHD 4:2:0 60Hz 4x4 HDBaseT™ Matrix Switch
with 3 Receivers & S/PDIF De-Embed
EXP-MX-0404-KIT
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC for the HDMI outputs, WyreStorm cannot
guarantee compatibility with all forms of CEC communication.

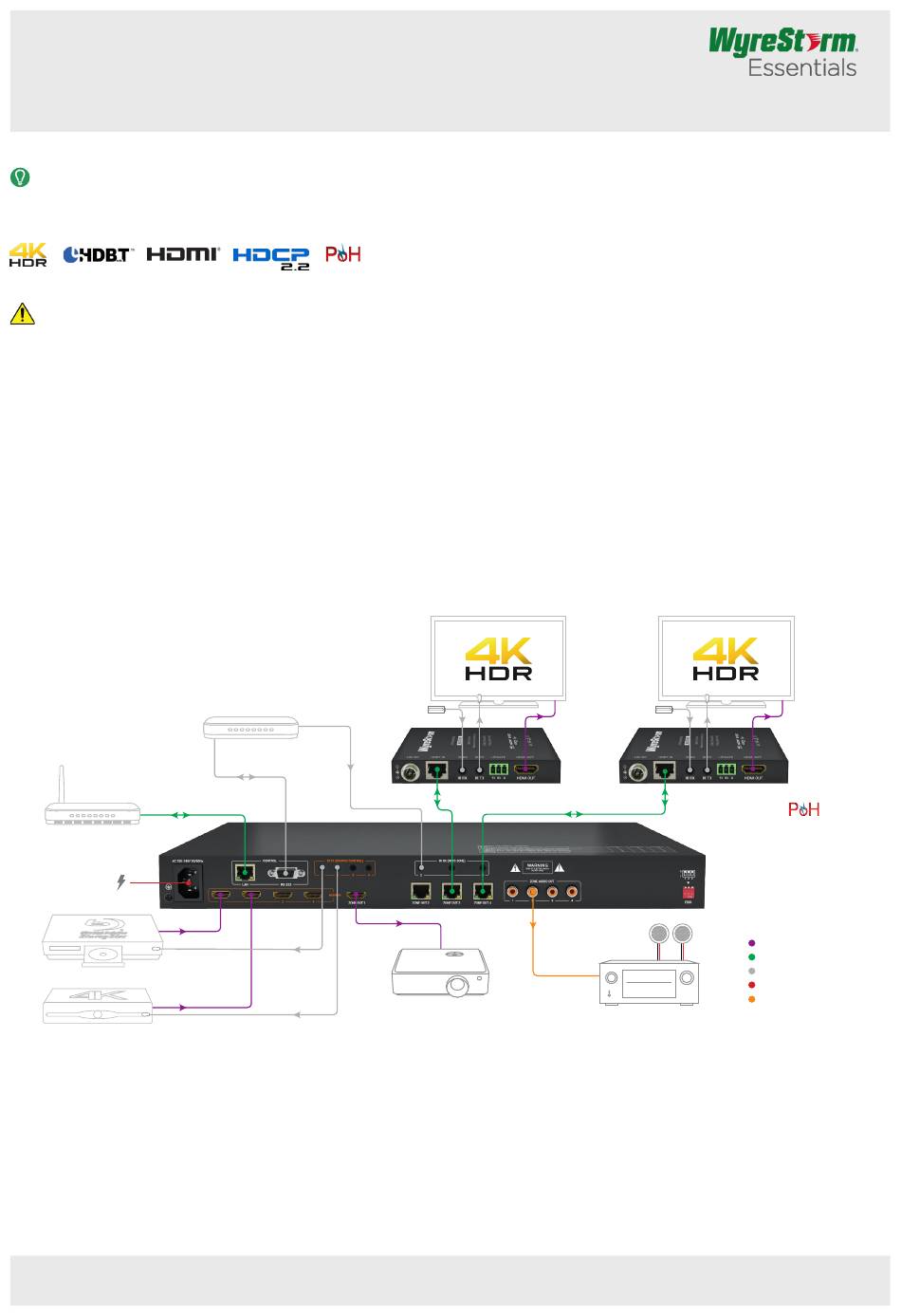

Basic Wiring Diagram
LAN Cat6a/7
Wireless Router
AC Mains
Power
Blu-ray Player
HDMI from source
Satellite Box
HDMI from source
Copyright © 2020 WyreStorm Technologies |
EXP-MX-0404-KIT Quickstart Guide | 200330
section for important wiring
Control System
CAB-IR-LINK (Sold Separately)
IR
Matrix Control Only
HDMI to display device
IR TX
IR TX
wyrestorm.com
In the Box
1x EXP-MX-0404-KIT Matrix
3x EXP-MX-KIT-RX Receivers
1x AC Power Cord with EU pins
1x AC Power Cord with US pins
1x AC Power Cord with UK pins
1x AC Power Cord with AU pins
1x IR Remote
(CR2025 Battery not Included)
4x IR Emitters
3x IR Receivers
2x Matrix Mounting Brackets with screws
6x Receiver Mounting Brackets with screws (2 per RX)
1x Quickstart Guide (this document)
HDMI to display
IR RX
IR TX
EXP-MX-KIT-RX (Receiver)
Cat6a/7
Cat6a/7
Projector
1 of 4
Quickstart Guide
IR RX
IR TX
EXP-MX-KIT-RX (Receiver)
Receivers
powered by
EXP-MX-0404-KIT
(Matrix)
KEY
HDMI
HDBaseT / Ethernet
Control
Power
Digital Audio
Audio Video Receiver
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
HDMI to display
