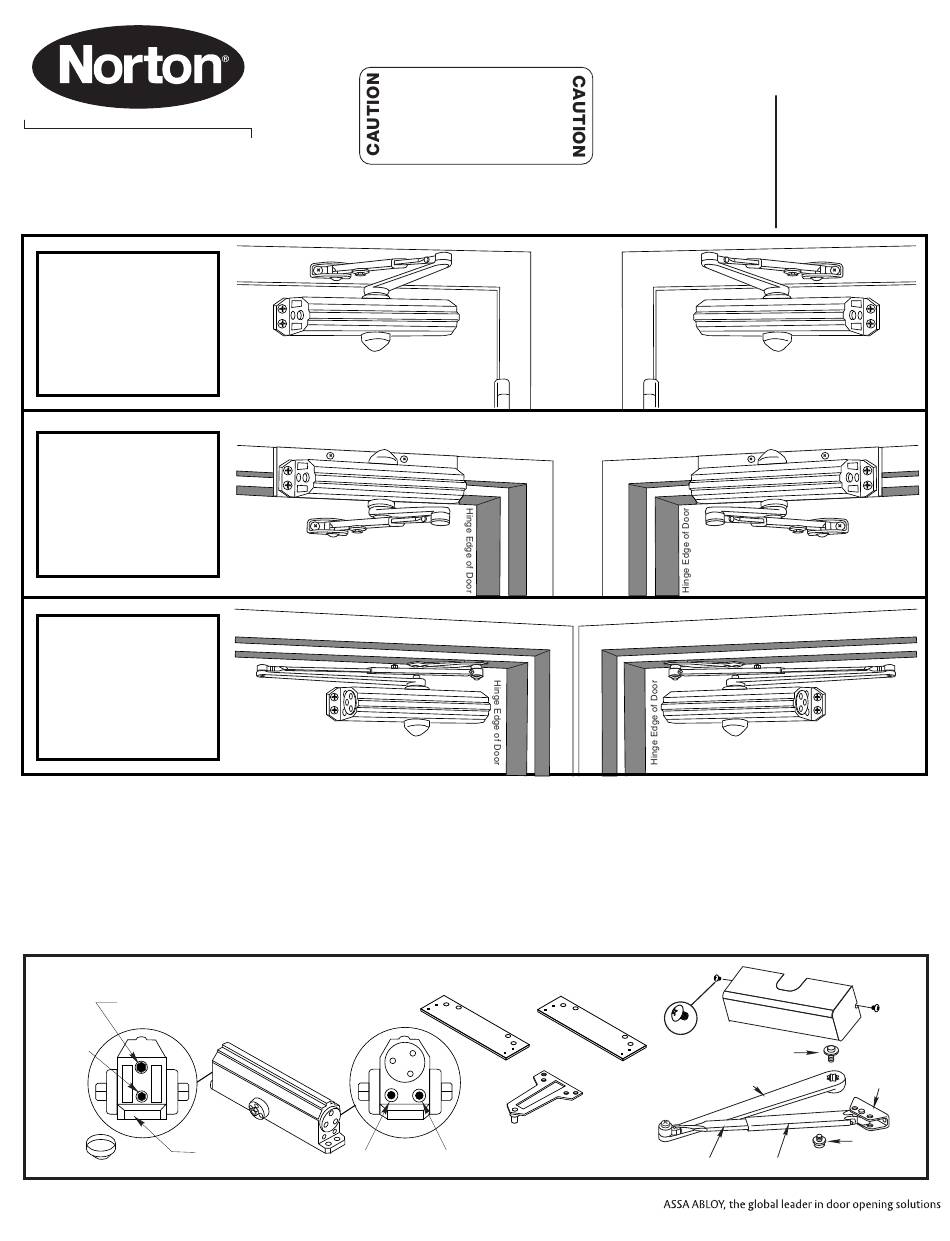

ASSA ABLOY
Regular Arm
Installation
Closer on door
on hinge (pull)
side of door
See Page 2
Top Jamb
Installation
Closer on frame
on opposite to hinge
(push) side of door
See Page 3
Parallel Arm
Installation
Closer on door
on opposite to hinge
(push) side of door
See Page 4
NOTE: For special applications a separate door and frame preparation template is packed with these instructions
Use this instruction sheet for installation sequence and closer adjustments only
• It is recommended that the door on which the door closer will be installed be hung on ball bearing hinges. Door must swing freely
• A separate door stop, supplied by others, is recommended to prevent damage to the door closer, closer arm, or to the door, frame or
adjacent walls.
• Door and Frame must be properly reinforced, or use of special fasteners employed, to prevent the mounting screws from pulling out.
• All dimensions are given in inches with corresponding metric dimensions (mm) in parenthesis.
Components:
Spring Power Adjustment Screw
(1/8 Hex Drive)
1681 Only
"BC" Valve
4
Pinion Cap
Copyright © 2016 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Installation Instructions
Left Hand Door - LH
Right Hand Reverse - RHR
Right Hand Door - RH
Left Hand Reverse - LHR
Right Hand Door - RH
Left Hand Reverse - LHR
Closer
Size
"L"Valve
Stamp
An incorrectly installed or improperly
adjusted door closer can cause
property damage or personal injury.
These instructions should be followed
to avoid the possibility of
misapplication or misadjustment.
NON HOLD OPEN
1688
1618A Soffit Plate
Used with Parallel
"S"Valve
Arm Closers Only
Narrow Profile Series
1680 Series
1681 Series
Multi-Sized Closers
Non Hold Open Models
Sized
(Sizes 3 & 4)
1683BC
1684BC
1682
(2)
Main Arm Screw
Main Arm
Arm Slide
Connecting Rod
80-9316-2536-020 Rev 1
Sized Closers
ASSA ABLOY
Multi-Sized
(Sizes 1 thru 6)
1681
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
Optional Cover
1600P
Regular
Arm/Top
Jamb Shoe
Forearm
Screw
