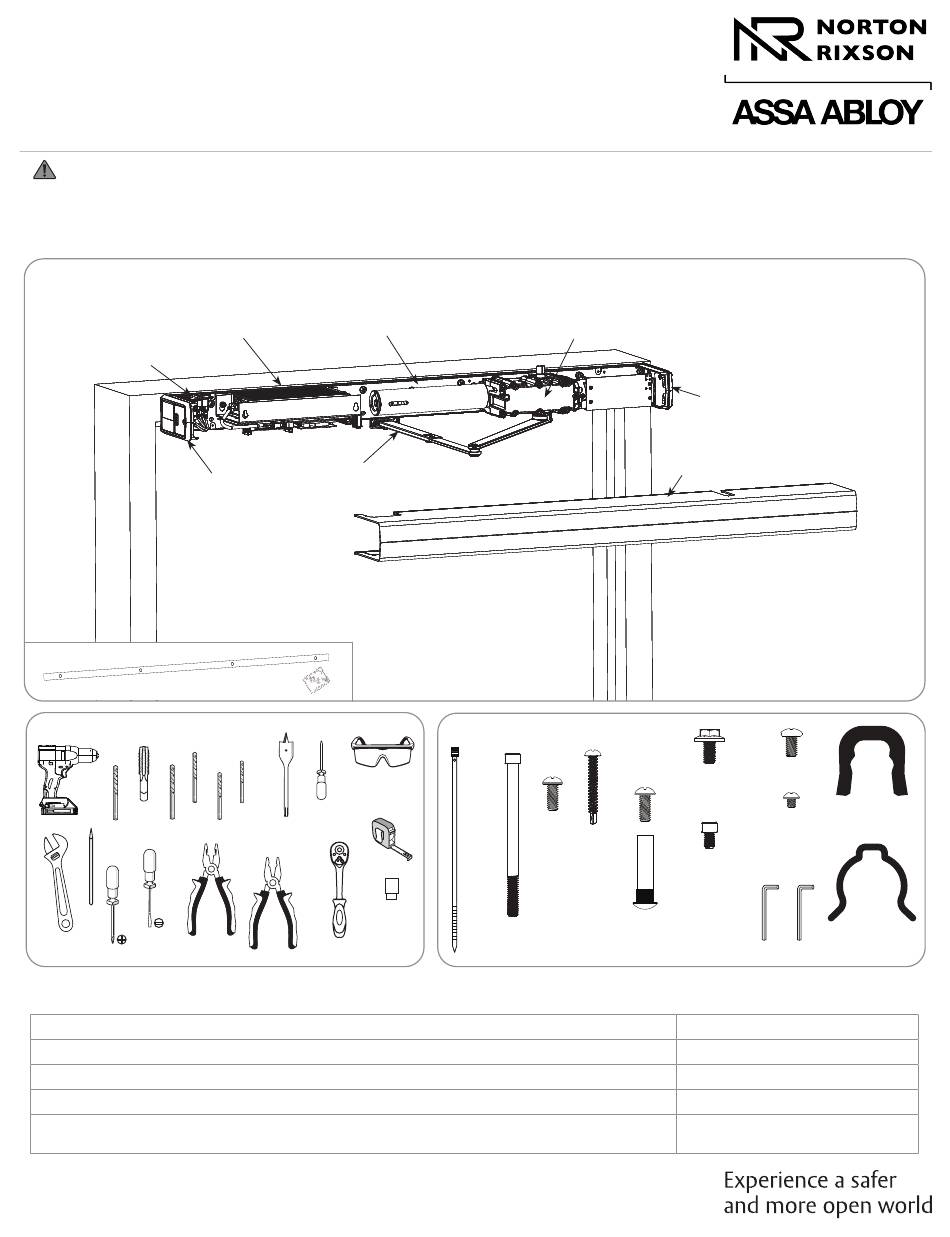

6300 Series Full Feature Low Energy Operator
Model 6331 (Push Side), Low Ceiling Application
Installation Instructions
WARNING
This product can expose you to lead which is known to the
state of California to cause cancer and birth defects or other
reproductive harm. For more information go to:
www.P65warnings.ca.gov.
6331 Push Side 110° to 135° opening
Power Supply
Optional
Power Cord/
Surface Conduit Brackets
(6300CBPC or 6300CB)
End Cap Kit
(6300END)
Dress Plate (6300DPS)
Tools Needed
1/4-20 9/32"
#7 3/8"
2.5mm
10" or 12"
Wire
#2 & #3
Stripper
The table below provides a list of documents associated with this product. These documents are available for download
from www.nortonrixson.com. If additional information or assistance is needed, contact Technical Product Support.
6300 Series Quick Start Guide
6300 Series Operator Programming Guide
6300 Series Operator, 6332 Push Side Installation Instructions
6331 Push Side Template, Low Ceiling Application, 36-48" Door Width, 90-250 lb. Door Weight, 110°
Min Open Angle w/ Reveal of 6-3/4" Max, 130° Max Open Angle w/ Reveal of 1/8" Min
Copyright © 2019-2021, 2023, 2025, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in
whole or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9363-0007-020 Rev 11 03/25
(6300CM)
Backplate
Push Arm Pkg
(6330-1)
Safety
Glasses
Punch
3/32"
Ø7/8 Drill or
3/16"
Hole Saw
3/4"
Deep
Well
1/2"
Pliers
Document Title
Approved 2025-03-13
Pour la version francaise voir NortonRixson.com.
READ AND FOLLOW ALL INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
Operator Body
(6300LAP)
Supplied Fasteners & Tools
or
12x
2x
Backplate &
Zip
Forearm Shoe
Ties
1/4-20 Machine
or
1/4-14 x 1-3/4"
Wood
4x
Forearm Shoe Option
Operator Body
1/4-20 x 5/8"
1/4-20 x 3-3/4"
Screw & Sleeve Nut
End Cap Kit
(6300END)
Cover
(6300COV2 or
6300COV2-CB)
4x
1x
8-32 X 5/16"
Main Arm
1/4-20 x 1/2"
2x
Optional
8-32 x 1/4"
Machine
6x
Screw
Power Supply
& End Caps
1/4-20 x 3/8"
2x
3/16" 5/32"
Document Number
80-9363-0014-020
80-9363-0015-020
80-9363-0009-020
80-7363-0002-020
1x
Cable
Retaining Clip
2x
Cable Retaining
Clips
