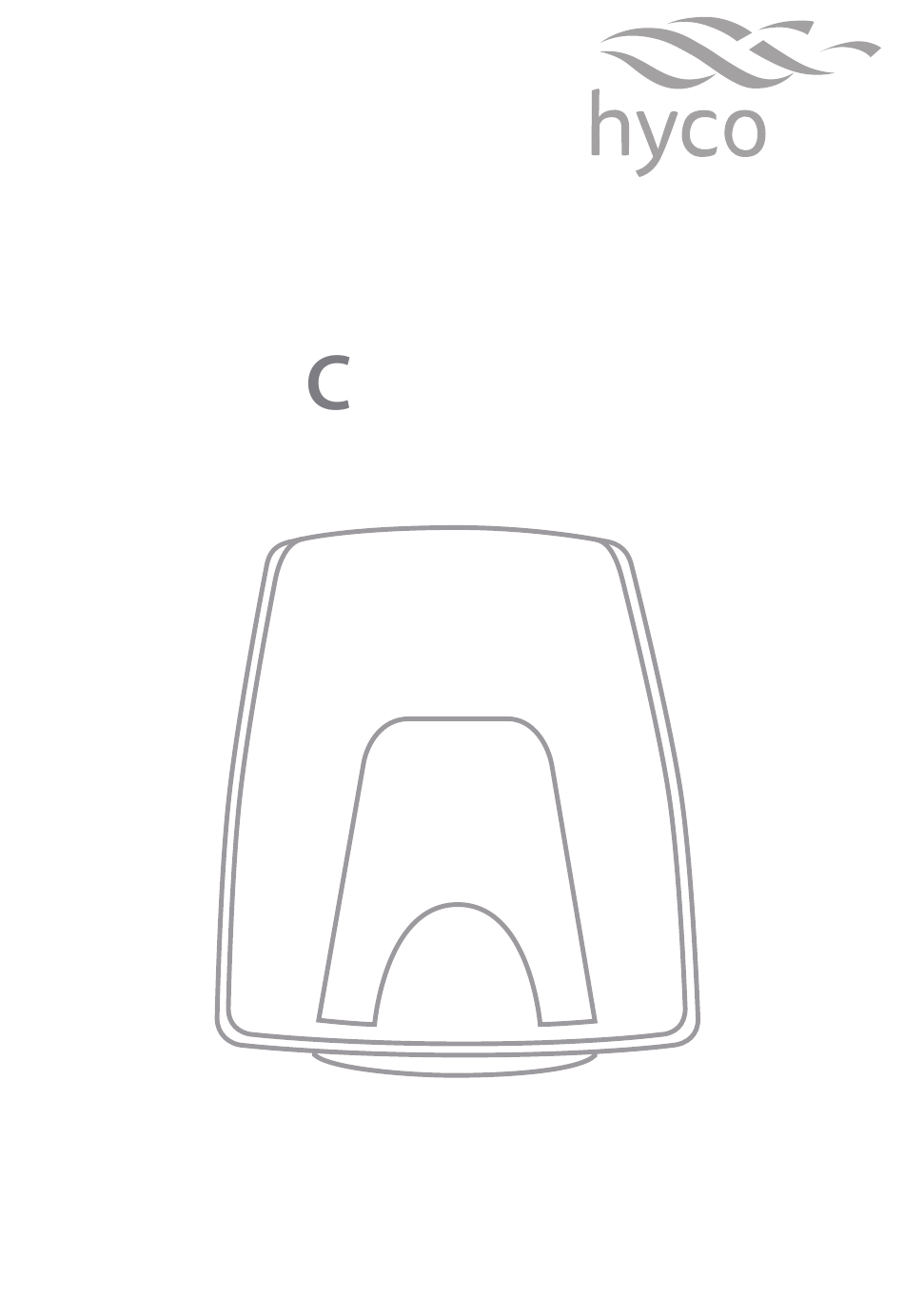

- Page 1 Product Instruction Manual ontour CTRW (White ABS) 1.5kW Automatic Hand Dryer Version 3.2 Jan 2015 V17.11,1...
-
Page 2: Important Safety Points
Thank you for purchasing a Hyco Contour hand dryer. Please ensure you read and understand these instructions to ensure safe installation and operation. The Contour is a traditional high powered hand dryer that is suitable for a variety of public washroom applications. - Page 3 2. Installation To avoid malfunction do not install the appliance in the following environments: Temperatures below -10 C or above 40 C. Places within reach of a person taking bath or shower. Places in direct sunlight or strong light. Within 40cm of any surface beneath the air outlet. •...
- Page 4 Always ensure there is no concealed electrical wiring or pipework prior to drilling into the surface. • Using the template or dimensions supplied and ensuring a horizontal level, mark out the three holes for mounting the dryer onto the desired surface. Maintain a clear space of at least 120mm from the sides of the dryer and 500mm below the outlet.
-
Page 5: Electrical Connection
3. Electrical connection Alwasy isolate the power supply before any electrical work is undertaken. • Connection should be made to the fixed wiring of the property via a double pole switched fused spur. • Electrical connections should be made as follows: Green/Yellow earth wire to the terminal marked “... - Page 6 5. Maintenance Always isolate the appliance from the power supply prior to any maintenance or adjustment. • Remove any dust or debris form the inlet holes. • Wipe the exterior with a soft damp cloth. • Do no use abrasive chemicals on the dryer. It is possible to adjust the sensing distance of the hand dryer if required.
-
Page 7: Specifications
6. Specifications CTRW Voltage/frequency 230V~/50Hz Power 1500W Ingress Protection IP22 Finish White ABS Weight 1.7kg 253mm 198mm 145mm... - Page 8 If you experience a problem with this product you should first contact our service department on 01924 225 200 before taking any further action. Experience has shown that issues can often be resolved without the need to return or uninstall the product. Hyco Manufacturing Ltd Normandy Court Express Way...
