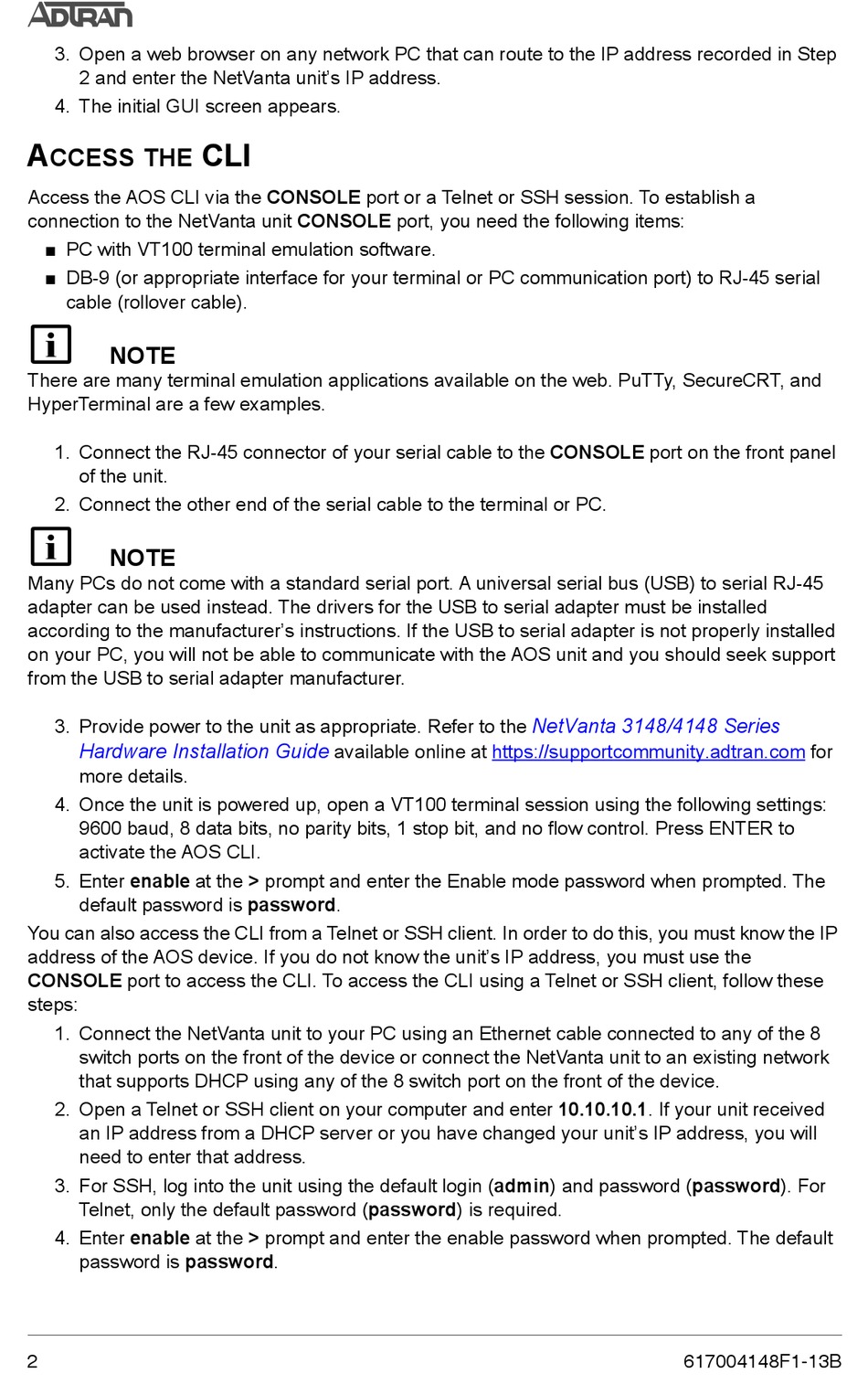

Change Login Passwords - ADTRAN NETVANTA 3148 Quick Start

3. Open a web browser on any network PC that can route to the IP address recorded in Step
2 and enter the NetVanta unit's IP address.
4. The initial GUI screen appears.
A
CCESS THE
Access the AOS CLI via the CONSOLE port or a Telnet or SSH session. To establish a
connection to the NetVanta unit CONSOLE port, you need the following items:
■ PC with VT100 terminal emulation software.
■ DB-9 (or appropriate interface for your terminal or PC communication port) to RJ-45 serial
cable (rollover cable).
g
NOTE
There are many terminal emulation applications available on the web. PuTTy, SecureCRT, and
HyperTerminal are a few examples.
1. Connect the RJ-45 connector of your serial cable to the CONSOLE port on the front panel
of the unit.
2. Connect the other end of the serial cable to the terminal or PC.
g
NOTE
Many PCs do not come with a standard serial port. A universal serial bus (USB) to serial RJ-45
adapter can be used instead. The drivers for the USB to serial adapter must be installed
according to the manufacturer's instructions. If the USB to serial adapter is not properly installed
on your PC, you will not be able to communicate with the AOS unit and you should seek support
from the USB to serial adapter manufacturer.
3. Provide power to the unit as appropriate. Refer to the
Hardware Installation Guide
more details.
4. Once the unit is powered up, open a VT100 terminal session using the following settings:
9600 baud, 8 data bits, no parity bits, 1 stop bit, and no flow control. Press ENTER to
activate the AOS CLI.
5. Enter enable at the > prompt and enter the Enable mode password when prompted. The
default password is password.
You can also access the CLI from a Telnet or SSH client. In order to do this, you must know the IP
address of the AOS device. If you do not know the unit's IP address, you must use the
CONSOLE port to access the CLI. To access the CLI using a Telnet or SSH client, follow these
steps:
1. Connect the NetVanta unit to your PC using an Ethernet cable connected to any of the 8
switch ports on the front of the device or connect the NetVanta unit to an existing network
that supports DHCP using any of the 8 switch port on the front of the device.
2. Open a Telnet or SSH client on your computer and enter 10.10.10.1. If your unit received
an IP address from a DHCP server or you have changed your unit's IP address, you will
need to enter that address.
3. For SSH, log into the unit using the default login (admin) and password (password). For
Telnet, only the default password (password) is required.
4. Enter enable at the > prompt and enter the enable password when prompted. The default
password is password.
2
CLI
available online at
NetVanta 3148/4148 Series
https://supportcommunity.adtran.com for
617004148F1-13B
