ADTRAN NETVANTA 3148 Quick Start

Quick Start
G S
ETTING TARTED
This NetVanta unit ships with a statically assigned IP address of 10.10.10.1 and the ability to
connect to a Dynamic Host Control Protocol (DHCP) network and receive an IP address
assignment from a DHCP server. When connecting to a DHCP network, this unit supports Zero-
Touch Provisioning, allowing the NetVanta router to download and apply configuration param-
eters from a configuration management server.
Regardless of the method you use to connect the NetVanta unit to the network, there are two
methods available for configuration:
■ Web-based graphical user interface (GUI)
■ ADTRAN Operating System (AOS) command line interface (CLI)
The GUI lets you configure the main unit settings and provides online guidance and explanations
for each setting. However, using the AOS CLI may be necessary for more advanced configura-
tions.
A
CCESS THE
You may access the GUI from a web browser in one of two ways:

Connect via the Static Address

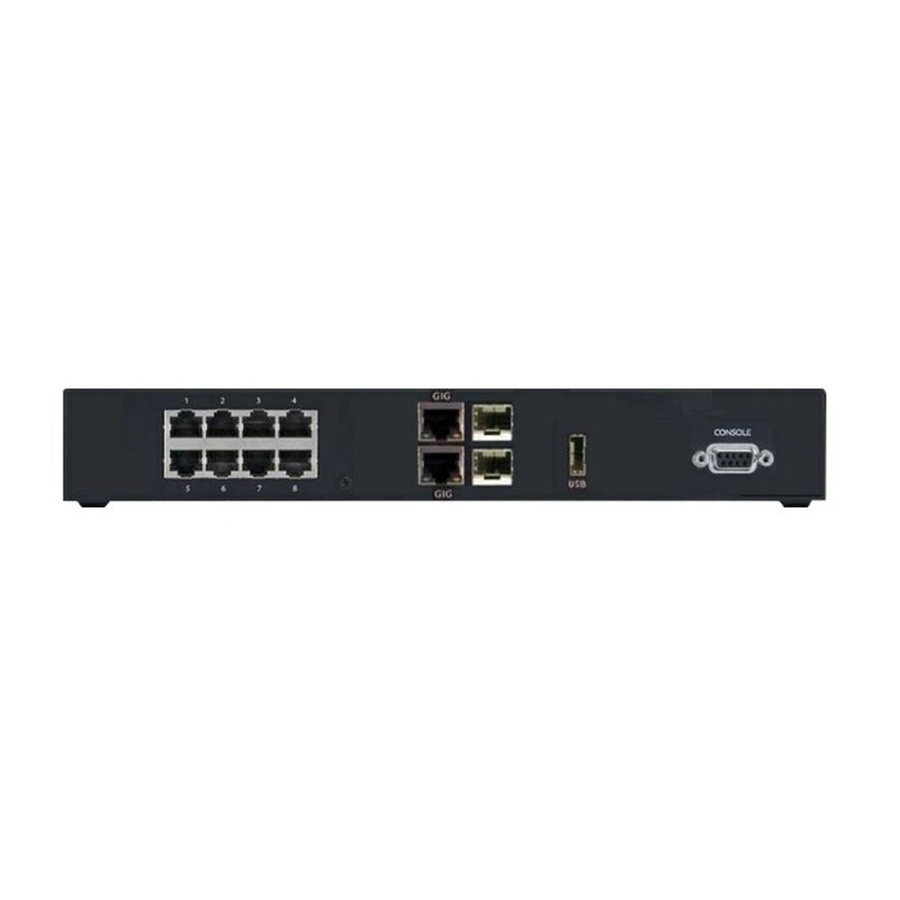

1. Connect the router to your PC using the GIG 0/1 Gigabit Ethernet port on the front of the
device.
2. Set your PC to a fixed IP address of 10.10.10.2. To change your PC IP address, navigate to
Computer > Control Panel > Network Connections > Local Area Connection >
Properties > IP (TCP/IP) and select Use this IP Address. Enter these parameters:
■ IP Address: 10.10.10.2
■ Subnet Mask: 255.255.255.0
■ Default Gateway: 10.10.10.1
You do not need to enter any DNS server information. After the information is entered,
select OK twice, and close the Network Connections dialog box. If you cannot change the
PC's IP address, you will need to change the unit's IP address using the CLI. (Refer to the
next two sections for instructions).
3. Open a web browser and enter the unit's IP address in your browser address line as
follows: http://10.10.10.1. The default IP address is 10.10.10.1, but if you had to change
the unit's IP address using the CLI, enter that address in the browser line.
4. The initial GUI screen appears.

Connect via the DHCP Client Address

1. Connect the router to an existing network that supports DHCP using the GIG 0/1 Gigabit
Ethernet port on the front of the device. The NetVanta unit will automatically request an IP
address assignment from the DHCP server.
2. Check the DHCP server and record the IP address assigned to the NetVanta unit.
617004148F1-13B
NetVanta
NetVanta 3148/4148 Router
GUI
August 2020
617004148F1-13B
P/N: 17003148F1
17004148F1
17003148F11
17004148F11
1
