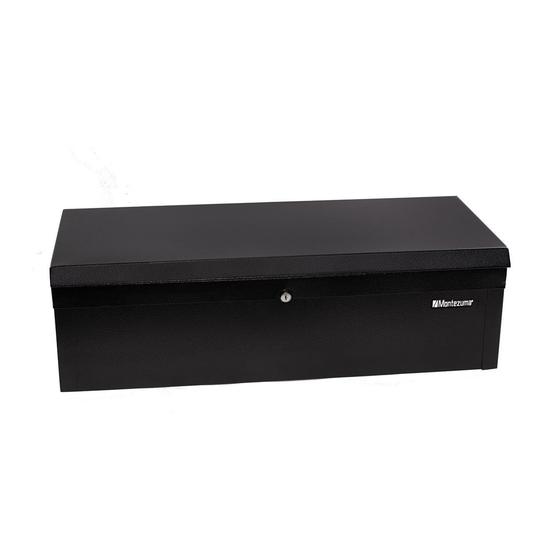

- Page 1 OWNER'S MANUAL STEEL UTILITY BOXES MKDB30B/MKDB36B/MKDB42B/MKDB47B www.montezumastorage.com...
- Page 2 LIFE ORGANIZED Montezuma is committed to helping you succeed in both your work and personal life by being organized, prepared and equipped with the right tools, gear and home supplies at your finger tips. Keep your life organized with Montezuma.
-
Page 3: Specifications
SPECIFICATIONS 30" STEEL UTILITY BOX MKDB30B OVERALL DIMENSIONS: 30" W x 12-5/8" D x 8-7/8" H (76.2 cm W x 32 cm D x 22.4 cm H) 36" STEEL UTILITY BOX MKDB36B OVERALL DIMENSIONS: 36" W x 14-1/4" D x 10-5/8" H (91.4 cm W x 36.1 cm D x 26.9 cm H) -
Page 4: Parts List
PARTS LIST REF DESCRIPTION PART NUMBER SIDE HANDLE ASSEMBLY 122371 1 x Side Handle 4 x M6 Flange Nut 4 x M6 x 12 Hex Bolt LOCK ASSEMBLY 122372 1 x Lock Body 1 x M18 Hex Nut 1 x Locking Cam 1 x M5 x 6 Screw M8 Flange Nut 122373... - Page 5 Side Handle Assembly Includes side handle and hardware for installing (4 x M6 Flange Nut and 4 x M6 x 12 Hex Bolt) Lock Assembly Includes lock body and hardware for installing (1 x M18 Hex Nut, 1 x Locking Cam and 1 x M5 x 6 Screw) M8 Flange Nut Metal Washer...
- Page 6 ASSEMBLY Place the bottom panel with the edges facing up, as shown below. Insert the squares tabs on the right side panel into the corresponding holes in the back panel. Then, insert the half moon tabs in the front and right side panels into the corresponding holes in the bottom panel.
- Page 7 Repeat to attach the front and left side panels. Place the lid on the assembled body and press down to attach it to all four of the body panels. Gently tap the half moon tabs with a rubber mallet until they are fully engaged. ATTENTION: Make sure the tabs are completely inserted in the holes to prevent them from coming apart when box is loaded.
- Page 8 Attach each side handle using four (4) M6 x 12 hex bolts and M6 flange nuts. To assemble the lock, place the lock body in the opening on the front of the utility box. Thread the M18 hex nut onto the lock body, and tighten until the lock is secured against the front of the utility box.
- Page 9 NOTE: You may need two people to to complete this step with larger utility boxes. Lay the box on its back with the lid open. Line up the steel feet with the holes in the bottom panel. Insert the M8 x 16 hex bolts through the metal washers, the bottom inside of the utility box and then through the steel feet on the other side of the panel.
-
Page 10: Maintenance
MAINTENANCE Regularly check the swing-up side handles to make sure they are secure. SAFETY CAUTION Make sure the weight of the contents is distributed evenly. 30" UTILITY BOX: The maximum product weight, including contents, is 150 lb (68 kg). 36" UTILITY BOX: The maximum product weight, including contents, is 300 lb (136 kg). 42"... - Page 11 This product is warranted to be free from defects in materials and workmanship for a period of one (1) year from the date of original purchase. If this product is defective, email service@montezumastorage.com or call 1-800-459-4409 (Monday–Friday, 8:00 am–4:30 pm, CST). If the product is defective, we will replace the defective part at no cost to you.
- Page 12 Manufactured by: QUALITY CRAFT Romeoville, IL 60446 service@montezumastorage.com 1-800-459-4409 (Monday to Friday, 8:00 am–4:30 pm, CST) Made in China www.montezumastorage.com FORM#: MKDB-04/20...
