Montezuma 5624BNC Owner's Manual

56" x 24" workbench with bamboo worktop

Advertisement

Quick Links

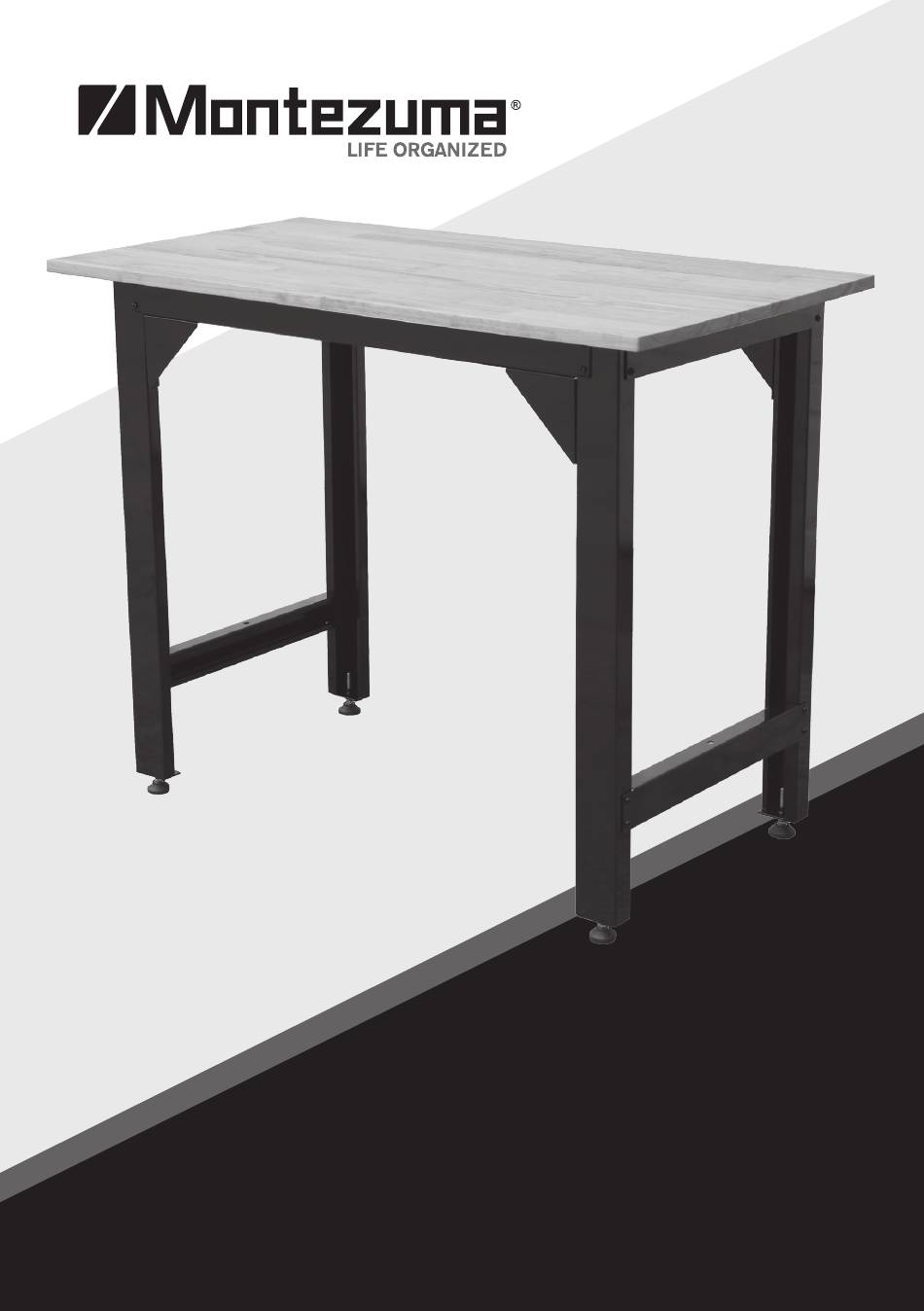

OWNER'S MANUAL
56" X 24"
WORKBENCH WITH
BAMBOO WORKTOP
5624BNC
www.montezumastorage.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5624BNC and is the answer not in the manual?

Questions and answers

Summary of Contents for Montezuma 5624BNC

  • Page 1 OWNER'S MANUAL 56" X 24" WORKBENCH WITH BAMBOO WORKTOP 5624BNC www.montezumastorage.com...
  • Page 2 LIFE ORGANIZED Montezuma is committed to helping you succeed in both your work and personal life by being organized, prepared and equipped with the right tools, gear and home supplies at your finger tips. We are here to ensure that your life is organized.
  • Page 3 SPECIFICATIONS MAXIMUM PRODUCT WEIGHT (INCLUDING CONTENTS): 500 kg (1102 lb) 56" x 24" WORKBENCH WITH BAMBOO TOP 5624BNC OVERALL DIMENSIONS: 55-5/8" W x 23-5/8" D x 36-1/4" H (141.2 cm W x 60 cm D x 92 cm H)
  • Page 4 PARTS LIST REF DESCRIPTION PART NUMBER M6 x 16 mm Hex Socket Head Screw 320327 Adjustable Leveling Feet 110068 To order replacement parts, email service@montezumastorage.com or call 1-800-459-4409 (Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready. Replacement keys may be ordered using the code that appears on the face of the lock.
  • Page 5 FRAME ASSEMBLY Assemble one end of the workbench by attaching (2) short cross braces to (1) Post A and (1) Post B using (4) M6 x 16 mm hex socket head screws per cross brace. See Figure 1. Screw (2) leveling feet into the bottom of the Figure 1 legs.
  • Page 6 WORKTOP INSTALLATION Lay the bamboo worktop upside down on a soft mat for protection. Place the assembled frame upside down on the worktop. The bamboo worktop should be flush with the back of the frame. Attach the frame to the worktop using (8) M6 x 16 mm hex socket screws.
  • Page 7 MAINTENANCE Periodically clean the frame and wood top with mild detergent and water. Grease and oil can be removed from the steel portions of the workbench using most standard cleaning fluids. For safety, use a nonflammable cleaning fluid. SAFETY DO NOT stand or lean on the work top. DO NOT mount this product on a truck bed or any other moving object.
  • Page 8 Manufactured by: QUALITY CRAFT Surrey, BC, Canada V3S 5N4 service@montezumastorage.com 1-800-459-4409 (Monday to Friday, 8:00 am–4:30 pm, CST) Made in China www.montezumastorage.com 5624BNC _09/19...
