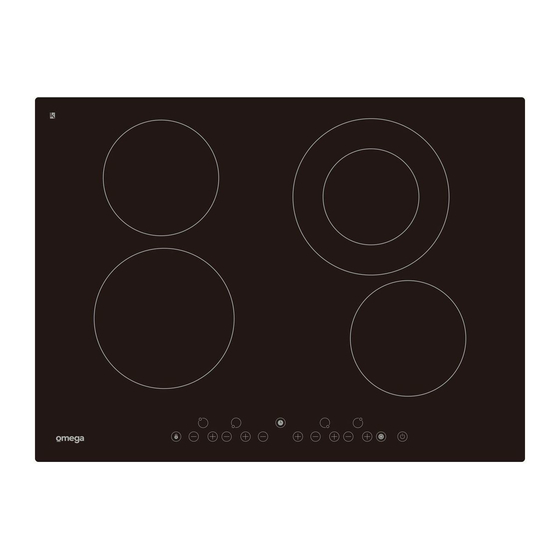

- Page 1 Instruction Manual Ceramic Cooktop OCC70TZ...
- Page 2 Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Omega caters to style-savvy customers who look for balance between stunning form and clever function.
-
Page 3: Table Of Contents
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice. -
Page 4: Important Safety Warnings
• If the supply cord is damaged, it must be replaced by the authorised Omega service center in order to avoid a hazard. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric •... -
Page 5: Product Details
Product Details The microcomputer ceramic cooker hob can meet different kinds of cuisine demands because of resistance wire heating, micro- computerized control and multi-power selection, really the optimal choice for modern families. The ceramic cooker hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life. -
Page 6: Installation Instructions
Installation Instructions Selection of Installation Equipment Drill holes on the table surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the table surface is at least 30mm. Please select heat-resistant table material to avoid larger deformation caused by the heat radiation from the hotplate. - Page 7 Installation Instructions Fix the hob on the table by screw four brackets on the bottom of hob (see picture) after installation. Adjust the bracket position to suit for different table top thickness. Caution The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service.
- Page 8 Installation Instructions Connection to power supply The socket should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown in the figures below: If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
-
Page 9: Operating Instructions
Operating Instructions Preparation Before Use When the power is switched on, the buzzer will sound once and all the indicators will come on for one second and go out. The hob is now in standby mode. Place the pan in the centre of the cooking zone. Press the “... - Page 10 Operating Instructions Double Zone Function Activating the double zone: If you want to use the larger heating zone, press the “ ” button when the hob is in working mode. Deactivating the double zone: Press the “ ” when the hob is working with double zone. Note: This function is available only in the right rear heating zone.
-
Page 11: Cleaning And Maintenance
Cleaning and Maintenance You can easily clean the surface of the ceramic cooker hob if following the methods given in the table below. Note: Please disconnect power before the cleaning. Type of Method of cleaning Articles used for cleaning contamination Light Clean with hot water and damp sponge Cleaning sponge... -
Page 12: Australian & New Zealand Product Warranty Statements Of Standard Warranty Conditions
The Damage which occurs during delivery or installation. product will be repaired or replaced at the option of Omega, and 10. Claims to product surface coating due to liquid or solid all costs of installation, removal, cartage, freight travelling spill-overs, accidental damage or damage caused from expenses and insurance are to be paid by the customer.
