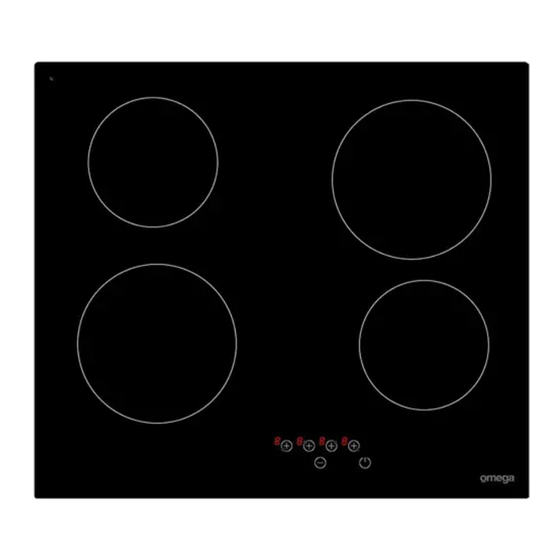

- Page 1 Instruction Manual Product Type Ceramic Cooktop OCC64TZW...
- Page 2 Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Omega caters to style-savvy customers who look for balance between stunning form and clever function.
-
Page 3: Table Of Contents
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice. -
Page 4: Important Safety Warnings
IMPORTANT SAFETY WARNINGS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 5: Appliance Details
29. WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire. APPLIANCE DETAILS ELECTRICAL DETAILS: COOKTOPS: Rated Voltage: 220-240Vac 50Hz OCC64TZW- 5400-6600W COOKTOP – Directly wired to mains supply This information can be found on the rating plate (identification plate) affixed to the underside of the appliance. SIZES: Relevant Sizes:... -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by a licensed electrician and carried out according to instructions provided by the manufacturer. Incorrect installation might cause harm and damage, for which the manufacturer accepts no responsibility. ELECTRICAL INSTALLATION Before carrying out the connection to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the cooktop’s power rating (also indicated on the identification plate). -
Page 7: Installation
INSTALLATION The adjacent furniture must be able to withstand a minimum temperature rise of 90°C above the ambient temperature of the room it is located in, during periods of use. The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it. PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical cooktop will meet your needs in all respects. - Page 8 INSTALLATION INSTALLATION OF BUILT IN COOKTOP • Cut the aperture dimensions as indicated in the figure. Locate the aperture on the worktop so that, after the hob is installed, the following requirements are followed. B (mm) min. A (mm) T (mm) min.
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS The basic layout of the cooktop is as shown. A) 1200W (at 230V) cooking zone (Ø145mm) B) 1800W (at 230V) cooking zone (Ø180mm) C) 1800W (at 230V) cooking zone (Ø180mm) D) 1200W (at 230V) cooking zone (Ø145mm) The cooktop appliance is operated by touching buttons, with the functions confirmed by LED displays and acoustic signals. - Page 10 OPERATING INSTRUCTIONS The buttons must be pressed within 3 seconds of selecting a heater, otherwise the heater selection will be erased and the heat setting decimal point will disappear. If there is no further operation within 10 seconds, the heater reverts back to S-Mode. The heat setting can always be changed by pressing “+”...
- Page 11 OPERATING INSTRUCTIONS Key Lock The key lock function is used to set ‘safe mode’ on the appliance and can only be used in Operating Mode (B-Mode). The lock function becomes active when the key Lock button is pressed for at least 2 seconds. This operation is acknowledged by a buzzer and the Key Lock Indicator will flash to indicate the heater is locked.
- Page 12 OPERATING INSTRUCTIONS Touch Control Safety Functions The following safety functions are available to avoid unintended operations. Sensor Safety Cut-Off Button monitoring is included to prevent the appliance from unwanted button operation. In cases where one or more buttons are pressed for longer than 12 seconds, the buzzer will sound for ten minutes to indicate an incorrect operation.
- Page 13 OPERATING INSTRUCTIONS Operating Time Limitations The hob control unit has a limitation on the operating time. If the heat setting for a heater has not been changed for a certain time, the heater will switch off automatically. A “0” will be displayed for 10 seconds, however there may be some residual heat present.
-
Page 14: Cleaning
CLEANING NOTE: Cleaning and maintenance operations must only be carried out when the cooktop is cool (all residual heat indicators are off). The appliance should be disconnected from the power outlet or turned off at your isolation switch before commencing any cleaning process. Do not use plastic, plastic coated or aluminium cooking equipment on this appliance CLEANING THE COOKTOP... -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO The cooktop doesn’t The cooktop is not wired in or switched Switch on at the wall. work. on at the wall. There is a power failure. Check power supply. The hob switches off The controls are damp or an object is Dry the controls or remove the while it is in use and an... -
Page 16: New Zealand Product Warranty Statements Of Standard Warranty Conditions
WHAT IS COVERED: By Our Warranty During the warranty period, Omega or its authorized Service Centre will, at no extra charge, if your appliance is readily accessible without the need of special equipment and subject to the terms and conditions of this warranty, repair or replace any parts which it considers defective.
