MANUAL PIEZOELECTRIC SENSOR FORCE TEST

The manual piezoelectric sensor force test
Basic and Device Force. The operator must physically
press on the sensor(s) being tested in order for the
Sensor Tester to evaluate if the sensor is detecting force.
NOTE The application will time out if no signal is
received from the sensor within a specified length of time;
be ready to apply force to the sensor(s).
RJG, INC. SENSOR PRECHECK | OVERVIEW
tests for
1
1

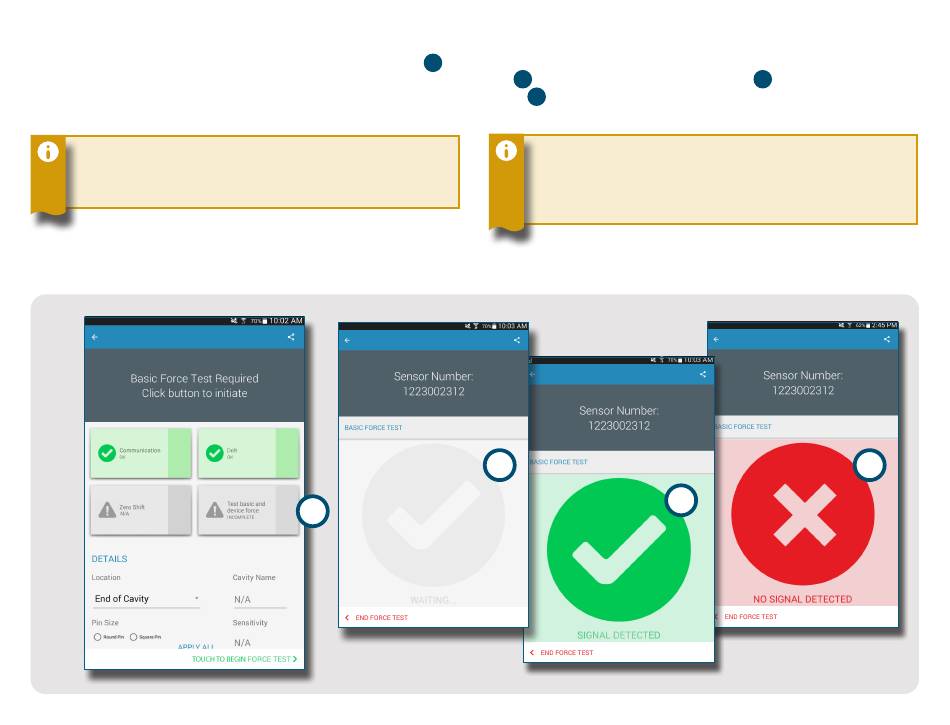

The manual piezoelectric sensor force test will display
a test in progress page, then a
2
OR No Signal Detected
4
signal is or is not detected.
NOTE Do not move the sensor adapter cable during
multi‑channel piezoelectric sensor testing. Moving the
sensor adapter cable during multi‑channel piezoelectric
sensor testing will create false test results.
2
Signal Detected
3
screen to indicate if a sensor
3
4
