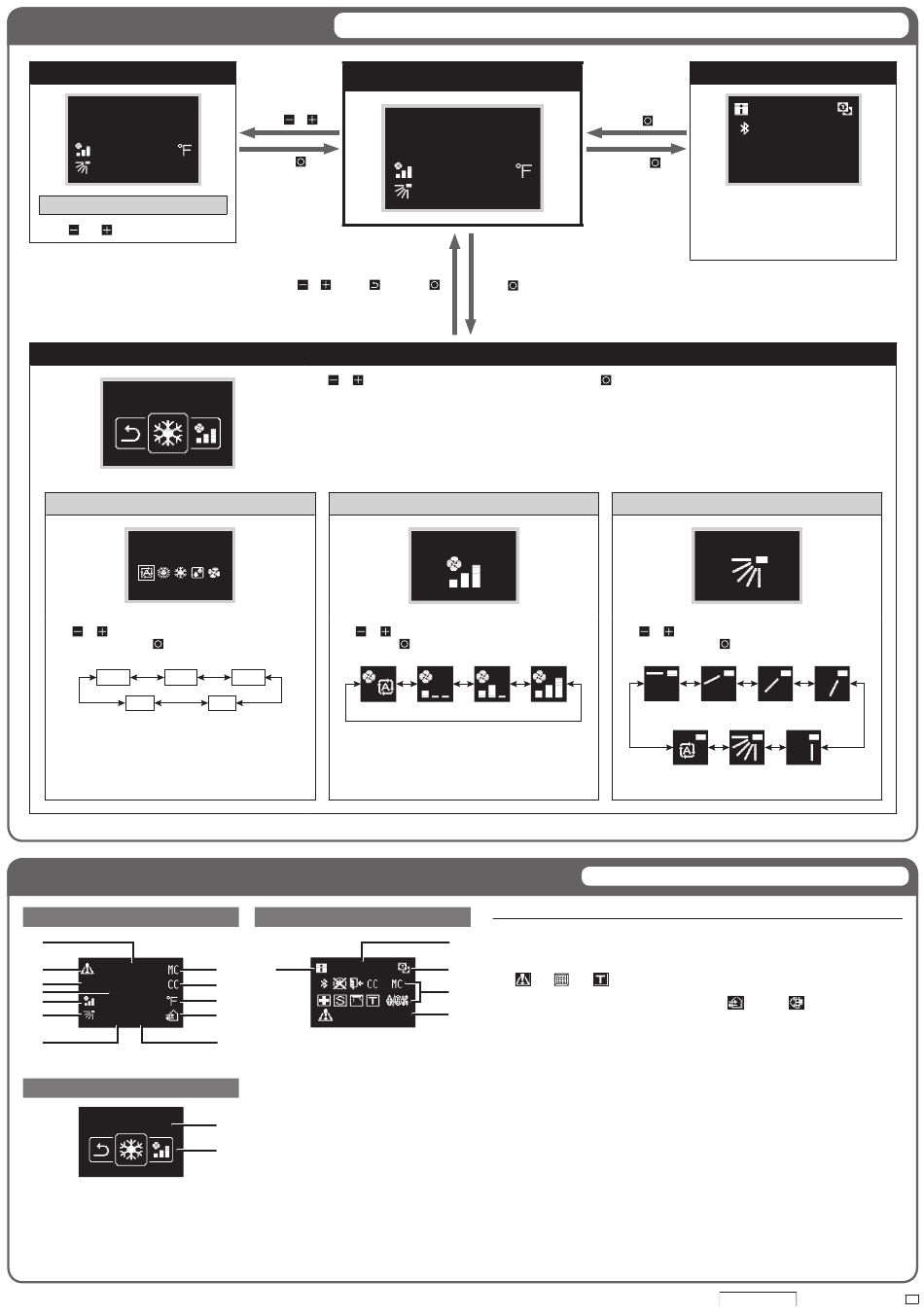

Overview of screens

Change setpoint screen
Auto Cool
74
Set
Raise/lower the temperature
Press and .
Operation Mode
Changing the operation mode
Auto
Use or to select the operation mode you want to
change to, then press .
Auto Heat
Fan

Names and Functions

Home screen
a
b Auto Cool
73
c
Room
d
e
f
STANDBY SETBACK
g
User menu
Operation Mode
The descriptions in this section are just examples. The items available for setting vary depending on the indoor unit you are using.
If there is no button operation for about 10 seconds, the screen returns to the home screen.
Press or .
Press .
Use or to select , then press
Use or to select the icon you want to change to, then press
You can change fundamental functions such as the operation mode, fan speed, airflow, brightness of Status indicator (LED), and
Fahrenheit/Celsius display.
Use or
to, then press
Cool
Dry
Auto
Information screen
m 12:34
h
i
j
k
A3-01 (Unit 00)
l
r
s
Home screen
Auto Cool
73
Room
. Press .
User menu
Changing the fan speed
to select the fan level you want to change
.
Low Medium High
Screen display explanation
a Operation mode/OFF display
n • Displays the operation status.
b Error/Filter/Test icon
o
• Error, filter and test icons are displayed.
:Error
p
c Room/Set
• Indicates whether it's a room temperature
q
display (Room) or setpoint display (Set).
d Room temperature/Set temperature
• Displays the current room or setpoint
temperature.
e Fan speed
• Displays the set fan speed.
f Airflow direction
• Displays the set airflow direction.
g STANDBY
• Displays during defrost/hot start.
h Changeover controlled by the master
indoor unit
• Displayed when another indoor unit on the
system has the authority to change the
operation mode between cool and heat.
i Under centralized control
• Displayed if the system is under the
management of a multi-zone controller
(Optional) and the operation of the system
through the remote controller is limited.
.
Press
Press and hold for
5 seconds.
The list of indoor unit functions, current
time, and error codes, etc. are displayed
as icons.
For the meaning of each icon, refer to
the front side of this sheet.
.
Changing the airflow direction
Use or to select the airflow direction you want to
change to, then press .
Position 0 Position 1
Auto Swing
Depending on the connected model, some items may not be displayed.
j Fahrenheit/Celsius
• Depending on the setting, Fahrenheit/
Celsius display can be selected.
k Ventilation operation/Air Purify
:Filter :Test • Displayed when a Heat Reclaim Ventilator
is connected.
:Ventilation
l Setback
• Blinks during setback operation.
• Displayed during setback setting.
m Information icon
n Clock (24 hours time display)
o MAIN/SUB remote controller sign
p Status
• Notifies the status.
q Error display
• If an error occurs, the icon, an error code
and unit number are displayed.
r Settings menu name
s Settings menu icon
3P607381-1 EM19A030
Information screen
12:34
Position 2 Position 3
Position 4
:Air Purify
