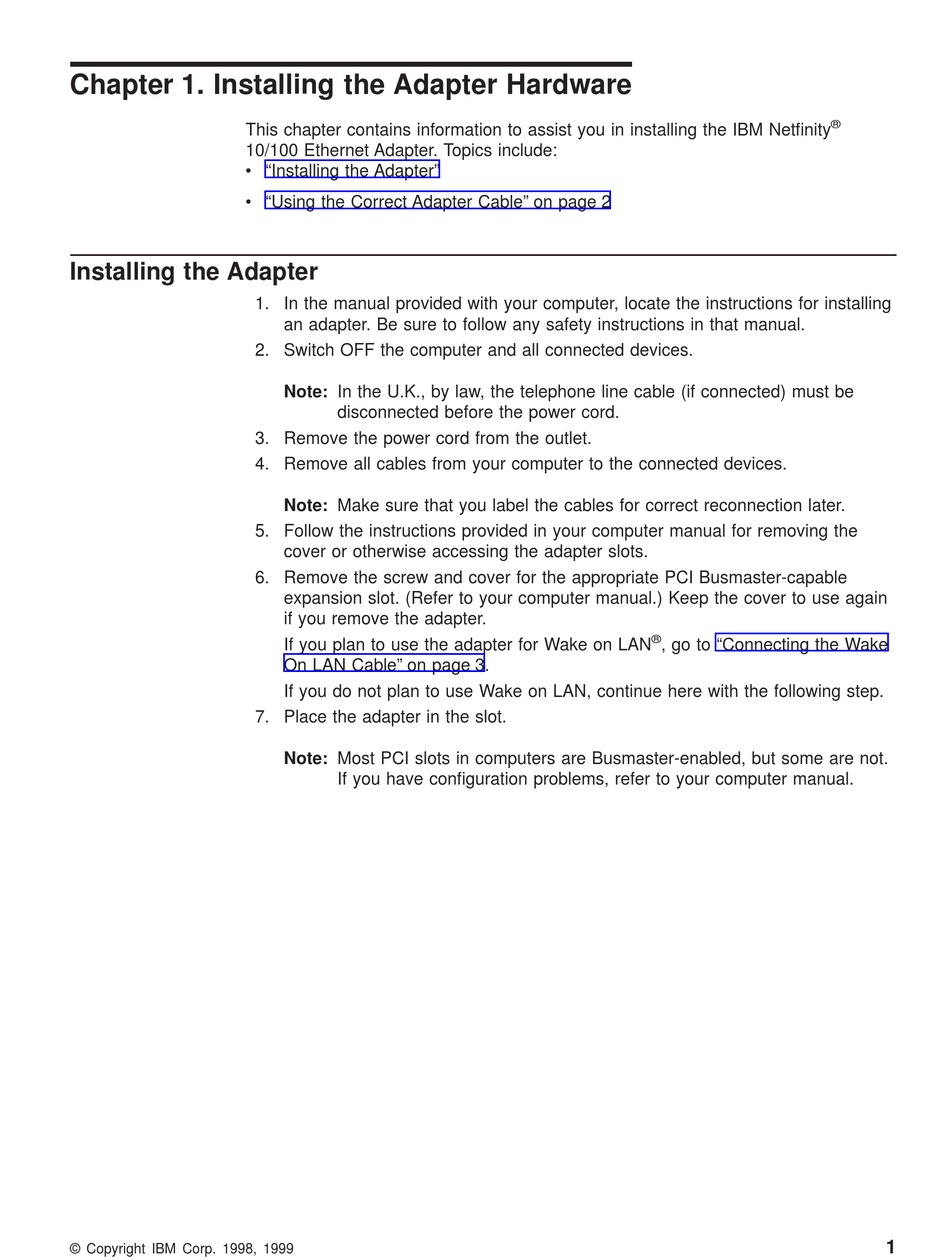

Chapter 1. Installing the Adapter Hardware

This chapter contains information to assist you in installing the IBM Netfinity
10/100 Ethernet Adapter. Topics include:
v "Installing the Adapter"
v "Using the Correct Adapter Cable" on page 2

Installing the Adapter

© Copyright IBM Corp. 1998, 1999
1. In the manual provided with your computer, locate the instructions for installing
an adapter. Be sure to follow any safety instructions in that manual.
2. Switch OFF the computer and all connected devices.
Note: In the U.K., by law, the telephone line cable (if connected) must be
disconnected before the power cord.
3. Remove the power cord from the outlet.
4. Remove all cables from your computer to the connected devices.
Note: Make sure that you label the cables for correct reconnection later.
5. Follow the instructions provided in your computer manual for removing the
cover or otherwise accessing the adapter slots.
6. Remove the screw and cover for the appropriate PCI Busmaster-capable
expansion slot. (Refer to your computer manual.) Keep the cover to use again
if you remove the adapter.
If you plan to use the adapter for Wake on LAN
On LAN Cable" on page 3.
If you do not plan to use Wake on LAN, continue here with the following step.
7. Place the adapter in the slot.
Note: Most PCI slots in computers are Busmaster-enabled, but some are not.
If you have configuration problems, refer to your computer manual.
®
®
, go to "Connecting the Wake
