Miles Industries Valor G3.5 Installation Manual

Installation MANUAL
Four-sided Floating Trims 713FFB / FFV
Approved for use with Valor G3.5 700 Heater Models ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.
The 713 Floating trim is intended to be used on Valor
!
heater model 700.
Please note the appliance will have to be raised
by 3-7/8" (59 mm) when using the 713 4-Sided
Floating trim as the trim extends below the
bottom of the appliance.

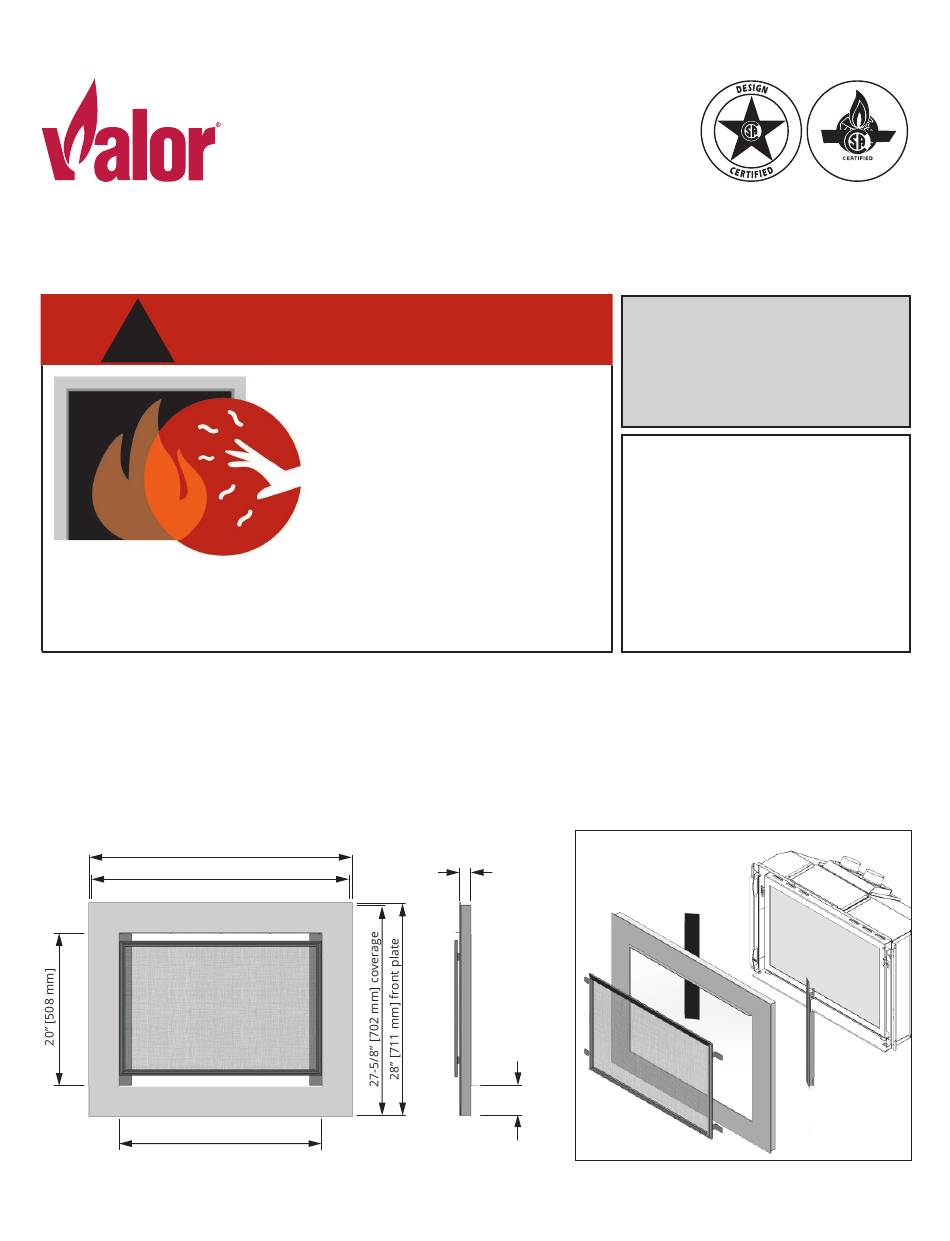

34-1/2" [876 mm] front plate
33-3/4" [857 mm] coverage
26-5/8" [676 mm]
4003866-06
© Copyright Miles Industries Ltd., 2020
G3.5
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Depth
1-1/2"
[38 mm]
Trim extends BELOW
bottom of appliance by 3-7/8" [99 mm]
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
Note: This kit must be
installed or serviced by a
qualified installer, service
agency or gas supplier. These
instructions are to be used
in conjunction with the main
installation instructions
for the above listed heater
model.
Mounting of the 713 does not affect clearances or other
specifications listed in the heater installation manuals.
700 engine
!

Overview

1
