SmartRelais 2
Code
YL
GN
GY
WH
BN
F1
EN
1
2
3
4
5
Position
Connection of an external antenna: Yellow cable
Connection of an external antenna Green cable
Connection of an external antenna: Grey cable
Connection of an external antenna: White cable
Connection of an external antenna: Brown cable
Functions connection 1: Possible functions
Omron Output
Wiegand CLS
Input (ext. trigger 3-24 V
6
7
8
9
1
via isolated contacts)
DC

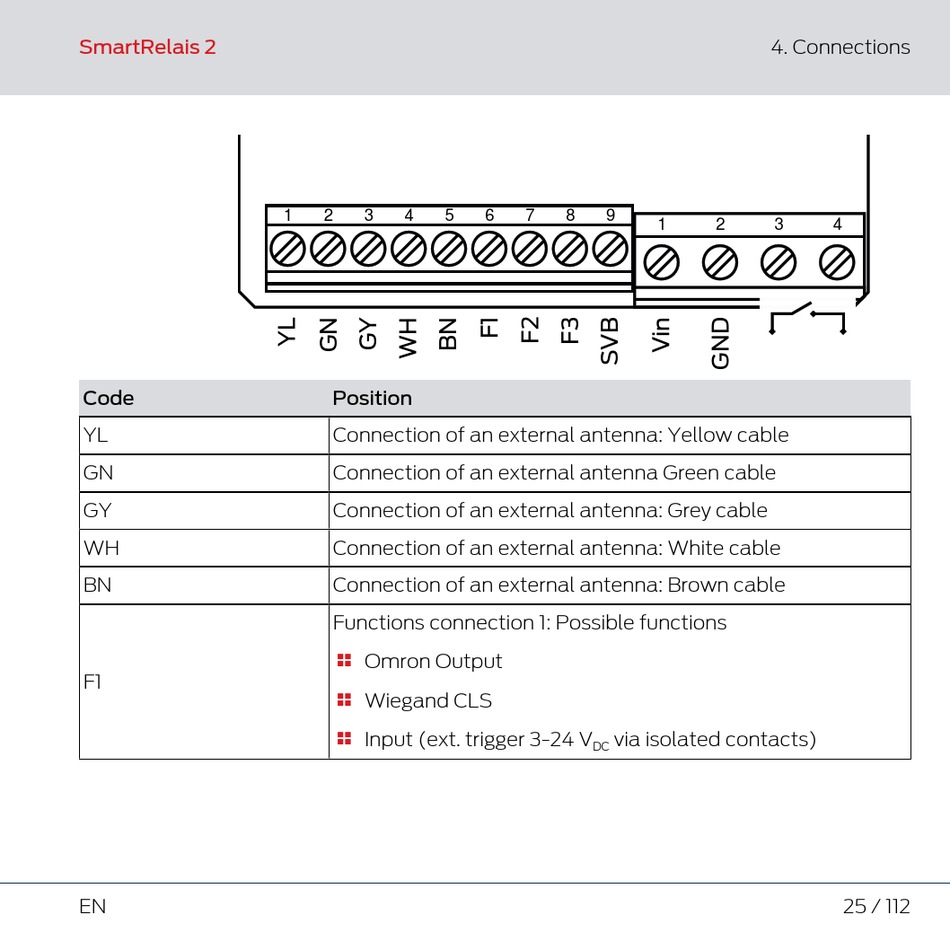

4. Connections
2
3
4
25 / 112
