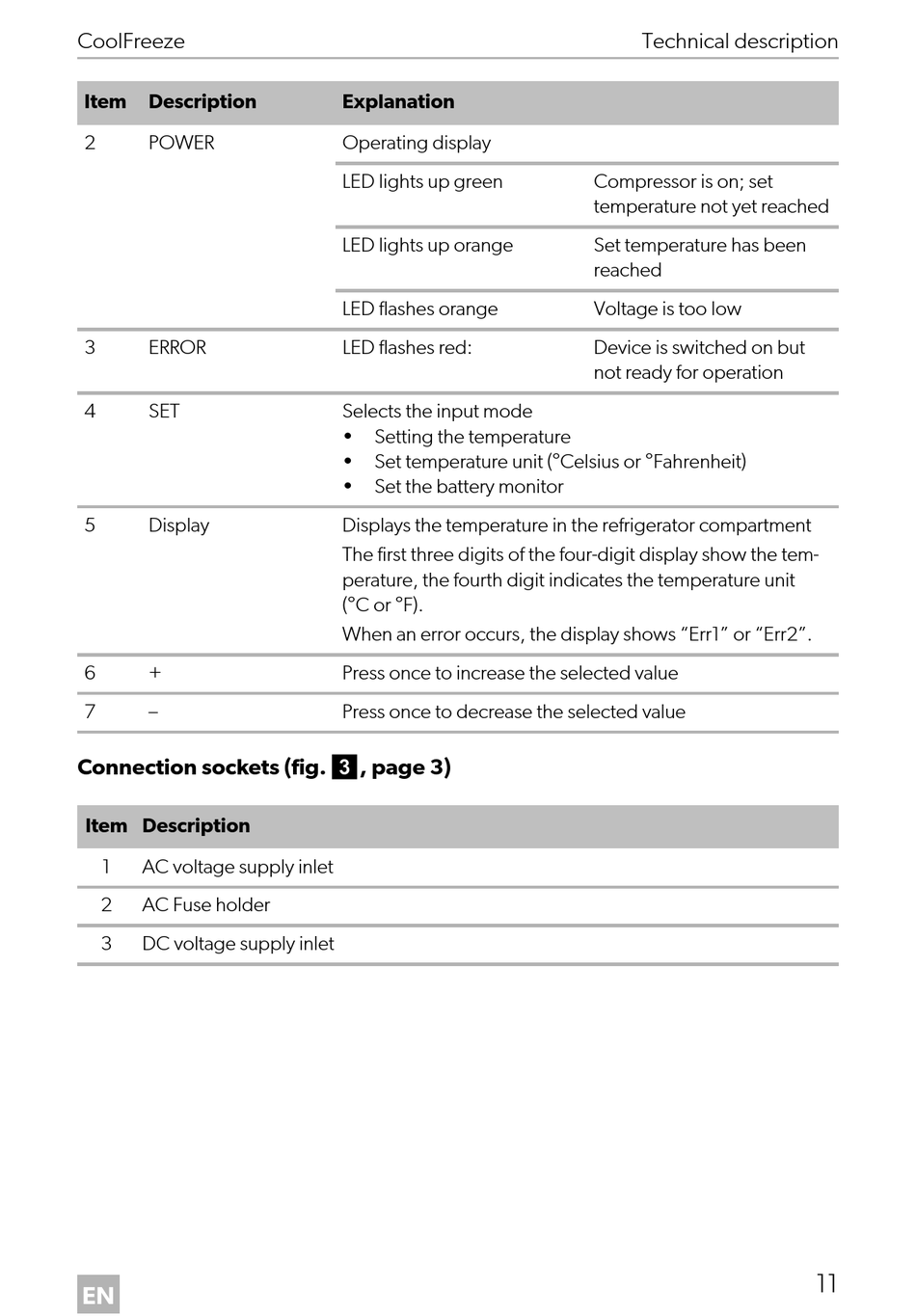

Dometic CF Series Operating Manual page 11

CoolFreeze
Item Description
2 POWER
3 ERROR
4 SET
5 Display
6 +
7 –
Connection sockets (fig. 3, page 3)
Item Description
1 AC voltage supply inlet
2 AC Fuse holder
3 DC voltage supply inlet
EN
Explanation
Operating display
LED lights up green
LED lights up orange
LED flashes orange
LED flashes red:
Selects the input mode
• Setting the temperature
• Set temperature unit (°Celsius or °Fahrenheit)
• Set the battery monitor
Displays the temperature in the refrigerator compartment
The first three digits of the four-digit display show the tem-
perature, the fourth digit indicates the temperature unit
(°C or °F).
When an error occurs, the display shows "Err1" or "Err2".
Press once to increase the selected value
Press once to decrease the selected value
Technical description
Compressor is on; set
temperature not yet reached
Set temperature has been
reached
Voltage is too low
Device is switched on but
not ready for operation
11
