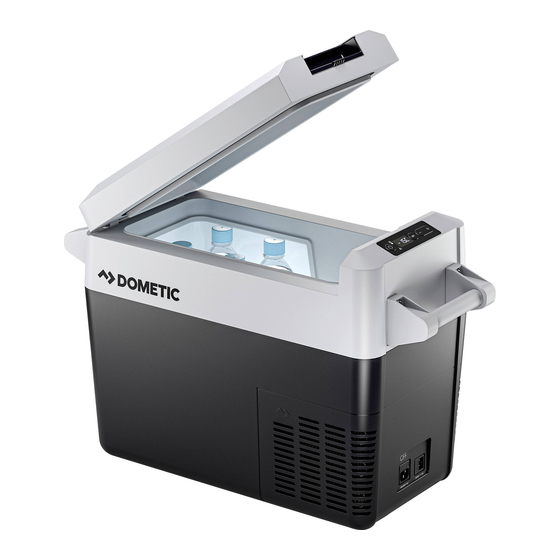

Dometic CFF20 Operating Manual

Compressor cooler
Hide thumbs Also See for CFF20:
Table of Contents

Advertisement

Quick Links

MOBILE COOLING
CFF
CFF20, CFF35, CFF45, CFF70DZ
Compressor Cooler
EN
Operating manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFF20 and is the answer not in the manual?

Questions and answers

Related Manuals for Dometic CFF20

Summary of Contents for Dometic CFF20

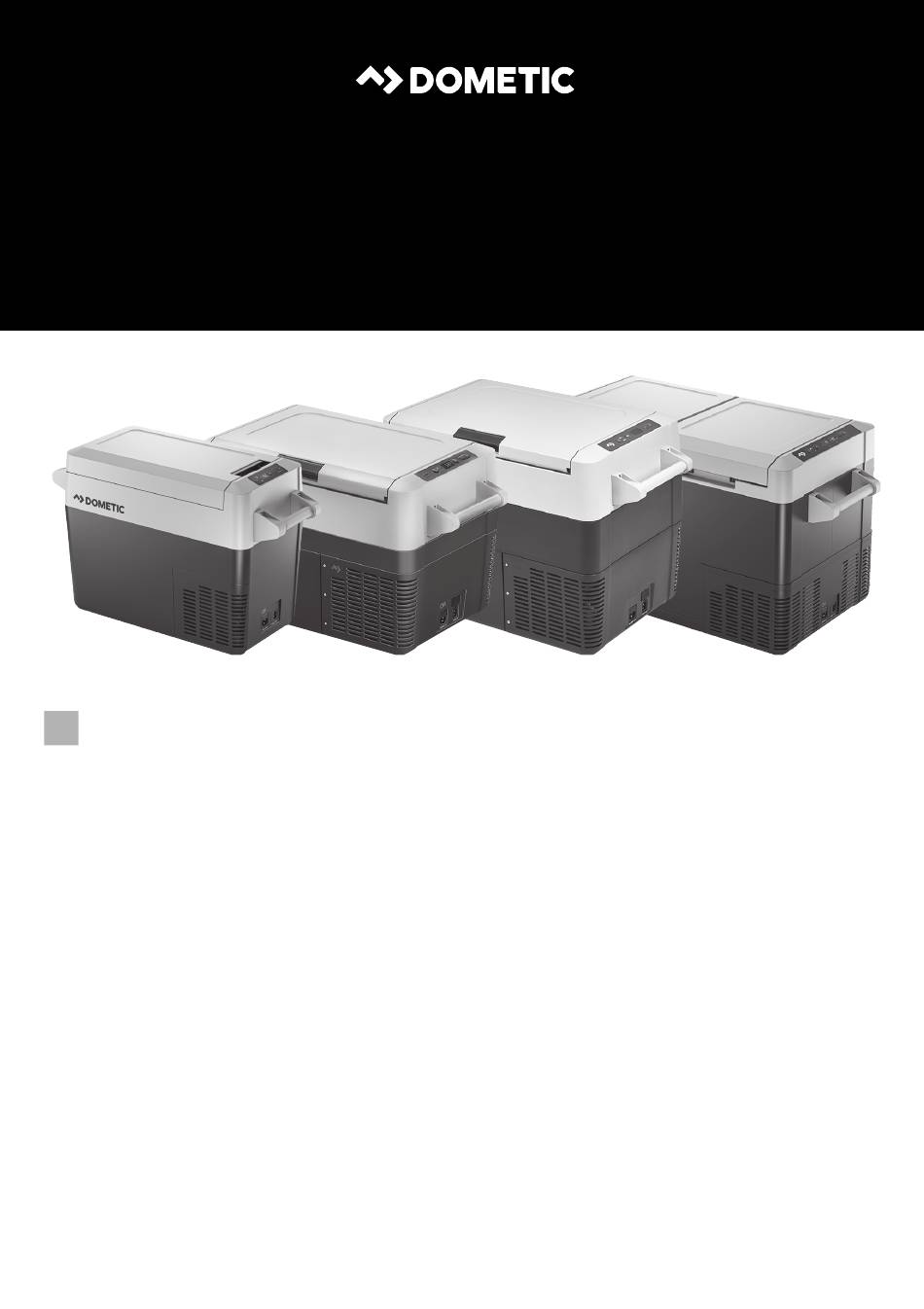

  • Page 1 MOBILE COOLING CFF20, CFF35, CFF45, CFF70DZ Compressor Cooler Operating manual...
  • Page 2 © 2020 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.

  • Page 3: Table Of Contents

    Dometic accepts no liability for any loss, damage or injury incurred, directly or indirectly, from the installation, use or maintenance of the product not in compliance with the instructions and warnings in the product manual.

  • Page 4: Explanation Of Symbols

    Explanation of symbols CFF20, CFF35, CFF45, CFF70DZ Explanation of symbols DANGER! Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury. WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
  • Page 5 CFF20, CFF35, CFF45, CFF70DZ Safety instructions Health hazard • This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
  • Page 6 Safety instructions CFF20, CFF35, CFF45, CFF70DZ NOTICE! Damage hazard • Check that the voltage specification on the type plate corresponds to that of the energy supply. • Only connect the cooling device as follows: – With the DC connection cable to a DC power supply in the vehicle –...

  • Page 7: Scope Of Delivery

    CFF20, CFF35, CFF45, CFF70DZ Scope of delivery Scope of delivery 12/24 V DC 12/24 V DC 100–240 V AC 100–240 V AC CFF20 CFF35, CFF45 CFF70DZ...

  • Page 8: Intended Use

    This product is only suitable for the intended purpose and application in accordance with this instruction. Any other use, deviating from the intended use, is not allowed! Dometic accepts no liability for any loss, damage or injury incurred, directly or indirectly due to other as the intended use.

  • Page 9: Function Description

    CFF20, CFF35, CFF45, CFF70DZ Function description Function description The cooler can chill products, keep them cool as well as freeze them. A low mainte- nance refrigerant circuit with compressor provides the cooling. The generous insu- lation and powerful compressor ensure efficient and fast cooling.
  • Page 10 Function description CFF20, CFF35, CFF45, CFF70DZ Operating and display elements Lid latches CFF20 CFF35, CFF45 CFF70DZ...
  • Page 11 CFF20, CFF35, CFF45, CFF70DZ Function description Operating panel CFF20 ° CFF35, CFF45 ° CFF70DZ Item Description Explanation Switches the cooler on or off when the button is pressed for between one and two seconds “P Status indication POWER ” LED lights up green:...
  • Page 12 Function description CFF20, CFF35, CFF45, CFF70DZ Item Description Explanation Selects the input mode – Temperature setting – Celsius or Fahrenheit display – Set battery monitor – Set brightness of display DOWN – Press once to decrease the value UP +...

  • Page 13: Operation

    CFF20, CFF35, CFF45, CFF70DZ Operation Operation Before initial use NOTE Before starting your new cooler for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 28).
  • Page 14 Operation CFF20, CFF35, CFF45, CFF70DZ Reversing the lid opening ➤ CFF70DZ: To reverse the lid opening, proceed as shown. 180°...
  • Page 15 CFF20, CFF35, CFF45, CFF70DZ Operation Opening or removing the lid CFF20 CFF35, CFF45 CFF70DZ...
  • Page 16 CFF35, CFF45: The lid can be opened from either side. ➤ CFF35, CFF45: To remove the lid, unlatch both sides at the same time (B). CFF20, CFF70DZ: To remove the lid, push the lid beyond the lid stop position (B).
  • Page 17 ➤ Switch on the cooler. ➤ CFF20, CFF35, CFF45: Press the “SET” button (fig. 3 5, page 11) twice. CFF70DZ: Press the “SET” button (fig. 3 5, page 11) three times. ➤ Use the “UP +” (fig. 3 7, page 11) or “DOWN –” (fig. 3 6, page 11) buttons to select Celsius or Fahrenheit.
  • Page 18 Operation CFF20, CFF35, CFF45, CFF70DZ Energy saving tips • Choose a well ventilated location which is protected from direct sunlight. • Allow warm food to cool down first before placing it in the cooling device to keep cool. • Do not open the cooling device more often than necessary.
  • Page 19 CFF20, CFF35, CFF45, CFF70DZ Operation Connecting to an AC power supply (e.g. in the home or office) DANGER! ELECTROCUTION HAZARD Failure to obey these warnings will result in death or serious injury. • Never handle plugs and switches with wet hands or if you are stand- ing on a wet surface.
  • Page 20 ➤ Switch on the cooler. ➤ Press the “SET” button (fig. 3 5, page 11): – CFF20, CFF35, CFF45: Three times. – CFF70DZ: Four times. ➤ Use the “UP +” (fig. 3 7, page 11) or “DOWN –” (fig. 3 6, page 11) buttons to select the battery monitor mode.
  • Page 21 CFF20, CFF35, CFF45, CFF70DZ Operation NOTE When the cooler is supplied by the starter battery, select the battery monitor mode “HIGH”. If the cooler is connected to a supply battery, the battery monitor mode “LOW” will suffice. Using the cooler...
  • Page 22 Operation CFF20, CFF35, CFF45, CFF70DZ Latching the cooler lid ➤ Close the lid. ➤ Press the latch (fig. 2, page 10) down, until it latches in place audibly. NOTE CFF35, CFF45: When latching the lid, ensure that both latch side pins are fully engaged to ensure a good lid seal.
  • Page 23 CFF20, CFF35, CFF45, CFF70DZ Operation Switching a compartment off or on (CFF70DZ) If only one compartment is required, the other compartment can be switched off to save energy. Switching off a compartment If the display of the compartment shows a temperature, you can switch off the compartment as follows: ➤...
  • Page 24 ➤ Switch on the cooler. ➤ Press the “SET” button (fig. 3 5, page 11): – CFF20, CFF35, CFF45: Four times. – CFF70DZ: Five times. ➤ Use the “UP +” (fig. 3 7, page 11) or “DOWN –” (fig. 3 6, page 11) buttons to set the brightness of the display.
  • Page 25 CFF20, CFF35, CFF45, CFF70DZ Operation 6.10 Defrosting the cooler Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. NOTICE! DAMAGE HAZARD Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.
  • Page 26 Operation CFF20, CFF35, CFF45, CFF70DZ 6.12 Replacing the device DC Fuse ➤ Disconnect the power supply to the device. ➤ Pry out the fuse cover (fig. 4 3, page 12) to access the fuse. ➤ Reverse the fuse cover and use the hook to remove the fuse.
  • Page 27 CFF20, CFF35, CFF45, CFF70DZ Operation 6.14 Replacing the light PCB ➤ Disconnect the power supply to the device. ➤ Pry out the transparent cover with a screwdriver (1). ➤ Unscrew the PCB mounting screws (2). ➤ Pull out the plug from the PCB (3).

  • Page 28: Cleaning And Maintenance

    Cleaning and maintenance CFF20, CFF35, CFF45, CFF70DZ Cleaning and maintenance WARNING! ELECTROCUTION HAZARD Failure to obey this warning could result in death or serious injury. Always disconnect the device from the power supply before you clean and service it. NOTICE! Damage hazard •...

  • Page 29: Troubleshooting

    CFF20, CFF35, CFF45, CFF70DZ Troubleshooting Troubleshooting Fault Possible cause Suggested remedy Device does not No voltage present in Plugged in DC power outlet: In most function, LED does the connected power vehicles the ignition must be turned on not glow.
  • Page 30 Troubleshooting CFF20, CFF35, CFF45, CFF70DZ Fault Possible cause Suggested remedy The display shows an The appliance has This can only be repaired by an error message (e.g. switched off due to an authorised repair center. “Err1”) and the appli- internal fault.
  • Page 31 CFF20, CFF35, CFF45, CFF70DZ Troubleshooting The lid has been forced past the built-in stop (CFF35, CFF45 only) ➤ Support the lid with one hand (A). ➤ Hold the latch down with the other hand (B). CAUTION! HEALTH HAZARD Failure to obey this caution could result in minor or moderate injury.

  • Page 32: Warranty

    Warranty If the product does not work as it should, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). The warranty applicable to your product is 3 year(s). For repair and warranty processing, please include the following documents when you send in the device: •...

  • Page 33: Technical Data

    CFF20, CFF35, CFF45, CFF70DZ Technical data Technical data CFF20 CFF35 Connection voltage: 12/24 Vg 100 to 240 Vw Rated current: 12 Vg: 4.8 A 12 Vg: 7.8 A 24 Vg: 2.8 A 24 Vg: 3.5 A 240 Vw: 0.3 A 240 Vw: 0.4 A...
  • Page 34 Technical data CFF20, CFF35, CFF45, CFF70DZ CFF45 CFF70DZ Connection voltage: 12/24 Vg 100 to 240 Vw Rated current: 12 Vg: 8.6 A 12 Vg: 9.0 A 24 Vg: 3.8 A 24 Vg: 4.0 A 240 Vw: 0.41 A 240 Vw: 0.44 A Cooling capacity: +10 °C to –18 °C (+50 °F to 0 °F)
  • Page 35 CFF20, CFF35, CFF45, CFF70DZ Technical data Test/certificates: Contains fluorinated greenhouse gases Hermetically sealed equipment...
  • Page 36 YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic DOMETIC GROUP AB...
