Summary of Contents for Dometic CF Series

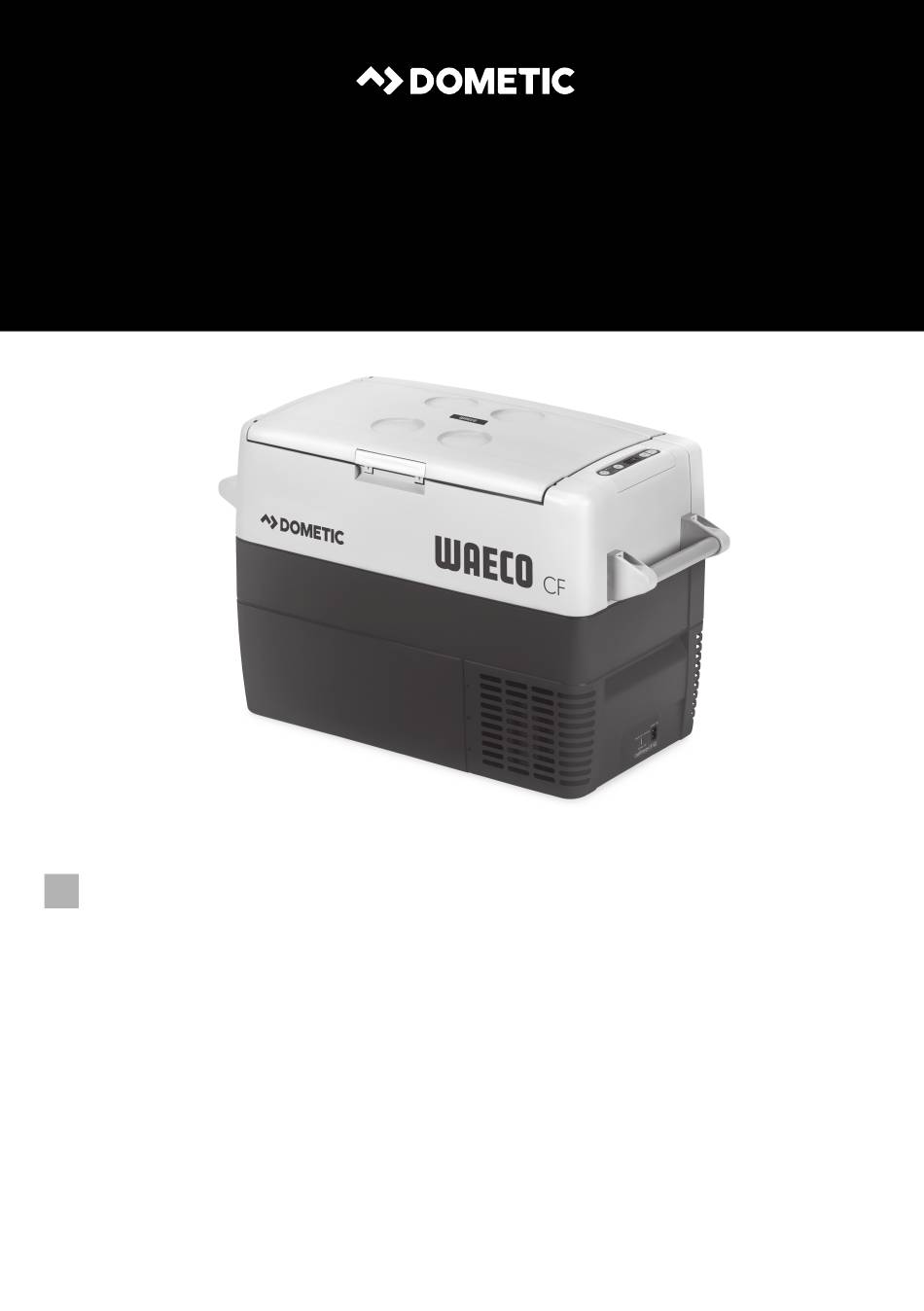

  • Page 1 PORTABLE REFRIGERATION CF SERIES CF50SG Compressor Fridge/Freezer Operating manual...
  • Page 2 © 2020 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
  • Page 3: Table Of Contents

    CF50SG Please read this manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it. The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.
  • Page 4: Explanation Of Symbols

    Explanation of symbols CF50SG Explanation of symbols DANGER! Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury. WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
  • Page 5 CF50SG Safety instructions • This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards. Fire hazard • When positioning the device, ensure the supply cord is not trapped or damaged. • Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device.
  • Page 6 Safety instructions CF50SG • Clean regularly surfaces that can come in contact with food and accessible drainage systems. • Store raw meat and fish in suitable containers in the device, so that it is not in contact with or can drip onto other food. •...
  • Page 7: Scope Of Delivery

    CF50SG Scope of delivery • Do not fill the inner container with ice or fluids. • Never immerse the cooling device in water. • Protect the cooling device and cables against heat and moisture. • Protect the cooling devise from exposure to rain. Scope of delivery Item Quantity...
  • Page 8: Intended Use

    Intended use CF50SG Intended use The cooling device is suitable for cooling and freezing foods. The cooling device is designed to be operated from • a DC on-board power supply of a vehicle, boat or caravan • a DC auxiliary battery •...
  • Page 9: Scope Of Functions

    CF50SG Function description Scope of functions • Power supply with priority circuit for connecting to the power supply • 3-level battery monitor to protect the vehicle battery • Automatic compressor speed control for fast cooling and optimal performance • Display with temperature gauge (switches off automatically at low battery voltage) •...
  • Page 10 Function description CF50SG Item Description Explanation Selects the input mode – Temperature setting – Celsius or Fahrenheit display – Set battery monitor – Display, shows the information UP + Press once to increase the value DOWN – Press once to decrease the value Connection sockets 100-240V~AC 12/24V DC...
  • Page 11: Operation

    CF50SG Operation Operation Before initial use NOTE Before starting your new cooler for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 20). Mounting the handles The handles are enclosed unassembled.
  • Page 12 Operation CF50SG Turning the lid around You can turn the lid around if you want to open the lid from the other side. To do this, proceed as follows: ➤ Open the lid and pull it out (A). ➤ Turn the lid. ➤...
  • Page 13: Energy Saving Tips

    CF50SG Operation Energy saving tips • Choose a well ventilated location which is protected from direct sunlight. • If you want to set an increased energy efficiency and a limited cooling capacity for the cooler device, use the device’s ECO mode. •...
  • Page 14: Using The Battery Monitor

    Operation CF50SG Connecting to an AC power supply (e.g. in the home or office) DANGER! Danger of electrocution! • Never handle plugs and switches with wet hands or if you are standing on a wet surface. • If you are operating your cooler on board a boat from a power supply connection of 100 –...
  • Page 15 CF50SG Operation In “HIGH” mode, the battery monitor responds faster than at the levels “LOW” and “MED” (see the following table). Battery monitor mode HIGH 10.1 V 11.4 V 11.8 V Switch-off voltage at 12 V 11.1 V 12.2 V 12.6 V Restart voltage at 12 V 21.5 V...
  • Page 16: Using The Cooler

    Operation CF50SG Using the cooler NOTICE! Danger of overheating! Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Ensure that the ventilation slots are not covered. The cooler MUST maintain a MINIMUM of 50 mm away from walls or similar surfaces which could restrict important air flow requirements of the cooling system.
  • Page 17: Setting The Temperature

    CF50SG Operation Setting the temperature NOTICE! Danger from excessively low temperature! Ensure that the only those objects are placed in the cooler that are intended to be cooled at the selected temperature. ➤ Press the “SET” button (fig. 2 4, page 9) once. ➤...
  • Page 18: Defrosting The Cooler

    Operation CF50SG Defrosting the cooler Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in good time to avoid this. NOTICE! Danger of damage! Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.
  • Page 19: Replacing The Dc Plug Fuse

    CF50SG Operation 6.11 Replacing the DC plug fuse ➤ Pull the adapter sleeve (4) off of the plug. ➤ Unscrew the screw (5) out of the upper half of the housing (1). ➤ Carefully raise the upper half of the housing from the lower (6) half. ➤...
  • Page 20: Replacing The Light Bulb

    Cleaning and maintenance CF50SG 6.12 Replacing the light bulb ➤ Press the switch pin (2) downwards so that the transparent part (1) of the lamp can be removed at the front. ➤ Replace the light bulb. NOTE The LEDs in the light bulb must be facing the transparent part of the lamp.
  • Page 21: Warranty

    CF50SG Warranty Warranty Comprehensive warranty details for this product are included in the separate War- ranty Certificate. For service or warranty assistance, please contact the manufacturer via details on the back of this operating manual. For warranty and repair processing, please have the following information available: •...
  • Page 22: Disposal

    Disposal CF50SG Fault Possible cause Suggested remedy When operating from The DC outlet is dirty. If the plug of your cooler becomes very the DC outlet: This results in a poor warm in the DC outlet, either the DC electrical contact. outlet must be cleaned or the plug has The ignition is on not been assembled correctly.
  • Page 23: Technical Data

    CF50SG Technical data Technical data CF50SG Connection voltage: 12/24 Vg and 100 – 240 Vw Rated current – 12 Vg: 7.0 A – 24 Vg: 3.0 A – 100 – 240 Vw: 1.3 A to 0.7 A Cooling capacity: +10 °C to –18 °C (+50 °F to –0.4 °F) Gross volume: 48 l Storage volume:...
  • Page 24 DOMETIC Australia PO Box 2495 Burleigh BC QLD 4220 Ph: 1800 21 21 21 (Mon-Fri 8:00am to 5:00pm AEST) Email: qldservice@dometic.com.au 1800 21 21 21 qldservice@dometic.com.au...

This manual is also suitable for:

Cf50sg
