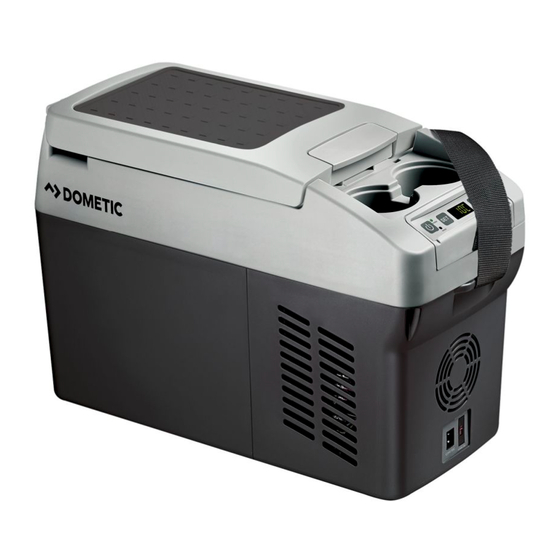

- Page 1 PORTABLE REFRIGERATION CF SERIES CF11 Compressor cooler Operating manual...
-
Page 2: Table Of Contents
CoolFreeze Please read this manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it. The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation. -
Page 3: Explanation Of Symbols
Explanation of symbols CoolFreeze Explanation of symbols WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. - Page 4 CoolFreeze Safety instructions • Always keep and use the cooling device out of the reach of children under the age of 8 years. • Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device. CAUTION! •...
-
Page 5: Scope Of Delivery
Scope of delivery CoolFreeze • Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.). • Danger of overheating! Ensure at all times that there is a minimum of 50 mm ventilation on all four sides of the cooling device. -
Page 6: Technical Description
CoolFreeze Technical description Technical description The cooler can chill products, keep them cool as well as freeze them. A low maintenance refrigerant circuit with compressor provides the cooling. The cooler is portable. For use in vehicles, the cooling device can be secured with a safety belt. The cooler can withstand a short term inclination of 30°, for example on boats. - Page 7 Technical description CoolFreeze Item Description Explanation Selects the input mode • Setting the temperature • Set temperature unit (°Celsius or °Fahrenheit) • Set the battery monitor Display Displays the temperature in the refrigerator compartment The first three digits of the four-digit display show the tem- perature, the fourth digit indicates the temperature unit (°C or °F).
-
Page 8: Operation
CoolFreeze Operation Operation The cooling device is equipped with an LED interior light that remains on when the voltage is applied. The energy consumption of the LED interior light is extremely low and is negligible compared to the total energy consumption of the device. Before initial use NOTE Before starting your new cooler for the first time, you should clean it... - Page 9 Operation CoolFreeze Connecting the cooling device The cooler can be operated with 12 Vg or 24 Vg or 100 – 240 Vw. NOTICE! Danger of Damage! • Disconnect the cooler and other consumer units from the battery before you connect the battery to a quick charging device. •...
- Page 10 CoolFreeze Operation ➤ Plug the DC connection cable (fig. 4 2, page 10) into the DC power supply inlet of the cooler (fig. 2 3, page 8). ➤ Connect the DC connection cable to a DC power outlet. Connecting to an AC power supply (e.g. at home or in the office) DANGER! Danger of electrocution •...
- Page 11 Operation CoolFreeze Switch on the cooling device See fig. 1, page 7 NOTICE! Risk of damage! • Always ensure sufficient ventilation so that the heat generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
- Page 12 CoolFreeze Operation Selecting the temperature unit See fig. 1, page 7 You can switch the temperature display between Celsius and Fahrenheit. To do this, proceed as follows: ➤ Switch on the cooler. ➤ Press the “SET” button (4) twice. ➤ Use the “+” (6) or “–” (7) buttons to set the temperature unit °Celsius or °Fahrenheit.
- Page 13 Operation CoolFreeze Battery monitor mode HIGH 10.1 V 11.4 V 11.8 V Cut-off voltage at 12 V 11.1 V 12.2 V 12.6 V Cut-in voltage at 12 V 21.5 V 24.1 V 24.6 V Cut-off voltage at 24 V 23.0 V 25.3 V 26.2 V Cut-in voltage at 24 V...
- Page 14 CoolFreeze Operation 6.11 Defrosting the cooling device Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in good time to avoid this. NOTICE! Risk of damage to the device! Never use hard or sharp tools to remove ice or to free objects frozen onto the device.
-
Page 15: Cleaning And Maintenance
Cleaning and maintenance CoolFreeze 6.13 Replacing the DC plug fuse ➤ Pull the adapter sleeve (4) off of the plug. ➤ Unscrew the screw (5) out of the upper half of the housing (6). ➤ Carefully lift the upper half of the housing off the lower half (1). ➤... -
Page 16: Troubleshooting
CoolFreeze Troubleshooting ➤ Occasionally clean the device interior and exterior with a damp cloth. ➤ Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged. Troubleshooting Problem Possible cause... -
Page 17: Guarantee
Guarantee CoolFreeze Problem Possible cause Suggested remedy The “ERROR” LED flashes The appliance has This can only be repaired by an and the display shows switched off due to authorised repair centre. “ERR1” or “ERR2”. an internal fault. Guarantee The statutory warranty period applies. If the product is defective, please contact the manufacturer‘s branch in your country (see the back of the operating manual for the addresses) or your retailer. - Page 18 CoolFreeze Technical data Cooling range: +10 °C to –18 °C (+50 °F to –64 °F) Energy efficiency class: Category: Category 1 (refrigerator with one or more fresh-food storage compartments) Climate class: N or T Ambient temperature: +16 °C to+43 °C (+61 °F to +109 °F) Noise emission: 46 dB (A) Gross capacity:...
