Step controller with integrated vernier stage

Advertisement

Quick Links

Pulsed or analog 0 to 10 Vdc vernier stage
8 step models
Up to 16 stage total with a slave unit
Test button
DESCRIPTION

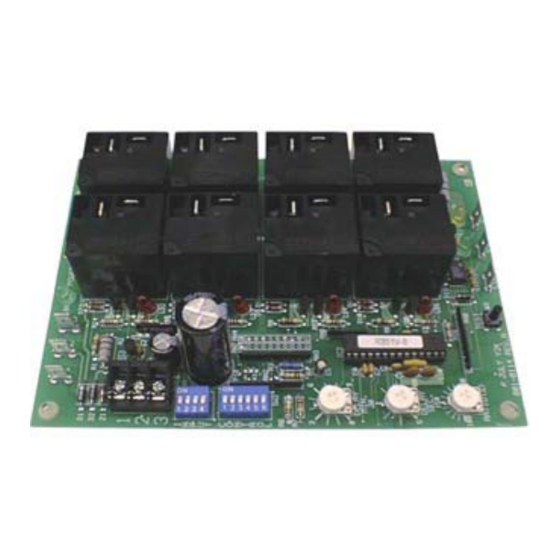

The Viconics R851V series step controller is designed for cost
effective, precise modulation of multi-stage control application. A
common application is a multi-step electric duct heater.
An integrated vernier control output will give a precise and full
modulation of the load from 0 to 100% of the total capacity.
FEATURES AND BENEFITS
Microcomputer-based design
Adjustable inter-stage delay
Adjustable Vernier ratio
Choice of pulsed or analog
Vernier output
Up to 16 stages
Choice of LIFO or FIFO
sequencing
Test button
MODELS AVAILABLE
The R851V is available in 1 model
R851V-8
8 stage unit
If more than 8 stages are required, the R851B-8 can be used as a
master unit with another R851V as a slave unit. Adding another unit
can bring the total step number up to 16.
INPUT SIGNAL
The R851V has four INPUT dip switch (S1 to S4) to select the control signal input:
They are compatible with industry standard signals.
DIP SWITCH ADJUSTMENTS & WIRING CONTROL INPUT
Input Signal Switch
0 to 10 Vdc control signal ( 2 to 10 Vdc control range )
4 to 20 mA control signal
If a slave unit is used, wire the control signal input to the master unit only
028-5009-04_LIT-R851V-E06-EN
R851V STEP CONTROLLER
WITH INTEGRATED VERNIER STAGE
Accuracy and reliability
Provides flexibility in
replacement applications
Simplifies design of
proportional stage
Permits use of SCR or lower
cost SSR
One product family can handle
all applications
Increased flexibility of FIFO
permits even use of contactors
Quick troubleshooting
Innovative Control Solutions For Your Needs
SPECIFICATIONS
Operating conditions:
0°C to 80°C ( 32°F to 176°F )
0 % to 95 % R.H. non-condensing
Relay outputs:
Pilot duty:
-
24 - 120 Vac – 720 VA
-
240 Vac – 690 VA
Motor load:
-
120 Vac – 1 HP
-
240 Vac – 2 HP
Vernier stage: 0 to 10 Vdc, 5 mA max.
Vdc pulsed, 6 Vdc, 30 mA max.
Input impedance: 0 to 10 Vdc into 10 KΩ minimum
Power supply: 24 Vac -15%, +10% 50/60 Hz; up to18 VA
Use a Class 1 ( properly fused ) or Class 2, CSA or UL recognized
transformer for power supply & relay outputs.
Agency Approval: cULus File # E212649
Specifications and equipment are subject to change without prior notice.
OVERRIDE TEST BUTTON
The override test button can be used to by-pass the interstage delay and
bring on all stage at one time. This simplifies the verification of configured
maximum number of stage. A status led per step will come on for each of
the configured stage.
Switch #1
Switch #2
Off
Off
Off
Off
Sep-19
Switch #3
Switch #4
Off
On
On
Off
1
