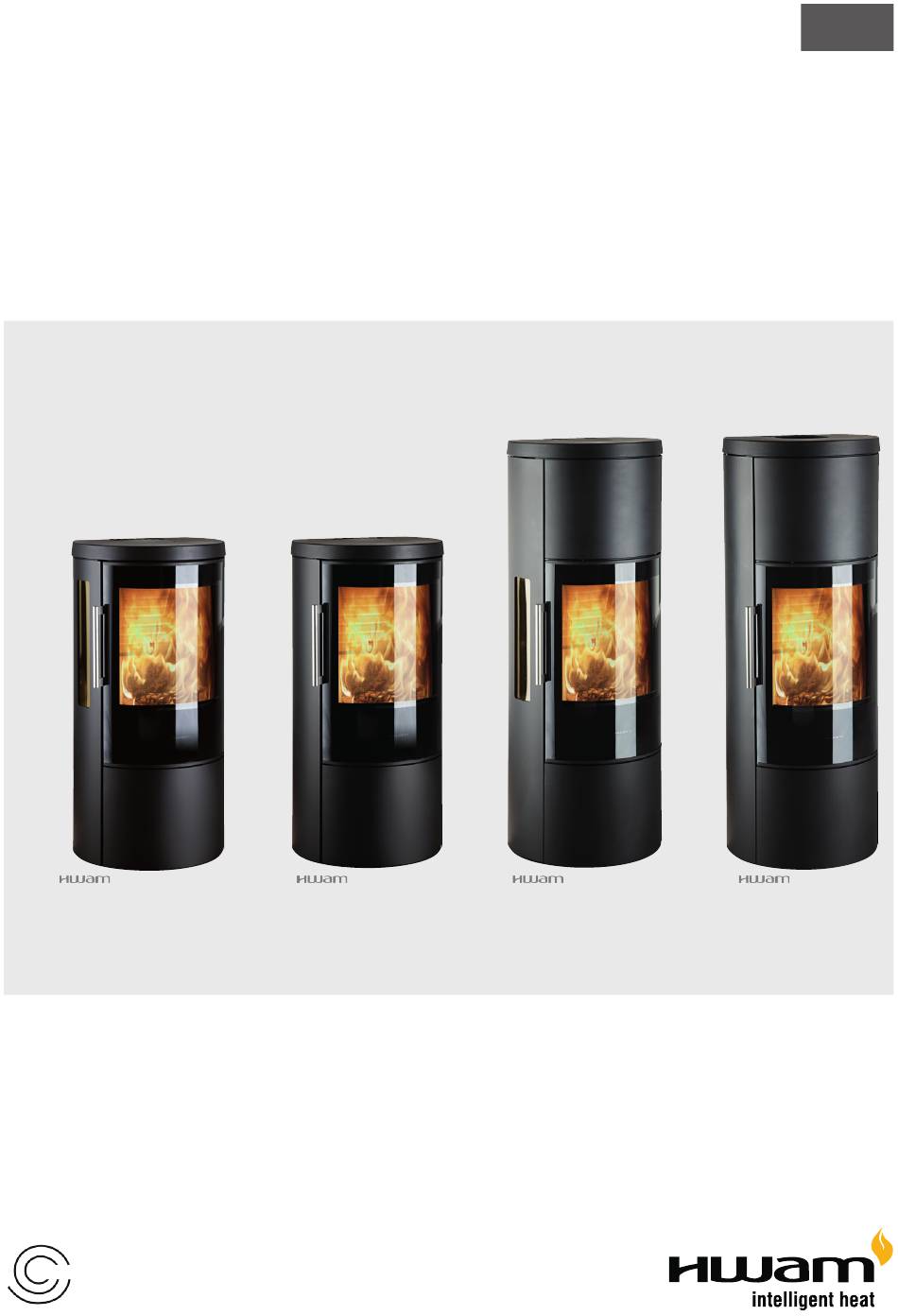

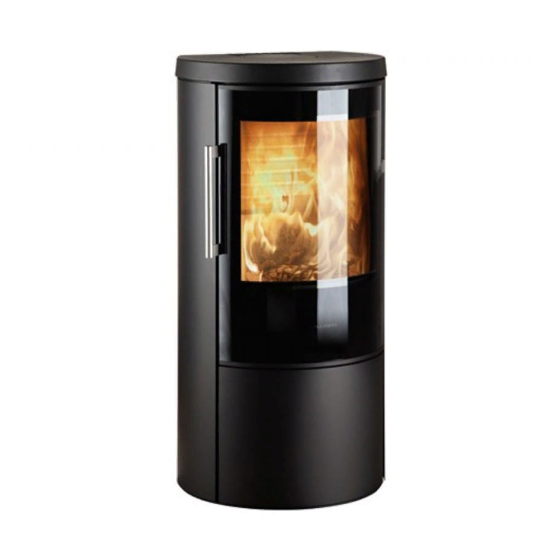

- Page 1 User's Manual 3630 3640 3650 3660 01.11.2020 / 97-9646 www.hwam.com AUTOPILOT...
-
Page 3: Table Of Contents
Table of contents Drawings ..........Installation . -
Page 4: Drawings
Page 4 of 20 pages... - Page 5 Page 5 of 20 pages...
- Page 6 Page 6 of 20 pages...
- Page 7 Page 7 of 20 pages...
- Page 8 Page 8 of 20 pages...
-
Page 9: Installation
In general Congratulations on your new HWAM woodburning stove. We are pleased that you have chosen a HWAM woodburning stove and confident that it will give you much pleasure. To ensure optimum operation and safety, we recommend that the installation should be carried out by an authorised HWAM retailer or a fitter recommended by the retailer. - Page 10 The chimney and flue duct must be of flue class T400 and be CE marked. Furthermore, it must have obtained the classification of G in soot fire testing. The required distance to combustible material must be complied with in accordance with the brand label. Ask your HWAM retailer for further information.
- Page 11 Changing the smoke outlet from top outlet to back outlet (HWAM 3630/3640) (Drawing H) 1. Removing sides. Lift one side about 10 mm and pull it away from the stove so that it disengages from the guide pins on the bottom plate of the stove. Repeat on the other side.
- Page 12 5. Wall rosette. Covers disruption to wall around pipe sleeve. 6. Joint. Sealed with packing material. 7. Smoke outlets of the HWAM stove. 8. Cover plate in the external rear plate – break off if a back outlet is required.
-
Page 13: Firing Manual - Wood
Chimney The chimney is the “engine” of the stove and it is crucial for the functioning of the woodburning stove. The chimney draft provides a partial vacuum in the stove. This vacuum removes the smoke from the stove, sucks air through the dampers for the so-called glass pane rinse which keeps the glass free of soot, and sucks in air through both primary and secondary dampers for the combustion. - Page 14 you should not apply any of the above is that during combustion they develop substances that are health hazardous and harmful to the environment. These substances could also damage your wood burning stove and chimney, rendering the product warranty void. Storage of wood A moisture content of 12-18% is achieved by storing recently felled wood outdoors under a lean-to for at least one year, preferably 2 years.
- Page 15 The stove can then be stoked again. Important! The ash pit must not be opened when lighting up. It must always be closed when the stove is in use. Otherwise the HWAM Autopilot™ does not function. The door should only be opened when ®...
-
Page 16: Firing In General
Insufficient firing If the fireproof materials in the combustion chamber are blackened after a fire, then the stove is polluting, and the HWAM Autopilot™ is malfunctioning. It will be necessary, therefore, to move the air control ®... -
Page 17: Maintenance
Service inspection Your stove should be given a thorough, preventive inspection once every two years. This includes: • Thorough cleaning of the stove. • Checking the spring in the HWAM Autopilot™. Replace if necessary. ® • Checking gaskets. Replace gaskets if they are not intact or are no longer soft. -
Page 18: Operational Problems
Stop using the stove and contact the retailer. At interruptions that you cannot yourself rectify, you should contact the retailer. eclaratIon oF erFormance The DoP can be downloaded from our website via the following links: www.hwam.com/dop/3630-3650 www.hwam.com/dop/3640-3660 Page 18 of 20 pages... -
Page 19: Product Information Ecodesign
Product information on solid fuel local space heaters according to Comission regulation (EU) 2015/1185 Model HWAM 3630, HWAM 3640, HWAM 3650, HWAM 3660 Direct heat output [kW] Indirect heating functionality Indirect heat output [kW] Type of heat output/room temperature control...
