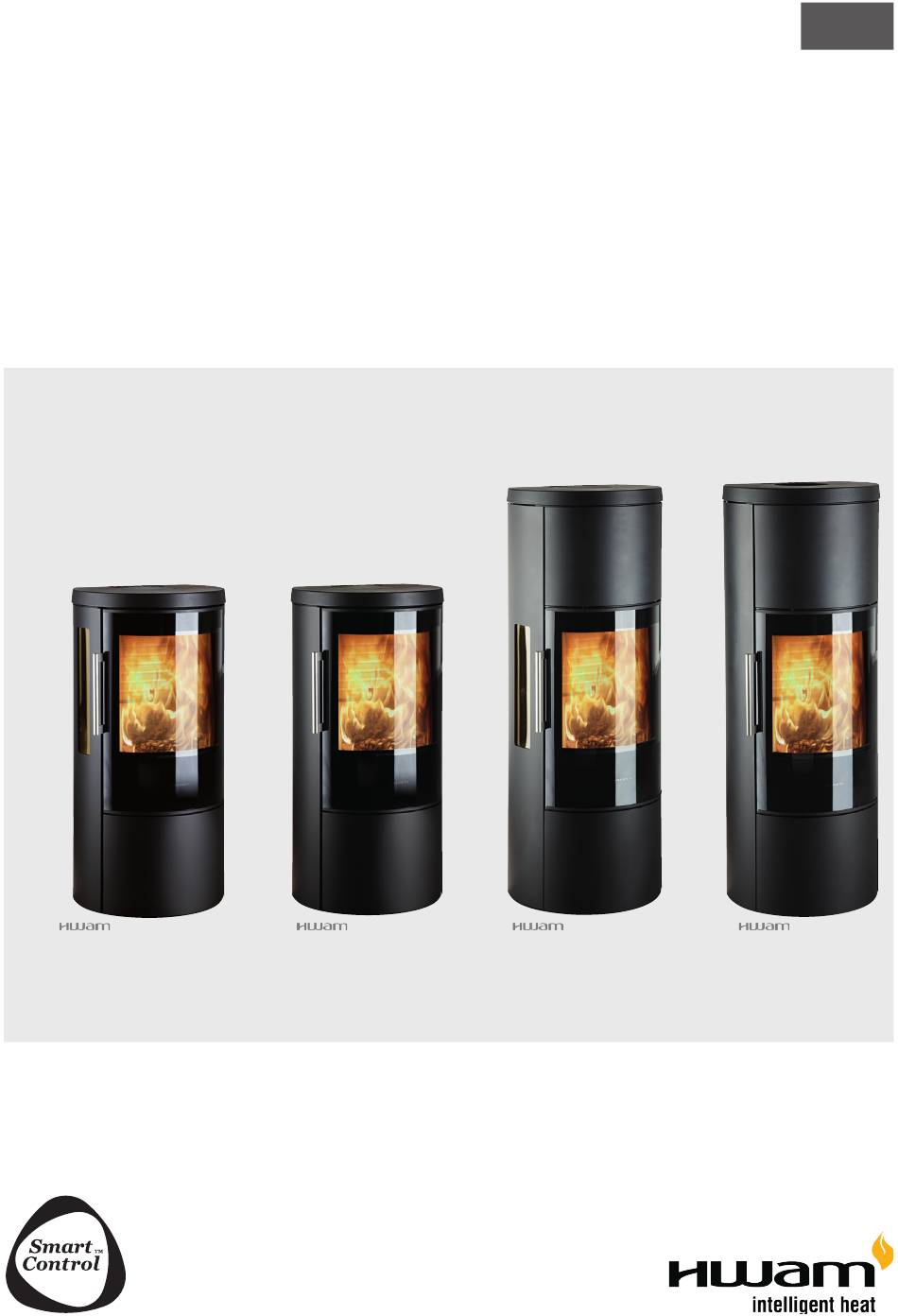

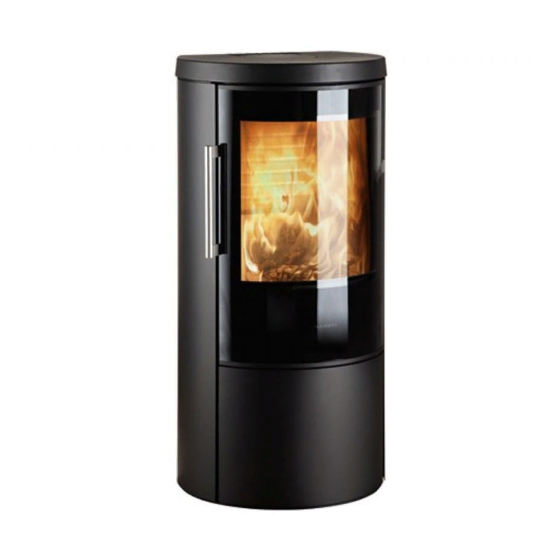

  • Page 1 Users manual 3630 3640 3650 3660 01.11.2020 / 97-9664 www.hwam.com...

  • Page 2: Table Of Contents

    Drawings ........... 3-6 HWAM Autopilot IHS .

  • Page 3: Drawings

    Page 3 of 20 pages...
  • Page 4 Page 4 of 20 pages...
  • Page 5 Page 5 of 20 pages...
  • Page 6 Page 6 of 20 pages...

  • Page 7: Hwam Autopilot Ihs Tm

    Congratulations on your new wood-burning stove complete with a HWAM SmartControl ® We are pleased that you have chosen a HWAM woodburning stove and confident that it will give you much pleasure. The HWAM SmartControl is a digital control of the combustion in your new wood-burning stove. The ®...

  • Page 8: Installation

    In general To ensure optimum operation and safety, we recommend that the installation should be carried out by an authorised HWAM retailer or a fitter recommended by the retailer. For an overview of HWAM retailers, visit www.hwam.com under “Retailer locations”.
  • Page 9 The chimney and flue duct must be of flue class T400 and be CE marked. Furthermore, it must have obtained the classification of G in soot fire testing. The required distance to combustible material must be complied with in accordance with the brand label. Ask your HWAM retailer for further information.
  • Page 10 Changing the smoke outlet from top outlet to back outlet (HWAM 3630/3640 IHS) (Drawing E) 1. Removing sides. Lift one side about 10 mm and pull it away from the stove so that it disengages from the guide pins on the bottom plate of the stove. Repeat on the other side.
  • Page 11 5. Wall rosette. Covers disruption to wall around pipe sleeve. 6. Joint. Sealed with packing material. 7. Smoke outlets of the HWAM stove. 8. Cover plate in the external rear plate – break off if a back outlet is required.
  • Page 12 If the chimney is too tall to be cleaned from above, it must be equipped with a soot door. In case of a chimney fire and overheating, the HWAM SmartControl will enter a security mode and ®...

  • Page 13: Firing Manual - Wood

    IrIng MAnuAl Wood Your first heating session The lacquer will be fully hardened after the stove has been used, and the door and the ash pan should be opened very carefully as there will otherwise be a risk that the gaskets will stick to the lacquer. In addi- tion the lacquer may initially give off an unpleasant odour, so make sure that the room is well ventilated.
  • Page 14 In certain cases it is necessary to assist the draught in the chimney by opening the door to the burning chamber 3-5 minutes before lightning the stove. Read more on www.hwam.com about the function of the chimney.
  • Page 15 The HWAM SmartControl ® ® will signal that a restoking is due at the flue gas temperature of 180° C, and at 100° C the HWAM ® SmartControl will enter standby mode and all dampers will close.

  • Page 16: Firing In General

    ® combustion. A good combustion is achieved when the fire gets the right amount of oxygen supply at the right time and place in the combustion chamber. The HWAM SmartControl allows for variations ®...

  • Page 17: Maintenance

    AIntenAnCe Cleaning Any maintenance of the stove should only be carried out when it is cold. Daily maintenance is limited to vacuum cleaning the stove externally, using the soft brush attachment. You can also dust the stove using a dry, soft cloth or brush. But remember, only when the stove is cold. Do not use water, spirit or any other kind of cleaner, as this will damage the lacquer.

  • Page 18: Operational Problems

    In case the safety alarms go off, you must not use the stove. Contact your retailer as soon as possible. At interruptions that you cannot yourself rectify, you should contact the retailer. eClArAtIon oF erForMAnCe The DoP can be downloaded from our website via the following links: www.hwam.com/dop/3630ihs-3650ihs www.hwam.com/dop/3640ihs-3660ihs Page 18 of 20 pages...

  • Page 19: Product Information Ecodesign

    Product information on solid fuel local space heaters according to Comission regulation (EU) 2015/1185 HWAM 3630 IHS, HWAM 3640 IHS, HWAM 3650 IHS, Model HWAM 3660 IHS Direct heat output [kW] Indirect heating functionality Indirect heat output [kW] With electronic room temperature control...
