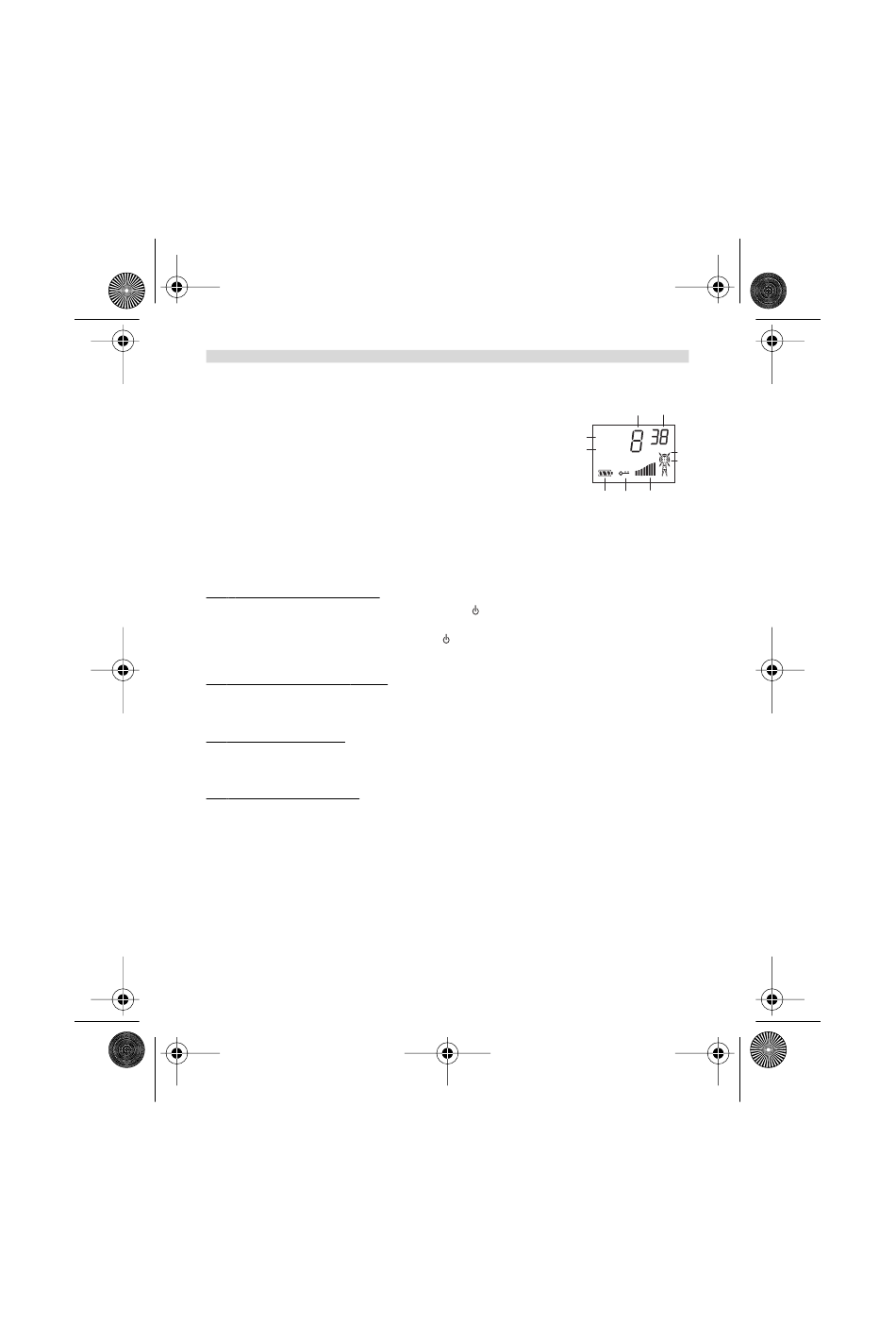

3. LCD SCREEN

A RX icon. Displayed when receiving a signal.
B TX icon. Displayed when transmitting a signal.
C Speaker volume level
D Menu lock symbol
E Battery level
F Displayed during VOX mode.
G Displayed during CHANNEL SCAN mode.
H Channel number (1-8)
I CTCSS code (1-38)

4.GETTING STARTED

4.1. Turning the Unit ON/OFF

To activate; press and hold the POWER button
Screen will display the current channel.
To switch off; press and hold the POWER
LCD Screen will turn blank.

4.2. Adjusting Speaker Volume

The Speaker Volume can be adjusted by pushing the navigator up or down. The Speaker
Volume level is displayed on the LCD.

4.3. Receiving a Signal

The unit is continuously in the RECEIVE mode when the unit is ON and not transmitting.
When you receive a signal on the current channel, the RX icon is displayed

4.4. Transmitting a Signal

1. Press and hold the TALK button to TRANSMIT.
2. Hold the unit in a vertical position with the MICROPHONE 5 cm from the mouth and
speak into the microphone.
3. Release the TALK button when you have finished talking.
IMPORTANT: In order for other people to receive your transmission, they
must also be on the same channel and have set the CTCSS code you are
currently using. Refer to the 'Changing Channels'
Topcom Twintalker 5000
G
SCAN
F
VOX
E D
. The unit will "beep" and the LCD
button again. The unit will "beep" and the
ENGLISH
I
H
A
B
C
5
