Product Manual

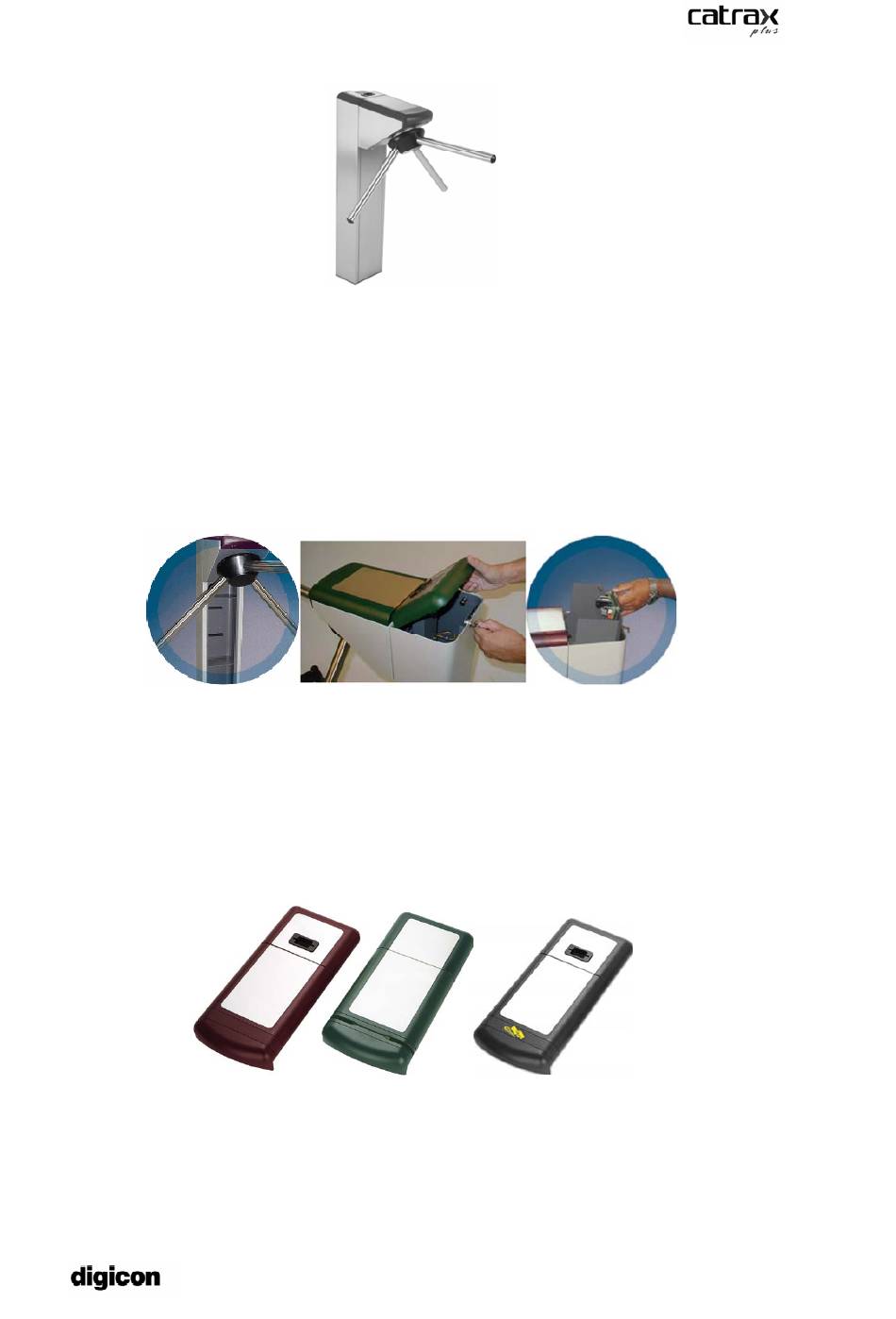

The column is available in two finishes: brushed stainless steel (AISI 304) or 1020
carbon steel with black epoxy powder coating. It features fully rounded corners and a
smooth surface with no exposed screws, in addition to a reinforced internal structure
and plenty of space for practically any access control solution. It also has room for a
no-break power supply unit and a card collection box (not included).
In order to simplify maintenance and assembly, the column has an internal U-shaped
mounting rack with a standard set of holes for prompt mounting of electronic boards.
Additional holes can be drilled by the customer to accommodate specific needs.
For access to the mounting rack, use the keys that are provided with the turnstile.
Removal and insertion of the rack are extremely easy.
The upper column panels are manufactured in high-impact engineering plastic with
customizable stainless steel sheets. The plastic panels are available in green,
burgundy, or black. Special color orders are available upon consultation. The front
upper panel can have a slot for housing customer supplied magnetic and bar code
readers.
The upper cover stainless steel plates are designed for easy configuration and low-cost
customization. The plates can be easily punched to accommodate integrator options
such as displays, keyboards, biometric sensors, and pictogram LEDs/pictogram
indicators, as shown below:
Customization can be carried out with either a third party supplier or with Digicon
(subject to additional quotation).
The Catrax Plus is compatible with most technologies currently available. The following
optional items can also be ordered: card collection kit, pictogram kit, backlight display
(see separate manual), mechanical counter, power supply, control board, and no-
