Product Manual

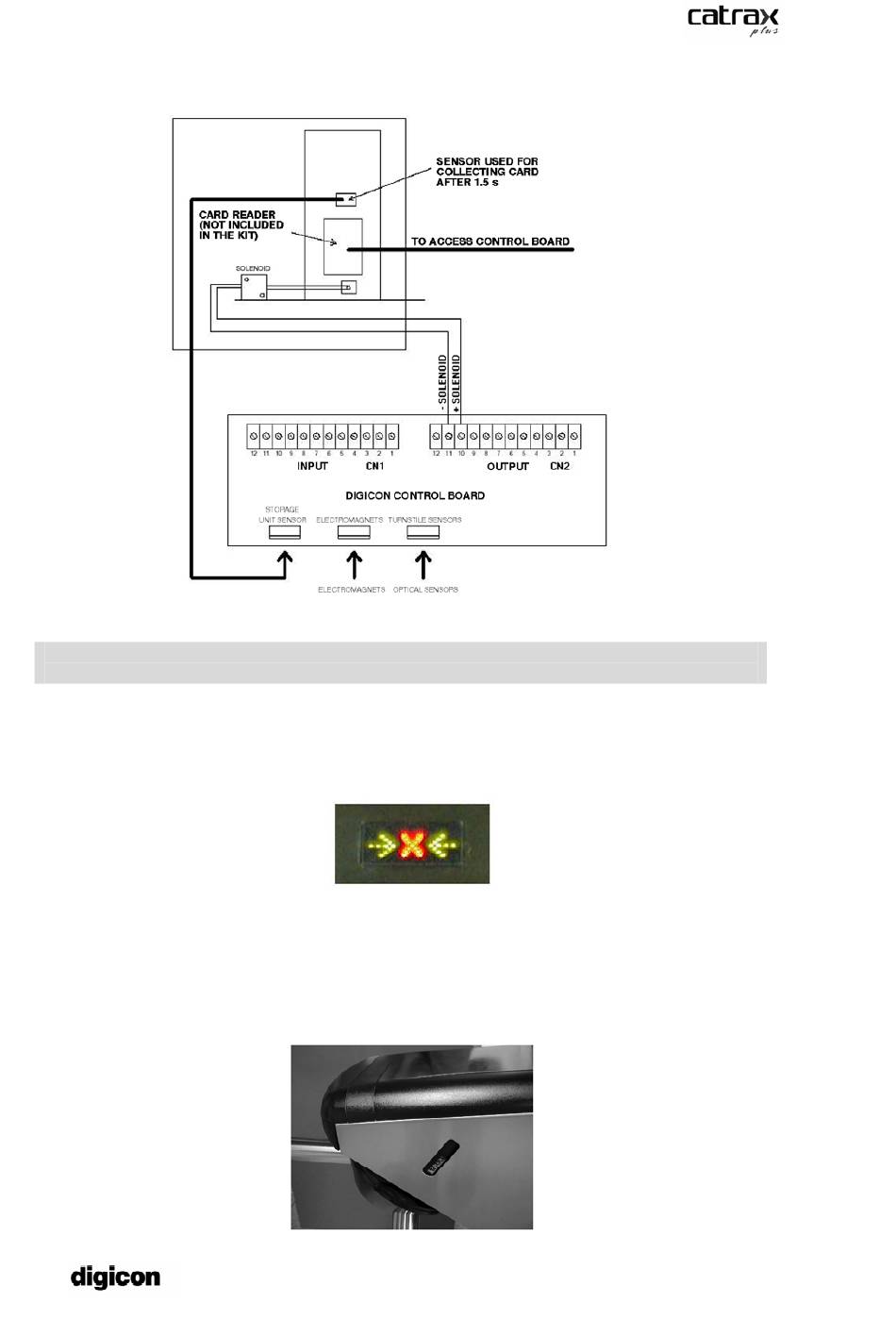

5.1.1 Connecting the card collection box to the control board

NOTE
The magnetic/bar code reader is not part of the kit.
5.2 P
ICTOGRAM KIT
The pictogram kit provides visual indication of the direction of turn (green arrows) and
turn locking (red X). The pictograms are created using high-intensity LEDs.
For information on assembling the pictogram kit and on the items that come with the
kit see the figure referring to the rear cover on page 7.
5.3 M
ECHANICAL COUNTER
A five-digit mechanical counter is available as an optional item for your Catrax Plus.
