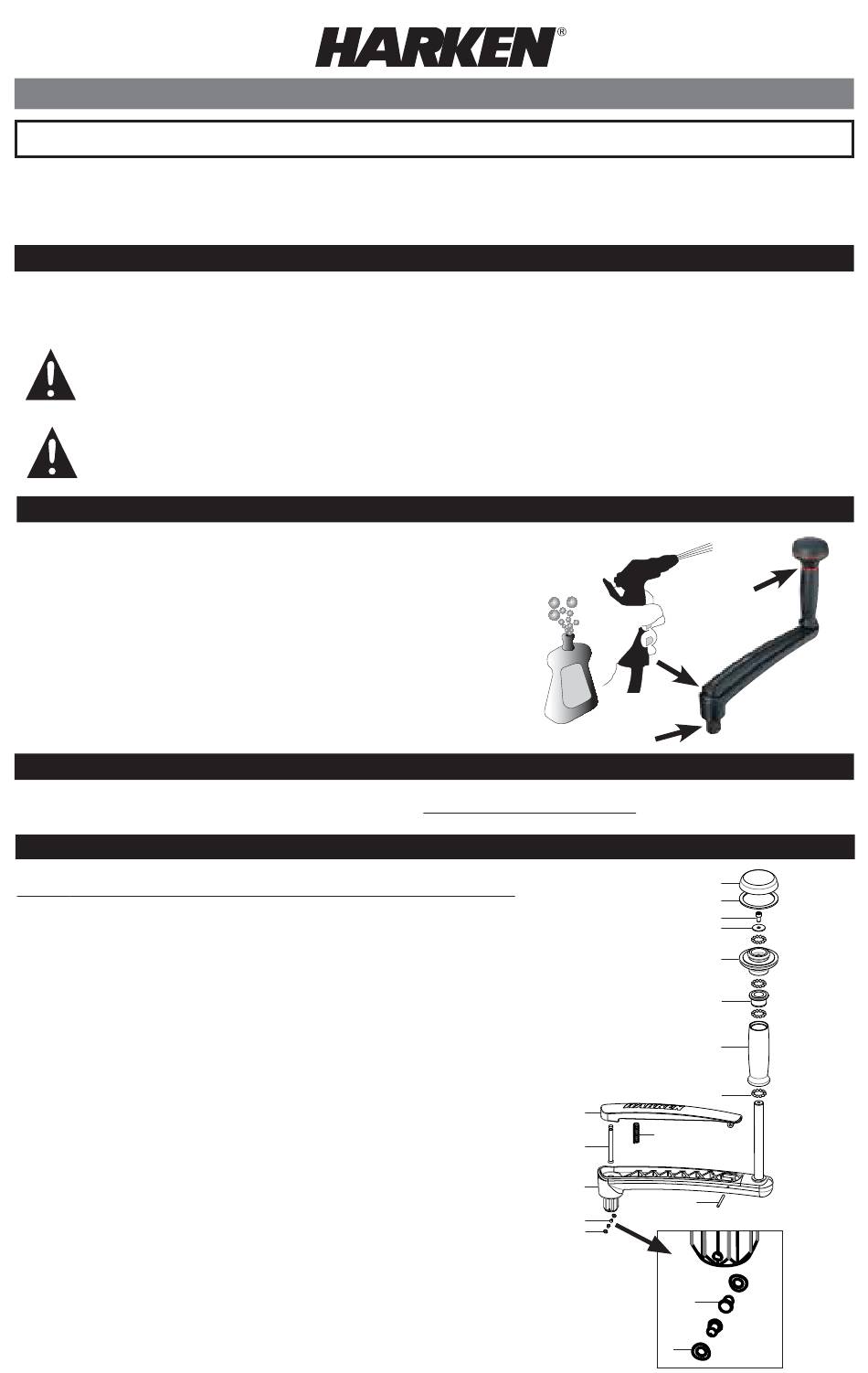

Harken Carbo OneTouch Instructions

The Harken Carbo
®
brand to make sure the handle locks and releases before using the handle.
CAUTION! Before initially using handle with electric or hydraulic winches, check to make sure
the disconnect rod locks out the motor. To test, insert handle, stand clear and push power button.
Handle should NOT spin.
WARNING! Avoid using the handle body for stability or as a hiking device. The grab bar could
accidentally compress, releasing the handle from the winch and causing injury.
Keep your handle clean and free-running by frequently
flushing with fresh water. Periodically clean with mild
detergent and water solution. Squirt soap solution into
these areas. Spin grip and knob, depress grab bar and
lock pin mechanism to distribute soap solution evenly.
Flush with fresh water.
For safety, maintenance, and warranty information: www.harken.com/manuals or the Harken catalog.
No. Qty. Part No.
1 1 S351240097
2 1 S351270082
3 1 HFS334
4 1 H-69104
5 1 S351250082
6 1 S351260082
7 1 S277640082
8 48 MP-121
9 1 H-67986
10 1 H-67991
11 1 H-67974
12 1 H-67969
13 1 HFS683
14 2 H-67975
15 2 H-67985
*Assemble with one drop blue Loctite
Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Loctite is a registered trademark of Henkel AG & Company KGaA.
I N S T R U C T I O N S
Carbo OneTouch
®
N15W24983 Bluemound Road • Pewaukee, WI 53072 U.S.A.
Telephone: (262) 691-3320 • Fax: (262) 701-5780
Web: www.harken.com • Email: harken@harken.com

Using the Carbo OneTouch

OneTouch handle fits most winches however always check the fit in any winch
®
Description
Top knob
Red washer HFS334
Screw M5x10 SHCS*
SS washer
Lower knob support
Bushing
Handle grip
Ball 3 / " Delrin
16
Grab bar
Spring
Plunger pin
Body assembly
Roll pin —
Lock pin (2)
Curved spring washer (2)
adhesive.
®

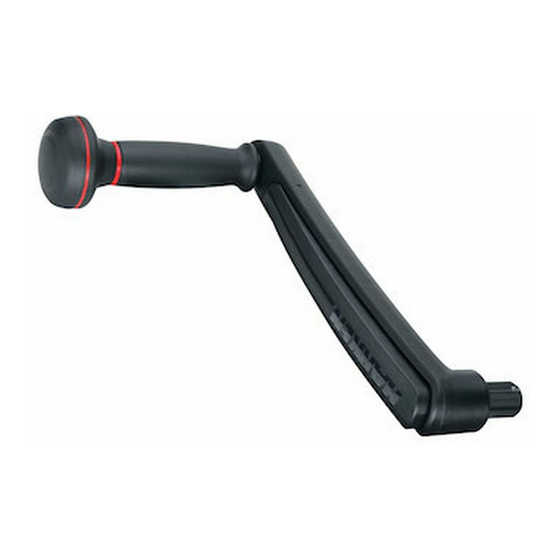

Locking Winch Handle
®

Maintenance

Warranty

B10HOT
bearings (48)
®
1 / x 1 1 / "
8 4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
14
15
