Fits Midrange Cars: 1624/1625/1628/1629/T27 Series
N15W24983 Bluemound Rd • Pewaukee, WI 53072-4974 USA.
Strictly follow all instructions to avoid an accident, damage
to your vessel, personal injury or death. For additional safety
information see www.harken.com/manuals.
1567

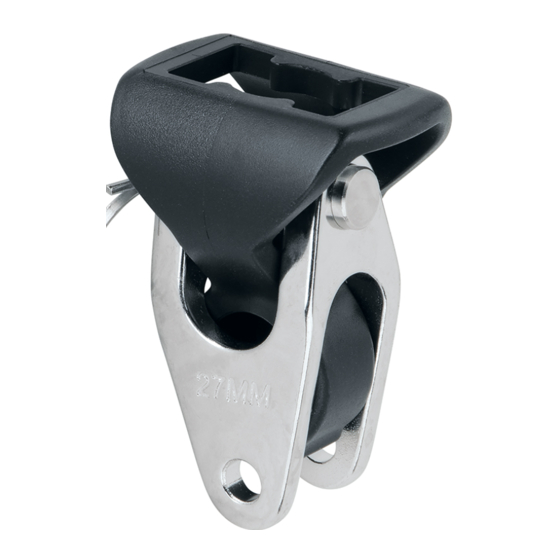

1567 - use on cars with car mounted control blocks.
1643 - has ears to attach control blocks to toggle.
1567, 1643 Midrange stand-up toggles fit these Harken blocks:
Mainsheet Blocks
Element*
Carbo
Classic Small Boat
Midrange
Black Magic
*1561 and 1638 toggles have increased spacing to fit Element block swivel posts. Element
blocks do not fit toggles supplied before 2019.
Control Blocks - 1643
2650 - Deadend on end control
2650 - Deadend on block
342/2638 - Deadend on control
These are a sample of combinations. Other combinations are available.
1 Toggle with elastomer stand-up assembled
2 Large cotter pin
3 8 mm (5/16") clevis pin
4 Bushing - 6 mm (1/4") (2)
5 6 mm (1/4") clevis pin
6 Replacement set screws (2)
Elastomer replacement
I N S T R U C T I O N S
1567/1643 Stand-Up Toggles
Tel: (262) 691-3320 • Fax: (262) 701-5780
Web: harken.com • Email: harken@harken.com
1643
Size and Configurations
45 mm singles, fiddles, doubles, triples
60 mm singles, fiddles
60 mm doubles, triples
75 mm singles, fiddles
75 mm doubles, triples
3" single, fiddle
All configurations
57 mm single
57 mm doubles, triples
End Controls
1631, E2730
1632, 1633, E2740, E2746
1632, 1633, E2750, E2756
1567
HFS181
H-80166
H-80167
H-80165
HFS971
MP-1838
Parts List
1
Mainsheet block
pin diameter
Pin diameter
6 mm
1/4"
6 mm
1/4"
8 mm
5/16"
6 mm
1/4"
8 mm
5/16"
6 mm
1/4"
8 mm
5/16"
6 mm
1/4"
8 mm
5/16"
Purchase
2:1
3:1
4:1
2
3
4
5
6
