Harken 1618 Midrange Installation Sheet

I N S T A L L A T I O N
Tel: (262) 691-3320 • Fax: (262) 701-5780 • www.harken.com • Email: harken@harken.com
Strictly follow all instructions to avoid an accident, damage to
your vessel, personal injury or death. See www.harken.com for
additional safety information.

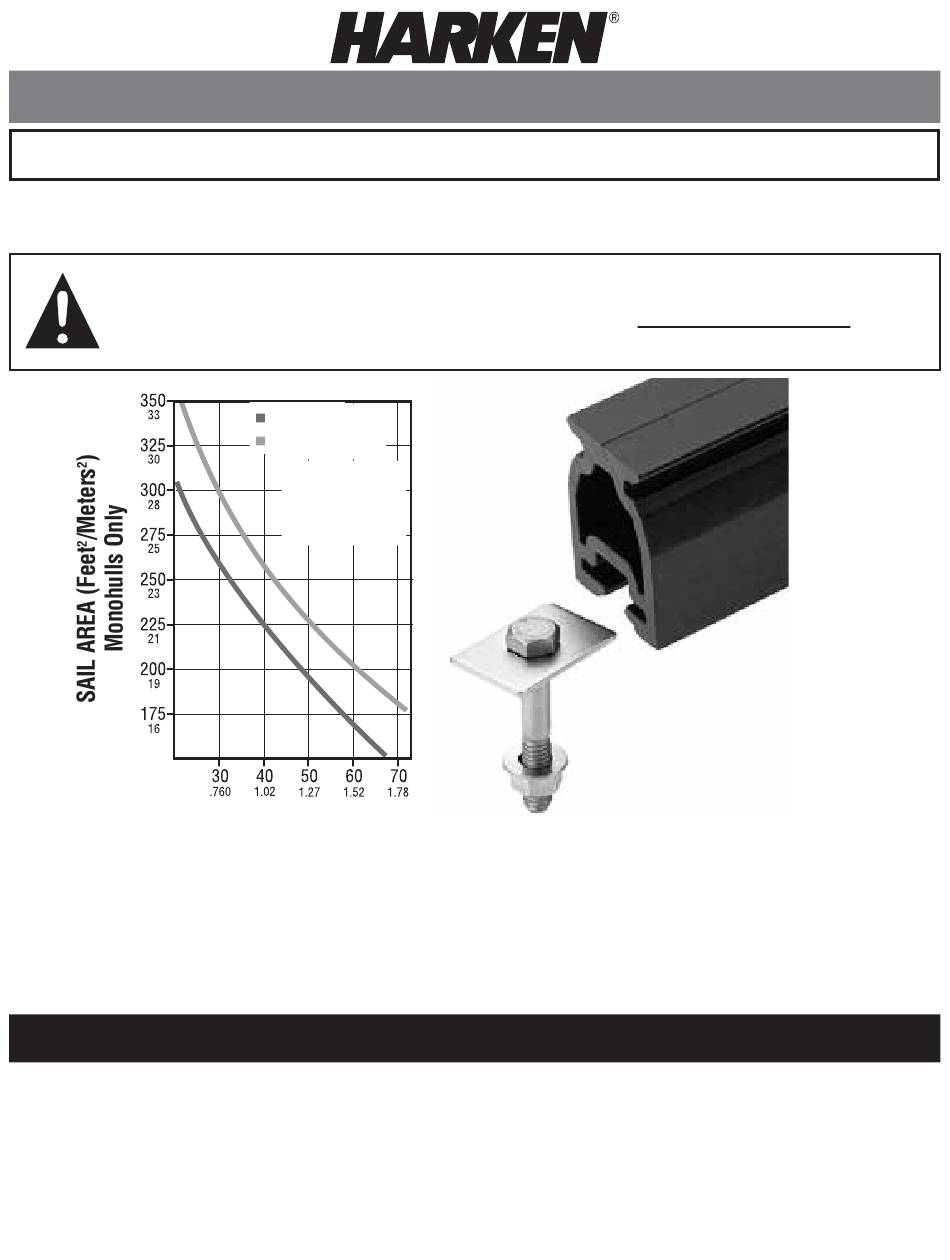

SPAN (Inches/Meters)
1618 Midrange high-beam traveler track is designed to be self-supporting to
span cockpits or companionways without additional bridge structures. Track
is shipped with eight (8) HCP341 bolt slides and eight (8) HFS1012 washers.
Contact Harken if more slides are required. Track shipped to destinations
outside U.S. is sent with eight (8) H-8557A metric spacers for 6mm nuts.
Where track is supported, place bolts on 4" (102mm) centers. Place at least
three (3) bolts at each end of track with two of those near span. To mount
track, calculate hole spacing and drill holes in deck, seats or other mounting
surface. Slightly bevel top of track hole so bedding compound can mass at top
of hole. Place appropriate number of
1618 Midrange High-Beam Traveler Track
N15W24983 Bluemound Rd. • Pewaukee, WI 53072 U.S.A.
Mid-Boom
End-Boom
Spanning
Capability
1618 Track

Mounting Track

/ " (6 mm) hexhead bolts and spacers
1
4
