VERIS 2

VERsatile Installation Systems

Exquisite Performance...Exceptional Value

Operation Manual

Table of Contents

Need help?

Do you have a question about the VERIS 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Community VERIS 2

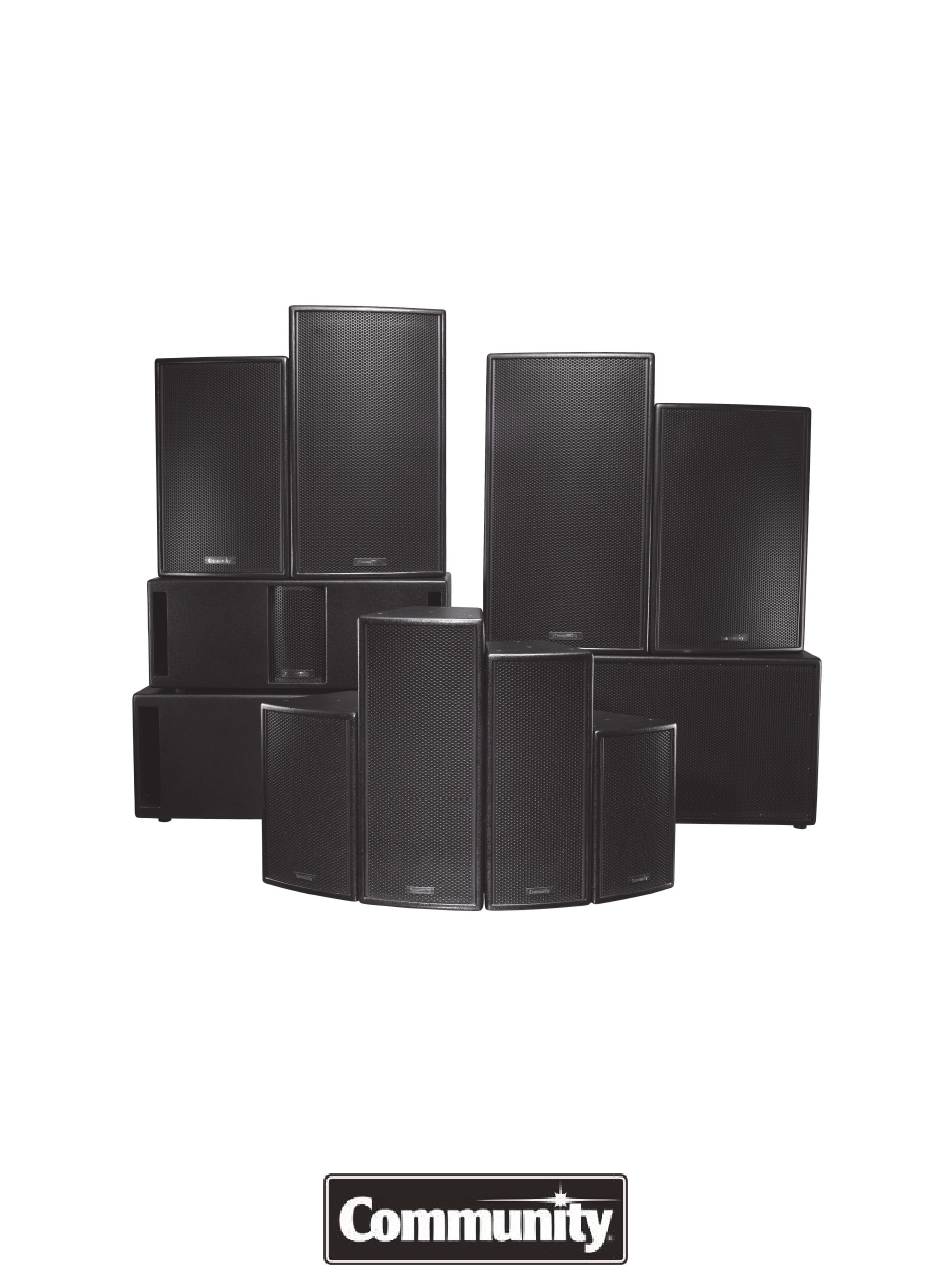

Page 1 VERIS 2 VERsatile Installation Systems Exquisite Performance…Exceptional Value Operation Manual...
Page 2: Warranty Information
Chester, PA USA June 2012 WARRANTY INFORMATION Community VERIS 2 loudspeakers and accessories are warranted in the USA to be free from defects in materials and workmanship for a period of five (5) years, as determined by one of the following two methods, whichever is longer: 1.
Page 3: Table Of Contents
VERIS 2 Technologies .................... 7 Unpacking and Inspection ..................8 VERIS 2 Specifications ................... 9 Getting Acquainted ....................11 Physical Features of VERIS 2 Full-Range Models ..........11 Physical Features of VERIS 2 Subwoofers ............12 General Description ....................13 DYNA-TECH Driver Protection System ..............
Page 4: Important Safety Information
The terms IMPORTANT, WARNING, and DANGER, as used in this manual, alert the reader to important safety considerations. If you have questions, or do not understand the meaning of these terms, do not proceed with the installation. Contact your local dealer, distributor, or call Community directly for assistance.
Page 5: Precautions & Safety Considerations
La herida y/o la pérdida severas de la vida pueden ocurrir si estos productos se instalan impropiamente. Lea por favor la sección a aparejar para la información adicional. VERIS 2 – Operation Manual - Page 5...
Page 6: Introduction
Venues such as nightclubs, cafes, discotheques, houses of worship, auditoriums, lecture halls, restaurants, theatres, and almost anywhere else that people gather to enjoy music or hear the spoken word, are within the ability of the VERIS 2 line to respond with acoustical perfection.
Page 7: Veris 2 Technologies
VERIS 2 TECHNOLOGIES VERIS 2 loudspeakers offer numerous advances in technology that provide superb sound and long- term reliability. Some of these include:  Sophisticated internal crossover networks for reduced off-axis lobing and consistent coverage throughout the crossover region. ...
Page 8: Unpacking And Inspection
UNPACKING AND INSPECTION VERIS 2 loudspeakers are inherently rugged and are carefully packed in sturdy cartons. However, it is wise to thoroughly inspect each unit after it has been removed from the packaging, as damage could occur during shipping. Please note that once the shipment has left your dealer or the Community factory, the responsibility for damage is always borne by the freight company.
Page 9: Veris 2 Specifications
Autoformer Autoformer * VERIS 2 models V2-6, V2-8, V2-26 and V2-28 include a yoke-style mounting bracket at no additional charge. These four models may be ordered with an optional 200W autoformer to accommodate 70V/100V system designs. Input connections are screw terminals.
Page 10 59.5 lbs (27 kg) 58 lbs (26.3 kg) 70 lbs (31.8 kg) 94 lbs (42.6 kg) * All subwoofer measurements are performed at half-space. Due to ongoing development, specifications are subject to change without notice. VERIS 2 – Operation Manual - Page 10...
Page 11: Getting Acquainted
GETTING ACQUAINTED Figure 1: Physical Features of a Typical VERIS 2 Full-Range Model PHYSICAL FEATURES OF VERIS 2 FULL-RANGE MODELS FEATURE DESCRIPTION TOP & BOTTOM RIGGING M6 or M10 threaded fittings, depending on model. POINTS Powder-coated steel grille protects drivers from foreign PROTECTIVE GRILLE objects.
Page 12: Physical Features Of Veris 2 Subwoofers
Figure 2: Physical Features of a Typical VERIS 2 Subwoofer PHYSICAL FEATURES OF VERIS 2 SUBWOOFERS FEATURE DESCRIPTION RIGGING POINTS M10 threaded fittings. Four (4) on each side panel. Powder-coated steel grille protects drivers from foreign PROTECTIVE GRILLE objects. GRILLE RETENTION #6 x 5/8”...
Page 13: General Description
GENERAL DESCRIPTION VERIS 2 Series loudspeakers are designed for demanding day-to-day use in a wide range of fixed installations. Their high quality driver components are housed in rugged, acoustically inert enclosures equipped with rigging fittings. VERIS 2 systems are characterized by a high- power, low distortion linear response that provides exceptional musicality and speech intelligibility.
Page 14: Cool-Coil™ Technology
This air passing through the pole vent helps to cool the magnet structure. Community has improved on this common cooling method by introducing an airflow director (US patent 6,390,231) into the air path.
Page 15: High-Pass Filters
60 Hz, 24db/octave V2-15 Full-Range 60 Hz, 24db/octave V2-32 Full-Range 60 Hz, 24db/octave V2-35 Full-Range 60 Hz, 24db/octave V2-210S Subwoofer 40 Hz, 24db/octave V2-212S Subwoofer 40 Hz, 24db/octave V2-215S Subwoofer 35 Hz, 24db/octave VERIS 2 – Operation Manual - Page 15...
Page 16: Connecting The Amplifier To The Loudspeaker
CONNECTING THE AMPLIFIER TO THE LOUDSPEAKER All VERIS 2 Series loudspeakers are provided with two methods of connecting the amplifier to the loudspeaker. One is an industry standard NL4 type locking connector, and the other is a pressure-screw terminal strip. These two connectors are wired in parallel with each other, on all models.
Page 17: Using Power Taps
1+ on an NL4 type connector). USING POWER TAPS A VERIS 2 loudspeaker equipped with an optional autoformer has four 70.7V taps and three 100V taps. The 70.7 volt taps are set at 25W, 50W, 100W and 200W on the two larger models, and 12.5W, 25W, 50W and 100W on the two smaller models.
Page 18: 70.7V And 100V Systems
Asia most constant voltage systems use the 100V standard; in the USA the 70.7 voltage standard is most often utilized. A VERIS 2 loudspeaker equipped with the optional autoformer will support both the 70.7V and 100V standards. The same screw terminals are used for both voltage standards, but the power level of the tap is different, depending on whether the amplifier voltage is 70.7V or...
Page 19: Know Your Amplifier
Note that when specifying multiple twisted pairs of speaker cables intended to share the same conduit, the conduit will need to be sized much larger than with loose or bundled conductors. VERIS 2 – Operation Manual - Page 19...
Page 20: Conductors And Insulation
75% loss of total available power! As you can readily see, it’s very important to use the largest gauge wire that you possibly can, particularly when long lines are unavoidable. Note: NL4-compatible connectors easily accept #12 AWG. VERIS 2 – Operation Manual - Page 20...
Page 21: The Effect Of Wire Gauge On Damping Factor
(more on this later). A table is provided below to help you size your amplifiers’ power output capability to the various models in the VERIS 2 line. Model...
Page 22: Veris 2 Applications
New! The VERIS 2 line now has the ability to rotate the HF horn to change the axes of widest and narrowest HF dispersion. This new feature applies to V2-6, V2-8, V2-26 and V2-28 models.
Page 23: Positioning Subwoofers
The smallest subwoofer, the VERIS 2-210S, is characterized by an exceptionally tight and punchy sound. The larger VERIS 2-212S adds a deeper low end, but still with a very rapid transient response. The new VERIS 2-215S remains capable of clean and responsive bass reproduction, but with greater power and depth than its smaller siblings.
Page 24 When planning loudspeaker locations, it’s wise to discuss the matter with someone who may have prior experience operating sound systems in that particular room, such as the resident mixing engineer. VERIS 2 – Operation Manual - Page 24...
Page 25: Polarity
It will take some trial and error to determine the optimal physical relationships. VERIS 2 – Operation Manual - Page 25...
Page 26: Choosing Appropriate Loudspeaker Models And Appropriate Signal Processors
 Choose VERIS 2 models with high enough maximum power to provide the needed SPL at the farthest listener - with attention paid to maintaining appropriate headroom. Typical headroom factors are at least 6 dB for voice paging, at least 10 dB for voice reinforcement, and as much as 20 dB for music reinforcement.
Page 27: Dspec226 - The Simple And Effective Answer
 VERIS 2 models should be chosen with the best dispersion patterns to cover the audience evenly. Each loudspeaker should be carefully focused towards the listeners while being careful to keep acoustic energy away from walls, ceilings, and other reflective surfaces, including physical obstructions that are caused by architectural elements (such as columns) or furnishings.
Page 28: For More Information And Application Assistance
When equalizing a VERIS 2 loudspeaker system the following points should be kept in mind to achieve the best results and to avoid damaging the drivers. 1. Use only small amounts of equalization. In particular, do not boost frequencies by more than about 3 dB.
Page 29: Rigging / Suspension And Safety
WARNING - NON-COMMUNITY RIGGING HARDWARE: Non-Community hardware used for rigging a VERIS 2 loudspeaker must be certified by the supplier for such use and must be properly rated for safety. IMPORTANT NOTES ON RIGGING LOUDSPEAKERS There are three areas of responsibility for rigging loudspeakers.
Page 30: Veris 2 Mounting Brackets And Accessories
WARNING: VERIS 2 rigging fittings are rated at a Working Load Limit of 100 lbs (45.4kg) with a 10:1 safety margin. No single rigging fitting should ever be subjected to a load that is greater than 100 lbs.
Page 31 Model VB-VST The VB-VST allows for precise installation of a single full- range VERIS 2 loudspeaker from the ceiling. It includes a rotational device, a hang bracket that fastens to the top or bottom of the enclosure, and a ceiling mount bracket. It is designed to be used with any 12”...
Page 32: Troubleshooting Guide
TROUBLESHOOTING GUIDE Should you have a problem with your VERIS 2 loudspeaker(s), find the symptom and follow the associated WHAT TO DO instructions below. Please note that a particular symptom may have several possible causes. SYMPTOM PROBABLE CAUSE WHAT TO DO...
Page 33: Technical Drawings
The rear mounting points also accept the V-HSS handle and stand socket accessory. A steel yoke bracket allowing 0°, 10° and 20° angles is included. For yoke mounting instructions, refer to the supplementary instruction sheet included with this model. VERIS 2 – Operation Manual - Page 33...
Page 34 The rear mounting points also accept the V-HSS handle and stand socket accessory. A steel yoke bracket allowing 0°, 10° and 20° angles is included. For yoke mounting instructions, refer to the supplementary instruction sheet included with this model. VERIS 2 – Operation Manual - Page 34...
Page 35 The rear mounting points also accept the V-HSS handle and stand socket accessory. A steel yoke bracket allowing 0°, 10° and 20° angles is included. For yoke mounting instructions, refer to the supplementary instruction sheet included with this model. VERIS 2 – Operation Manual - Page 35...
Page 36 4 x M8 rear mounting points for third-party 60 lb. mounting devices. A steel yoke bracket allowing 0°, 10° and 20° angles is included. For yoke mounting instructions, refer to the supplementary instruction sheet included with this model. VERIS 2 – Operation Manual - Page 36...
Page 37 V2-12 V2-12 Notes: The V2-12 has a total of 13 x M10 hang points plus 4 x M8 rear mounting points for third-party 60 lb. mounting devices. VERIS 2 – Operation Manual - Page 37...
Page 38 V2-15 V2-15 Notes: The V2-15 has a total of 13 x M10 hang points plus 4 x M8 rear mounting points for third-party 60 lb. mounting devices. VERIS 2 – Operation Manual - Page 38...
Page 39 V2-32 V2-32 Notes: The V2-32 has a total of 13 x M10 hang points plus 4 x M8 rear mounting points for third party 60 lb. mounting devices. VERIS 2 – Operation Manual - Page 39...
Page 40 V2-35 V2-35 Notes: The V2-35 has a total of 13 x M10 hang points plus 4 x M8 rear mounting points for third-party 60 lb. mounting devices. VERIS 2 – Operation Manual - Page 40...
Page 41 V2-210S V2-210S Notes: The V2-210S subwoofer has a total of 8 x M10 hang points, 4 on each side. VERIS 2 – Operation Manual - Page 41...
Page 42 V2-212S 2-212S Notes: The V2-212S subwoofer has a total of 8 x M10 hang points, 4 on each side. VERIS 2 – Operation Manual - Page 42...
Page 43 V2-215S V2-215S Notes: The V2-215S subwoofer has a total of 8 x M10 hang points, 4 on each side. VERIS 2 – Operation Manual - Page 43...

This manual is also suitable for:

V2-6 V2-8 V2-26 V2-28 V2-12 V2-15 ... Show all
