- Page 1 SONUS Series Portable Linear-Response Loudspeaker Systems Operation Manual...
-
Page 2: Community Sonus Series - Operation And Installation Manual
EC STATEMENT OF CONFORMITY This document confirms that the range of products of Community Professional Loudspeakers bearing the CE label meet all of the requirements in the EMC directive 89/336/EEC laid down by the Member States Council for adjustment of legal requirements. Furthermore, the products comply with the rules and regulations referring to the electromagnetic compatibility of devices from 30-August-1995. -
Page 3: Welcome To Community
WELCOME TO COMMUNITY! Since 1968, Community has been designing and building innovative loudspeaker products for the worldwide sound reinforcement industry. Founded by Bruce Howze, who remains the principal designer to this day, the company has achieved numerous ‘firsts’ in technology breakthroughs. Some of these include: First - fiberglass composite loaded midrange horn for touring systems –... -
Page 4: Table Of Contents
Every effort was made to insure that the information contained in this manual was complete and accurate at the time of printing. However, due to ongoing technical advances, changes or modifications may have occurred that are not covered in this manual. Community SONUS Series - Operation and Installation Manual - Page 4... -
Page 5: Important Safety Information
If you have any questions or do not understand the meaning of these terms, do not proceed with installation. Contact your local dealer, distributor, or call Community directly for assistance. These terms are defined below: CAUTION: describes an operating condition or user action that may expose the equipment or user to potential damage or danger. -
Page 6: C-Tips
We call these C-TIPS (short for COMMUNITY-TIPS or COOL-TIPS…we’ll let you decide!). These tips originate from Community staff members as well as from installers and end users. We welcome any C-TIPS that you may want to share with us, and we’ll acknowledge you as the source if we print them in future user’s manuals. -
Page 7: Sonus Series Operation Manual

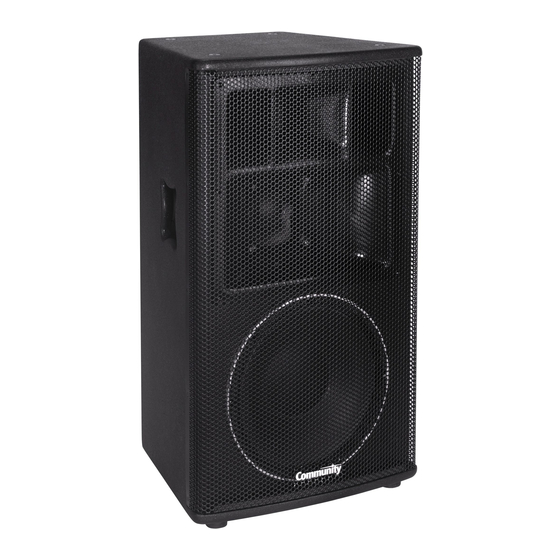

SONUS SERIES OPERATION MANUAL INTRODUCTION Thank you for selecting Community’s SONUS Series. SONUS is a family of affordable, linear-response loudspeakers designed for use in applications requiring controlled coverage patterns, high-impact power response, with clear and intelligible sonic output. All models are designed with portability in mind, but they are equally effective in permanent or semi- permanent installations. -
Page 8: Unpacking And Inspection
Your Community dealer and the factory will try to help in any way they can, but it is the responsibility of the party receiving the shipment to file the damage claim. -
Page 9: Sonus Specifications
46.5lbs / 21.1kg 53lbs / 24kg 58lbs / 26.3kg 89lbs / 40.4kg 127lbs / 57.6kg Due to ongoing development, specifications are subject to change without notice. Note: *denotes half-space sensitivity. Community SONUS Series - Operation and Installation Manual - Page 9... -
Page 10: Getting Acquainted
GETTING ACQUAINTED Figure 1: Physical Features of Typical SONUS Full-Range Models SONUS Full-Range Input Panel Community SONUS Series - Operation and Installation Manual - Page 10... -
Page 11: Physical Features Of Sonus Full-Range Models
PRESENCE SWITCH (Flat), RIGHT is VOICE/SPEECH). Re-voices the loudspeaker’s tonal balance for increased articulation in the vocal range. 100 lbs (45.4 kg) Working Load Limit / 10:1 safety factor Community SONUS Series - Operation and Installation Manual - Page 11... -
Page 12: Physical Features Of Typical Sonus Subwoofers
Figure 2: Physical Features of Typical SONUS Subwoofers (Note: the SONUS-215S Subwoofer is not equipped with wheels) SONUS Subwoofer Input Panel Community SONUS Series - Operation and Installation Manual - Page 12... -
Page 13: Physical Features Of Sonus Subwoofers
INDICATOR driver damage. 100 lbs (45.4 kg) Working Load Limit / 10:1 safety factor 100 lbs (45.4 kg) Working Load Limit / 10:1 safety factor Community SONUS Series - Operation and Installation Manual - Page 13... -
Page 14: General Description
GENERAL DESCRIPTION SONUS Series loudspeakers are designed for demanding day-to-day use in a wide range of both portable applications and fixed installations. Their high quality driver components are housed in rugged, acoustically inert enclosures fitted with convenient carrying handles, rigging fittings, and support stand receptacles. SONUS systems are characterized by a high-power, low distortion linear response that provides exceptional musicality and speech intelligibility. -
Page 15: High-Frequency Presence Switch
Because the first and second stages of Community’s DYNA-TECH circuits are not thermally sensitive, they react nearly instantaneously to protect against excessive increases in level. -
Page 16: Selectable High-Pass Output On Subwoofers
HIGH-PASS position, where the load impedance has been increased by about 50% by the subwoofer’s internal crossover circuit, thereby protecting the amplifier from premature clipping and potential failure. Community SONUS Series - Operation and Installation Manual - Page 16... -
Page 17: Graph Depicting Response Of High-Pass / Flat Switch
Bi-amping provides the benefit of reducing the overall power demand on each amplifier channel while reducing intermodulation distortion. Community SONUS Series - Operation and Installation Manual - Page 17... -
Page 18: Cool-Coil™ Technology
This air passing through the pole vent helps to cool the magnet structure. Community has improved on this common cooling method by introducing an airflow director (US patent 6,390,231) into the air path. -
Page 19: High-Pass Filters
Please contact Community or your Community dealer for up-to-date recommendations regarding specific types and models of available DSP products. Community SONUS Series - Operation and Installation Manual - Page 19... -
Page 20: Using Protective Limiters
(see section on Amplifier Clipping on page 30 for more information on driver damage caused by clipping.) Because of this, we can offer only general guidelines on how to set up your system. Community SONUS Series - Operation and Installation Manual - Page 20... - Page 21 Obviously, it’s safer to err on the conservative side, as the opposite approach may result in driver damage or complete system failure. Community SONUS Series - Operation and Installation Manual - Page 21...
-
Page 22: Connecting The Amplifier To The Loudspeaker
CONNECTING THE AMPLIFIER TO THE LOUDSPEAKER All SONUS Series loudspeakers come with two methods of connecting the amplifier to the loudspeaker. One is a pair of industry standard NL4 type locking connectors, and the other is a pair of ¼” jacks. With the exception of the SONUS subwoofers, which feature a switchable High-Pass output, the four connectors are wired in parallel with each other on all full-range models. -
Page 23: Sonus Full-Range Input Panel
Figure 6: SONUS Full-Range Input Panel The following figure is an example of the input panel used on full-range SONUS loudspeakers. Full-Range Input Panel (Typical) Community SONUS Series - Operation and Installation Manual - Page 23... - Page 24 The result will be less total acoustic power output than if only one loudspeaker were used by itself. Community SONUS Series - Operation and Installation Manual - Page 24...
-
Page 25: Sonus Subwoofer Input Panel
These hi-pass outputs exhibit the response that is discussed in the section of this manual entitled “SELECTABLE HIGH-PASS OUTPUTS ON SUBWOOFERS.” This Section can be found on Page 16. Community SONUS Series - Operation and Installation Manual - Page 25... -
Page 26: Single Amp Connections
If the amplifier channels are inadvertently swapped, the low-frequency content could cause damage to the high-frequency driver or your amplifier. At best, it will simply sound very bad. Community SONUS Series - Operation and Installation Manual - Page 26... - Page 27 Wire and cable manufacturers offer multi-conductor cables with 30 or more high current conductors Community SONUS Series - Operation and Installation Manual - Page 27...
- Page 28 The resistance of the wire, the impedance of the load, and the output voltage of the amplifier will determine how much loss occurs in the wire. These parameters also govern the damping factor of the amplifier/speaker combination (more on this later). Community SONUS Series - Operation and Installation Manual - Page 28...
- Page 29 Therefore, keeping cable lengths as short as possible, is the most practical and cost-effective way to maintain a respectable damping factor without incurring undue difficulties. Community SONUS Series - Operation and Installation Manual - Page 29...
-
Page 30: Effect Of Clipping On A Sinewave
When driven hard enough its output voltage can’t swing any higher, so the resultant waveform is said to be clipped (see Figure 10 below). Figure 10: Effect of Clipping on a Sinewave Community SONUS Series - Operation and Installation Manual - Page 30... - Page 31 Tolerance to AC Mains Voltage Fluctuation: Different designs of amplifiers exhibit widely differing behavior under fluctuating voltages. Those that are built with linear power supplies will typically exhibit a loss of power output capability when the AC mains voltage Community SONUS Series - Operation and Installation Manual - Page 31...
-
Page 32: Sonus Applications
SONUS APPLICATIONS The SONUS Series of loudspeakers can fulfill numerous application requirements. Some of these are: Sound Reinforcement in Houses of Worship •... -
Page 33: Positioning Subwoofers
100 Hz wave is approximately 11.3 feet in length. These extremely long wavelengths cause behavior that’s quite different from their shorter mid and high- frequency counterparts. Community SONUS Series - Operation and Installation Manual - Page 33... -
Page 34: Effect Of Boundary Surfaces On Power Output
A thorough understanding of how low-frequency waves transmit in acoustical environments is very helpful when designing and installing optimum sound systems. We recommend reading, “Fundamentals of Sound” and “Psychoacoustics” by F. Alton Everest in the “Handbook for Sound Engineers” published by Howard Sams & Co. Community SONUS Series - Operation and Installation Manual - Page 34... - Page 35 If there is no discernable difference or only a very minimal difference in the measured or audible response when the polarity is reversed, it indicates one of two things: Community SONUS Series - Operation and Installation Manual - Page 35...
- Page 36 All that cancelled energy uses power unnecessarily! Community SONUS Series - Operation and Installation Manual - Page 36...
-
Page 37: System Equalization
The three corrective methods referred to in the text, equalizing, high-passing, and increasing the slope of the crossover, are all various implementations of equalization. Community SONUS Series - Operation and Installation Manual - Page 37... - Page 38 No matter what technique you use you can’t, of course, EQ a room; you can only EQ the sound system in the room. But much of the world refers to the process of equalizing a system as ‘room-tuning.’ Community SONUS Series - Operation and Installation Manual - Page 38...
- Page 39 In a real life situation the primary room resonant frequency would tend to be much lower, but it’s easier to illustrate the principal in a range where the graphic equalizer has more available bands. Community SONUS Series - Operation and Installation Manual - Page 39...
-
Page 40: Rigging And Mounting Sonus Enclosures
Rigging that is improperly installed is like a time bomb; sooner or later it will fail, with the potential to Community SONUS Series - Operation and Installation Manual - Page 40... - Page 41 Any modifications made to any parts or materials manufactured or supplied by Community shall immediately void all pledges of warranty or surety, related in any way to the safe use of those parts and materials.
- Page 42 Therefore, in order to insure safety, the total potential stress subjected to the safety cable and any components that are used with it, should always be a small fraction of the ultimate breaking strength of the weakest component. Community SONUS Series - Operation and Installation Manual - Page 42...
-
Page 43: Load Angles
It also allows the load to easily tip or shift its weight in the hitch. It should always be avoided. Figure 13: Never Reeve Cables! Community SONUS Series - Operation and Installation Manual - Page 43... - Page 44 • For loudspeaker rigging, only rated forged steel shoulder eyebolts purchased from a reputable manufacturer, should be utilized. Community offers this style of eyebolt at a reasonable cost. The SWL or WLL rating of any eyebolt is based on a straight line pull. If the load angle varies from that of a straight line, the load rating rapidly decreases.
-
Page 45: Never Reeve Cables
Threaded fasteners are often used in rigging and mounting systems. As with eyebolts, many of Community’s optional mounting brackets, yokes, and rigging plates utilize threaded fasteners. The fasteners that come with each Community rigging kit are load rated to a sufficient strength to be safe when used within their specified parameters. If replacement bolts are needed, or if additional bolts are required for mounting a bracket to a beam, wall, or ceiling etc., such bolts should be purchased from a reputable manufacturer... - Page 46 Always use your best judgment, just as you do when driving at high speeds in traffic. The life you save may be your own. Community SONUS Series - Operation and Installation Manual - Page 46...
-
Page 47: Sonus Rigging And Mounting Hardware
SONUS RIGGING AND MOUNTING HARDWARE Below are descriptions of mounting brackets and suspension kits manufactured by Community for use with SONUS loudspeakers. In this section the terms “suspension” and “fly” mean the same thing: to elevate the loudspeaker enclosure above the ground surface. - Page 48 NOT identical. It is critically important that you use fasteners with the proper thread pitch. All SONUS Series loudspeakers use the M10 metric fasteners. DO NOT USE THE 3/8-16 UNC FASTENERS! It is very easy to mistake one thread pitch for the other.
-
Page 49: Vertical Fly Kit: Vfkit
10mm Metric fasteners. These fasteners are very similar but they are NOT identical. It is critically important that you use the M10 fasteners with all SONUS Series enclosures. DO NOT USE THE 3/8-16 UNC fasteners under any circumstances. Use of fasteners with the incorrect thread pitch could result in serious harm, injury or death, because the threads will not hold securely under load. -
Page 50: Vfkit Vertical Fly Kit Assembly
Now, position the enclosures so that their rear corners are touching and lined up evenly with each other. Tighten the bolts to a setting of 10 to 12 foot-lbs using a torque wrench. Do not overtighten! Figure 16: VFKIT Vertical Fly Kit Assembly Community SONUS Series - Operation and Installation Manual - Page 50... - Page 51 The proper solution is to provide separate cables for each one of the eyebolts. Community SONUS Series - Operation and Installation Manual - Page 51...
-
Page 52: Rigging Three Enclosures With The Vfkit
Figure 18 below. Note that every enclosure has at least two live hang points attached to it. Figure 18: Rigging Three Enclosures with the VFKIT Community SONUS Series - Operation and Installation Manual - Page 52... -
Page 53: Rigging Four Enclosures With The Vfkit
Note that every enclosure has at least two live hang points attached to it. Figure 19: Rigging Four Enclosures with the VFKIT Community SONUS Series - Operation and Installation Manual - Page 53... -
Page 54: Available Accessories
Pole is 5’ x 1⅜” steel with a black finish. Part # SB5. Eyebolt Kit Suspend your SONUS loudspeakers safely and easily. Four eyebolts and four cup-washers included. Part # M10EYBLTKIT. Community SONUS Series - Operation and Installation Manual - Page 54... -
Page 55: Servicing Sonus Loudspeakers
Check to make sure that the audio signal to the amplifier is high enough to drive it properly. Check all volume/level controls and gain switches in the system including the amplifier input attenuator. Community SONUS Series - Operation and Installation Manual - Page 55... - Page 56 Reduce the volume level to the loudspeaker. Community SONUS Series - Operation and Installation Manual - Page 56...
-
Page 57: Replacement Parts
REPLACEMENT PARTS The following replacement parts may be ordered through authorized Community Service Stations. Please contact Community for your nearest Service Station. SONUS-1296 SONUS-1596 Part Number Description Part Number Description 108920R SPEAKER, 12" 108921R SPEAKER, 15" HF DRIVER UC-1 HF DRIVER UC-1 108190R HORN, HF SONUS 12/15"... -
Page 58: Warranty Information And Service
It does not apply to a unit that has been subjected to abuse, accident, modification, improper handling/installation, or repairs made without factory authorization or by anyone other than authorized Community Field Service Stations. This warranty is void if the serial number has been defaced, altered or removed. - Page 59 This Community warranty is not extended by the length of time which an owner is deprived of the use of the product. Repairs and replacement parts provided under the terms of this warranty shall carry only the remaining portion of the warranty.
