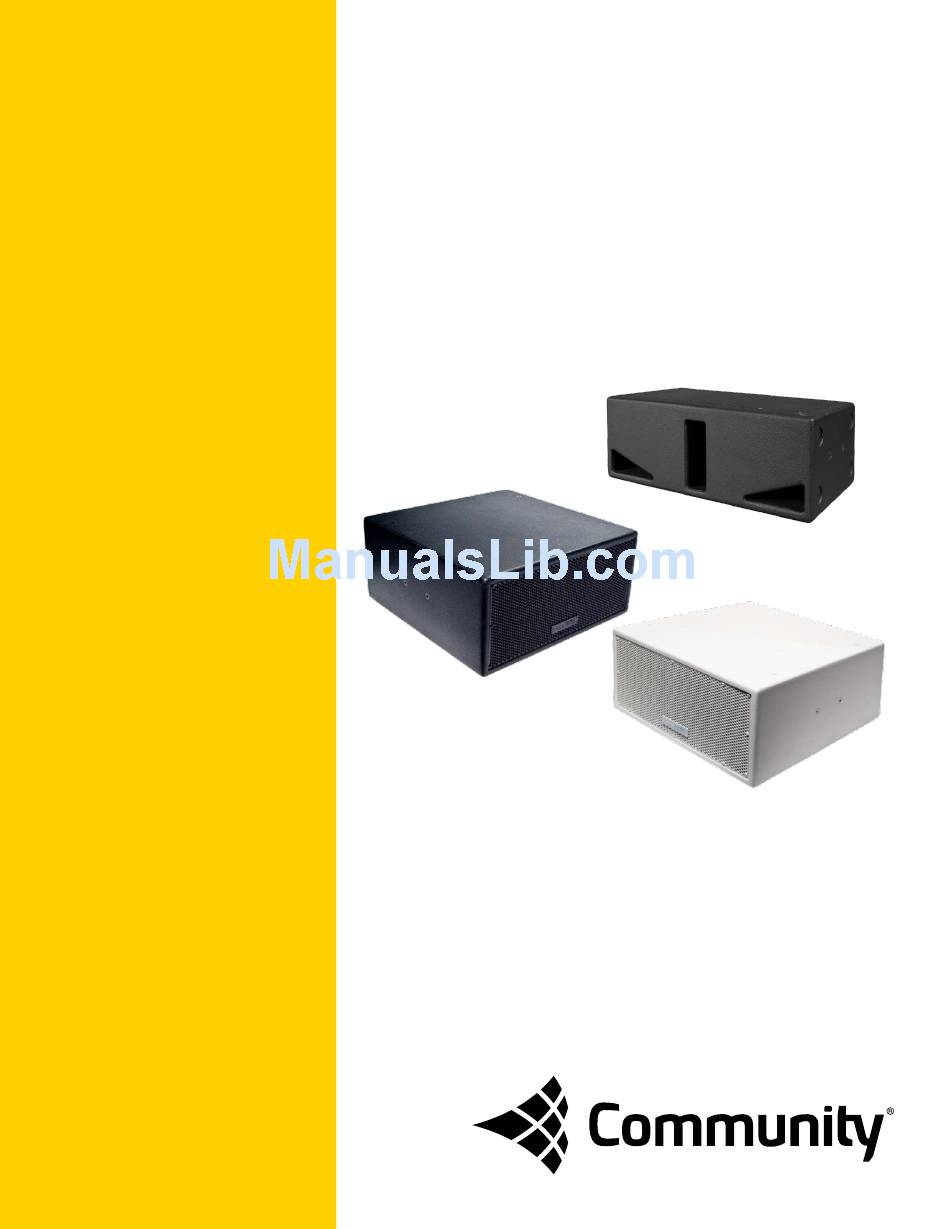

- Page 1 V SERIES Installation and Operation Guide VLF208 VLF208LV VLF208LV Models VLF208 VLF208LV communitypro.com...
-
Page 2: Important Safety Instructions
If you have any questions or do not understand the meaning of to file the damage claim. these terms, do not proceed with installation. Contact your local dealer, distributor, or call Community It is always a good idea to retain the carton and directly for assistance. -
Page 3: Product Representation

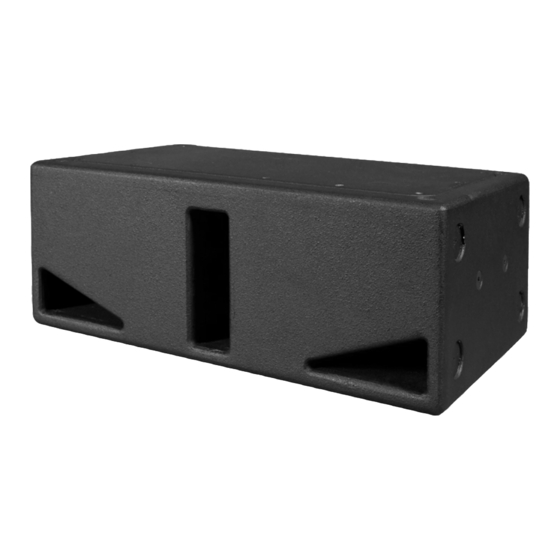

PRODUCT REPRESENTATION VLF208 SUBWOOFER Input panel Rear M10 mounting points (8) Rubber Feet (4) (User installed) 4 -top, 2 each side panel Front Attach feet here M10 mounting points when used vertically VLF208LV SUBWOOFER Input panel M10 mounting points (12) -
Page 4: Connections And Installation
Typically, only one cycle of “tighten – wait – re-tighten” is required for a secure connection. The VLF208 has one (1) NL4-type locking connector, and the VLF208LV has two Figure 1b. NL4-Type Connector (2) NL4-type locking connectors (Figure 2). -
Page 5: Optional Rubber Feet
OPTIONAL RUBBER FEET (VLF208 onLy Four (4) rubber feet and screws are included with the VLF208. There are 4 circular depressions in the bottom of the cabinet, and on one side panel for VLF2 vertical installation. Place a foot in each depression on the appropriate side and Mate screw it to the cabinet. -
Page 6: Rigging / Suspension And Safety
Always consult with the building architect or structural engineer to assure the ability of the structure to support the loudspeaker system. The second area of responsibility is the loudspeaker itself. Community certifies its loudspeaker systems and rigging accessories for suspension when they are properly installed according to our published guidelines. - Page 7 ACCESSORIES VLF-Y208 MOUNTING YOKE BRACKET The VLF-Y208 yoke bracket is designed to mount to the VLF208 subwoofer in either a vertical or horizontal orientation. It is engineered to provide a high margin of safety when supporting the VLF208 subwoofer. Yokes are steel, finished with a durable double-layer powder coat in either black or white.
-
Page 8: Performance And Specifications
USE A DIGITAL SIGNAL PROCESSOR For best performance, loudspeaker protection and system longevity, a digital signal processor (DSP ) must be used with all V SERIES loudspeakers. Community's dSPEC226 processor(s) and Resyn® software contain all of the information (high pass filters, limiters, factory tunings) and DSP settings to fully optimize your system.
