Factory Reset; Default System Settings; Troubleshooting - Thecus N3200 Manual

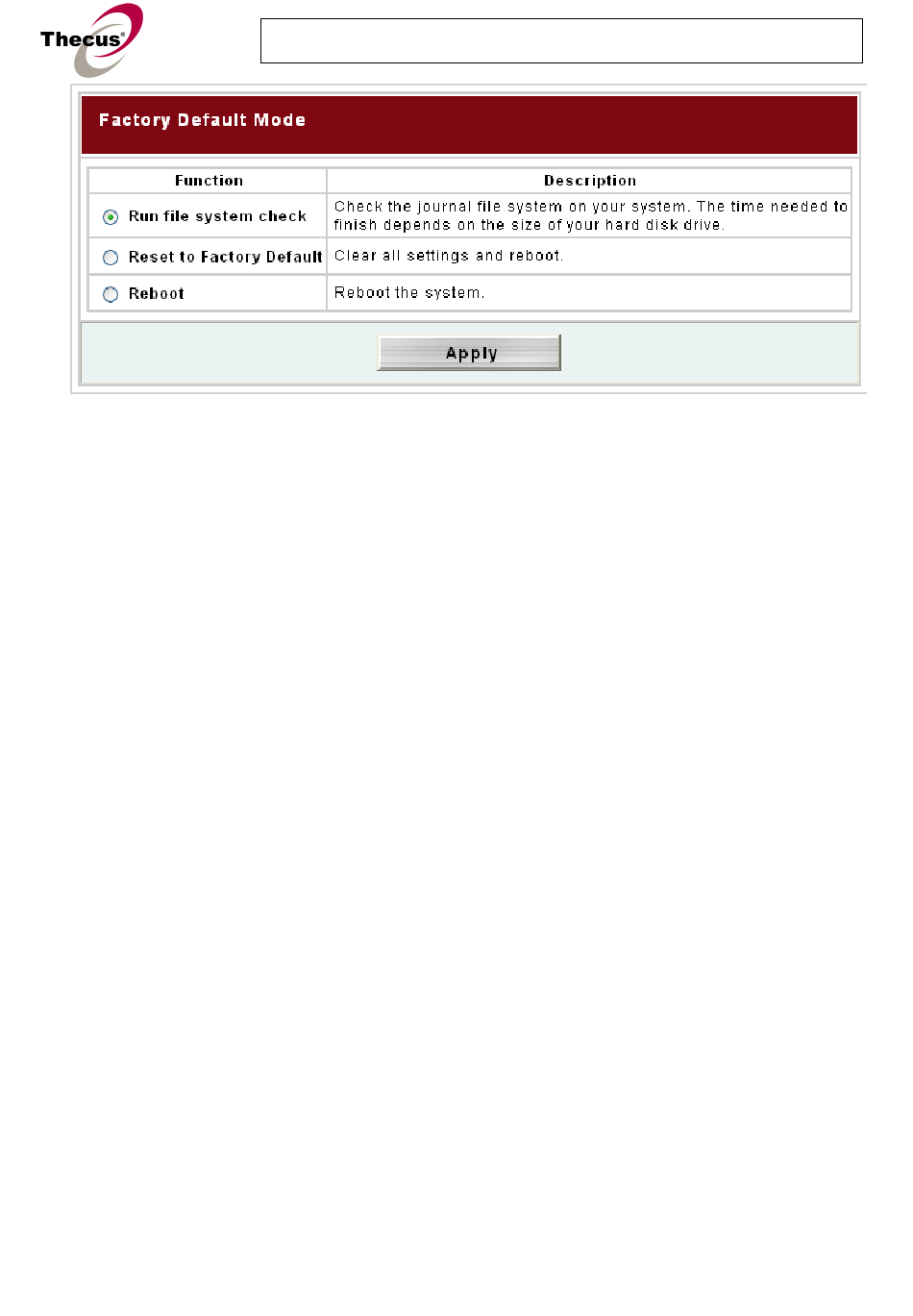

Please select "Reset to Factory Default" option and press the apply button, the system will be
reset.
When select "Reset to Factory Default" option, the system will be reset. Below are the default
system settings:
Admin password → admin
LAN 1 IP address → 192.168.1.100
LAN 1 IP Gateway → 192.168.1.1
LAN 1 Jumbo Frame Support → Off
LAN 2 IP → 192.168.2.254
LAN 2 Jumbo Frame Support → Off
HTTP Port → 80
HTTPS port → 443
2-5. Suppose the N3200 is bad. If the power LCD message doesn't showing IP address and
both system and power fans work fine after power button pressed, the motherboard
needs to be checked and repaired. Otherwise, the power supply unit has problems.
N3200 simple diagnosis flowchart
N3200 simple diagnosis flowchart
2/3 01/Jul/2008
