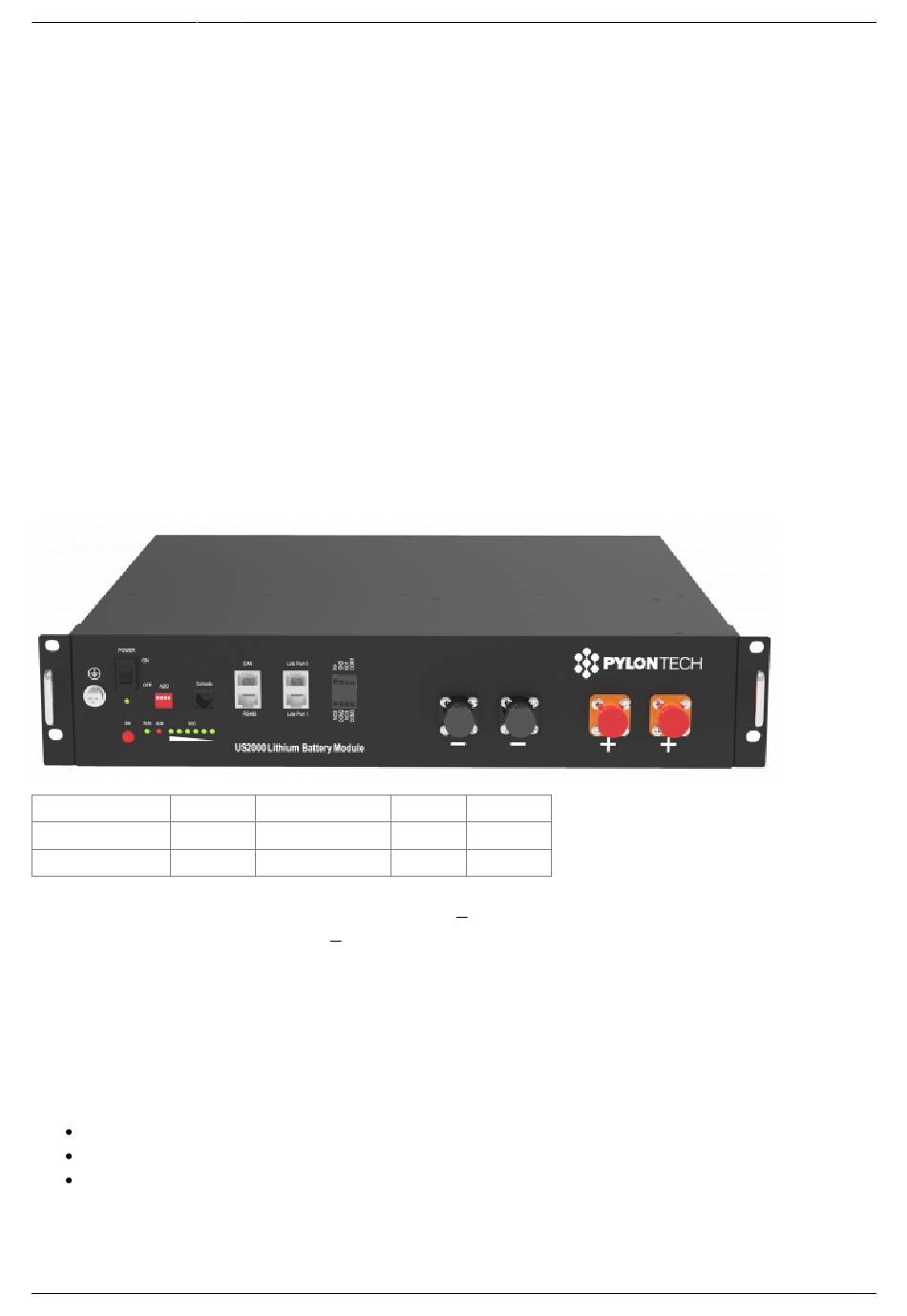

2020-11-10 02:54

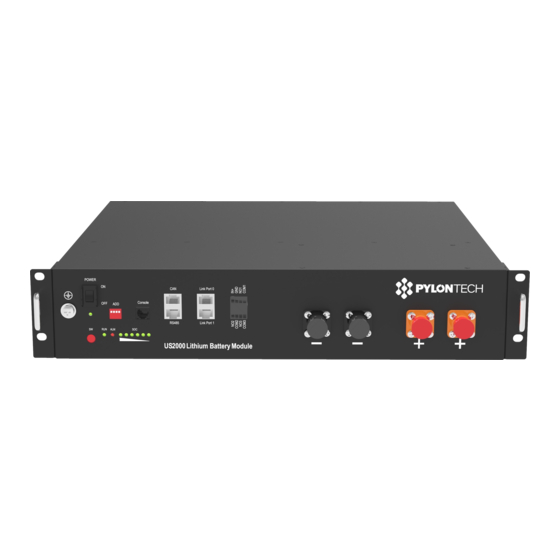

Victron & Pylontech UP2500, US2000,
US3000, Phantom-S & Force-L1
The combination of Victron products with Pylontech lithium batteries has been tested and certified by
the Victron and Pylontech R&D departments.
General information about the battery is found in Pylontech's documentation.
This manual is intended to be used in conjunction with the product manual supplied by Pylontech. It
provides additional and specific information regarding integration with Victron systems.
The Pylontech includes a Battery Management System (BMS) with each battery module. This
interfaces with the Victron
1. Product & system compatibility
Battery UP2500* US2000 (Plus) US3000 Force-L1
Nominal voltage
24V
Module capacity 2.55 kWh
* Note that UP2500 came in two versions, UP2500NA01V00101 does not have a CANBUS port, and IS
NOT supported by Victron. UP2500NB01V00101 released April 2020 has the CANBUS port and IS
supported.
1.1 Offgrid, Backup and Energy Storage Systems are possible
Victron + Pylontech can be used for the following system types:
Off-grid
(DVCC)
Grid Backup
(DVCC
Energy Storage Systems (ESS) - Self Consumption
Victron Energy - https://www.victronenergy.com/live/
1/12
GX device
and can support multiple battery modules connected in parallel.
48V
2.4 kWh
or
ESS)
Victron & Pylontech UP2500, US2000, US3000, Phantom-S & Force-L1
48V
48V
3.5 kWh 3.55 kWh
(ESS - Start
page)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Victron energy Pylontech UP2500
Summary of Contents for Victron energy Pylontech UP2500
- Page 1 2020-11-10 02:54 1/12 Victron & Pylontech UP2500, US2000, US3000, Phantom-S & Force-L1 Victron & Pylontech UP2500, US2000, US3000, Phantom-S & Force-L1 The combination of Victron products with Pylontech lithium batteries has been tested and certified by the Victron and Pylontech R&D departments.
- Page 2 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1594302289 2020-07-09 15:44 1.2 A GX-device is required, eg Cerbo GX or Venus GX (VGX) It is essential to use the CAN-bus connection of the GX device (e.g. Cerbo GX or CCGX) with the batteries for the keep-alive signal, communication of charge and discharge limits, error codes and state of charge.
-
Page 3: Can-Bus Wiring
2020-11-10 02:54 3/12 Victron & Pylontech UP2500, US2000, US3000, Phantom-S & Force-L1 Old model VE.Can MPPTs (pre 2019) are not supported. 2. Minimum Battery Sizing Recommendations The charge and discharge rates are managed automatically by the Pylontech battery and device. - Page 4 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1594302289 2020-07-09 15:44 You can connect multiple battery modules together to form a single large battery by connecting the RJ-45 cable supplied by Pylontech using the link ports on the battery. This is shown in more detail in example wiring diagram and Pylontech manual.
- Page 5 2020-11-10 02:54 5/12 Victron & Pylontech UP2500, US2000, US3000, Phantom-S & Force-L1 attempting firmware updates or settings changes on other devices if they depend on the power supply from the battery. Without this connection, the battery may turn off unexpectedly.
- Page 6 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1594302289 2020-07-09 15:44 This parameters page is also a good place to check that all batteries are connected and working properly. In see the individual battery data sheet for the normal working conditions, e.g. the current limit per cell. For example, If each battery is rated to 25A charge current, and the menu shows a 75A charge current limit ( 75 / 25 = 3 ) means there are 3 Pylontech battery modules connected.
- Page 7 2020-11-10 02:54 7/12 Victron & Pylontech UP2500, US2000, US3000, Phantom-S & Force-L1 back to 51.0 V. Note For off-grid use: ignore the 'bms assistant required' warning. 5.3 Inverter Settings In the Inverter tab of VEConfigure VEConfigure Inverter Parameter Setting DC input low shut-down...
-
Page 8: Example Wiring Diagram
Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1594302289 2020-07-09 15:44 regular deep cycle. See ESS FAQ Q5 - about suppressing the low-voltage alarm. Hardware Protection Points In normal operation, the charge parameter limits are set by the Pylontech battery and communicated through the system by the GX device to the inverter/charger and MPPT. -
Page 9: Troubleshooting
2020-11-10 02:54 9/12 Victron & Pylontech UP2500, US2000, US3000, Phantom-S & Force-L1 8. Troubleshooting If the system is not operating correctly, go through these steps. Step 0. If the Inverter/Charger or GX device does not switch on As a safety precaution, the inverter/charger will not switch on if the GX device is not on. - Page 10 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1594302289 2020-07-09 15:44 connection. Once the inverter/charger has started, it should supply power to the DC terminals and this should start the GX device and Pylontech battery again. You will need to then reconnect the VE.Bus Communications cable back to the inverter/charger and device.
-
Page 11: Further Information
2020-11-10 02:54 11/12 Victron & Pylontech UP2500, US2000, US3000, Phantom-S & Force-L1 grid, the inverter can draw more than the 25A limit to run the loads, make sure you have sufficient batteries installed to keep the load per battery around this limit. - Page 12 Further community discussion about installing and using Pylontech and Victron can found at Victron Community, use the topic label 'Pylontech'. DISQUS View the discussion thread. From: https://www.victronenergy.com/live/ - Victron Energy Permanent link: https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1594302289 Last update: 2020-07-09 15:44 https://www.victronenergy.com/live/ Printed on 2020-11-10 02:54...
