Summary of Contents for Victron energy BSLBATT

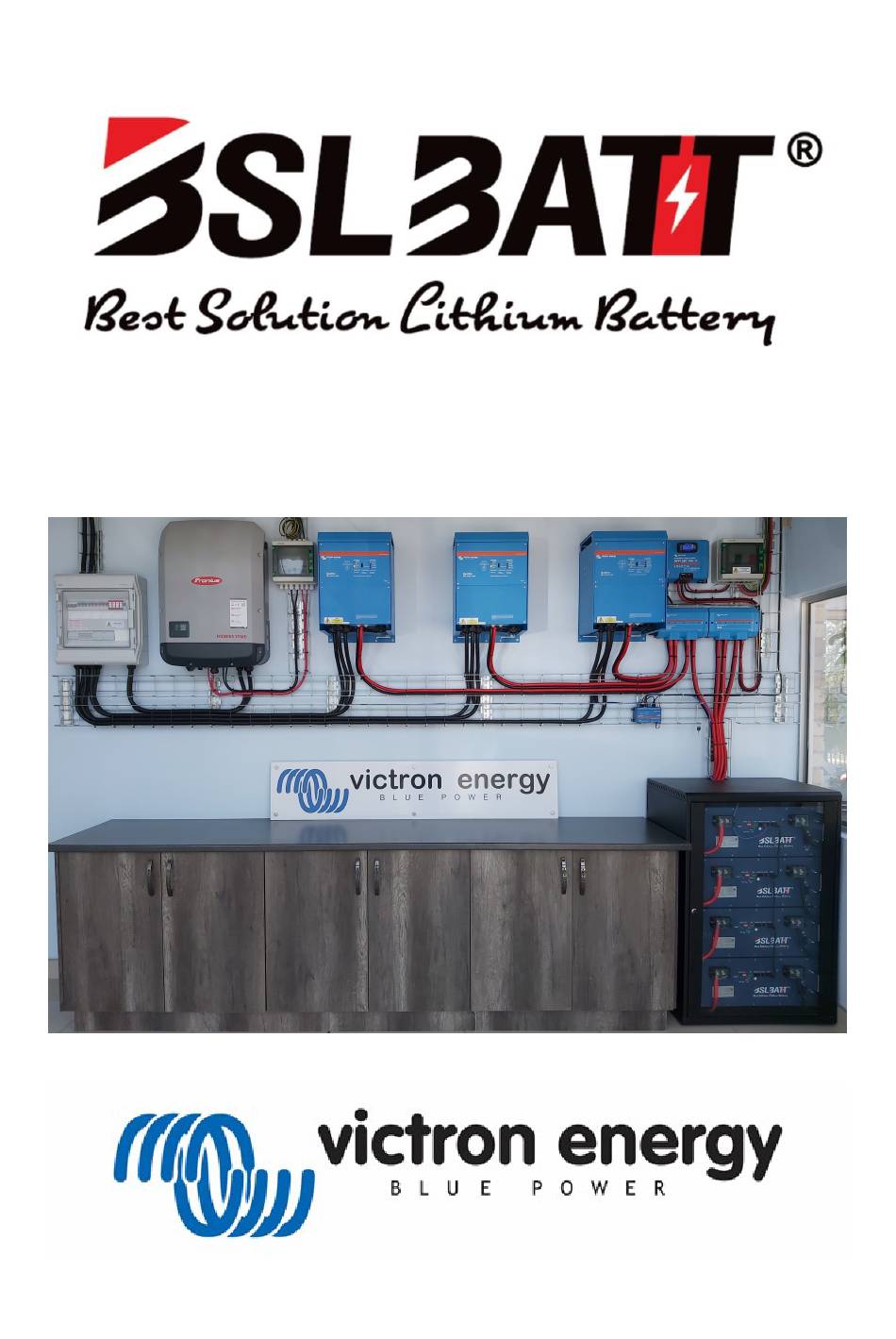

  • Page 1 Installation & set-up guide...
  • Page 2 SAFETY GUIDELINES Work or maintenance on the BSL battery should be carried out by qualified personnel only. Do not attempt to open or dismantle battery and/or cells. The electrolyte contained in the battery cells is highly corrosive. In the event of any damage to or leakage from the cells, treat contents with care, do not allow contact with exposed skin or eyes.
  • Page 3: Table Of Contents

    BSL & Victron set-up guide Page i Contents 1 Pin out diagram 2 Battery set-up 2.1 General ........2.1.1 Turning battery on and off .
  • Page 4: Pin Out Diagram

    BSL & Victron set-up guide Page 1 Pin out diagram Figure 1: Pin-out diagram for 5.1kWh BSL battery. A - Power indicator light B - Run light (battery activity) C - Alarm indicator light D - State of charge indicator lights E - Reset switch (BMS Power button) F - Dip switches for parallel connection G - Dry Contacts (mostly unused)
  • Page 5: Battery Set-Up

    BSL & Victron set-up guide Page 2 Battery set-up General 2.1.1 Turning battery on and off The battery can be switched on or off by holding down the small recessed button marked “RESET” for around 3 seconds. 2.1.2 CAN communication To connect a VE.Can or CAN-bus BMS “Type B”...
  • Page 6: Multiple Batteries

    BSL & Victron set-up guide Page 3 Multiple batteries 2.2.1 Max number of parallel batteries A maximum of 15 batteries can be connected in parallel. Each battery will require a unique binary address which can be setup via the dip-switches located on the front of the battery.
  • Page 7: Dip Switch Settings For Multiple Batteries (5.1Kwh, 6.4Kwh, 10.2Kwh)

    BSL & Victron set-up guide Page 4 2.2.4 Dip switch settings for multiple batteries (5.1kWh, 6.4kWh, 10.2kWh) Figure 2: Dip switch set up for multiple batteries 2.2.5 Dip switch settings for multiple batteries (8.2kWh) Figure 3: Dip switch set up for multiple batteries...
  • Page 8: Inverter Set-Up

    BSL & Victron set-up guide Page 5 Inverter set-up Batteries per inverter size 3.1.1 5.1kWh (100Ah) Inverter size Recommended N.O. batteries Minimum N.O. of batteries 15kVA 10kVA 8kVA 5kVA 3kVA 3.1.2 6.4kWh (125Ah) Inverter size Recommended N.O. batteries Minimum N.O. of batteries 15kVA 10kVA 8kVA...
  • Page 9: Battery Set-Up On Victron Gx Device

    BSL & Victron set-up guide Page 6 Battery set-up on Victron GX device 1. The VE.Can to CAN-bus BMS Type B cable needs to be connected to the VE-Can port on the GX device and the second unused VE.Can port needs to be terminated with the Victron blue terminator.
  • Page 10: Inverter Settings (Victron)

    BSL & Victron set-up guide Page 7 Inverter settings (Victron) General Tab Grid Tab...
  • Page 11: Inverter Tab

    BSL & Victron set-up guide Page 8 Inverter Tab Charger Tab...
  • Page 12: Assistant Tab (A)

    BSL & Victron set-up guide Page 9 Assistant tab (a) Assistant tab (b)
  • Page 13: Assistant Tab (C)

    BSL & Victron set-up guide Page 10 Assistant tab (c) Assistant tab (d)
  • Page 14: Assistant Tab (E)

    BSL & Victron set-up guide Page 11 Assistant tab (e) 4.10 Assistant tab (f )
  • Page 15: Assistant Tab (G)

    BSL & Victron set-up guide Page 12 4.11 Assistant tab (g) 4.12 Assistant tab (h)
