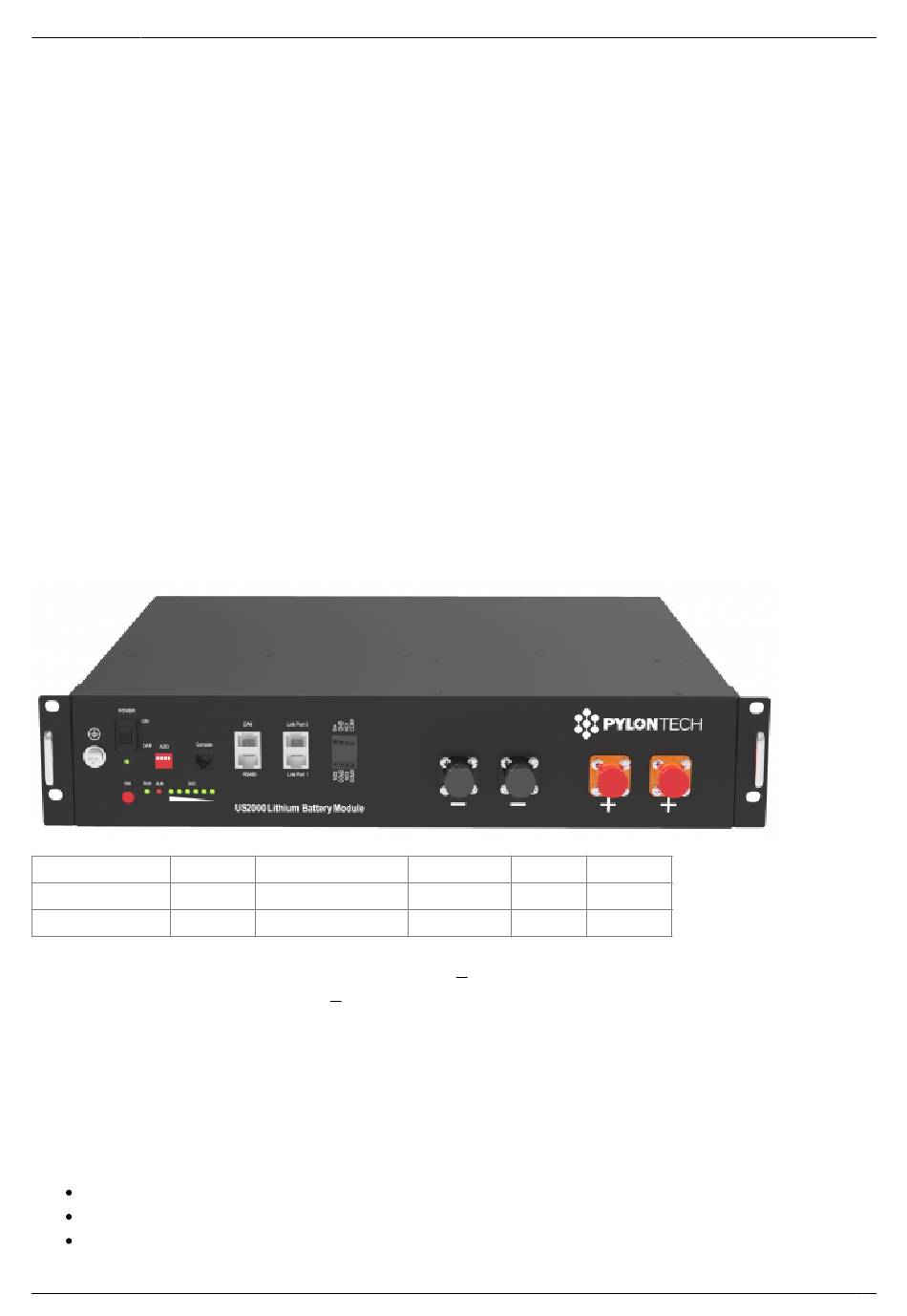

Victron & Pylontech UP2500, US2000, US3000, US2000C, US3000C, US5000, US5000B, UF5000, Pelio-L, UP5000,
2024-12-05 20:13 1/12
Victron & Pylontech UP2500, US2000,
US3000, US2000C, US3000C, UP5000,
Phantom-S & Force-L1
The combination of Victron products with Pylontech lithium batteries has been tested and certified by
the Victron and Pylontech R&D departments.
General information about the battery is found in Pylontech's documentation.
This manual is intended to be used in conjunction with the product manual supplied by Pylontech. It
provides additional and specific information regarding integration with Victron systems.
The Pylontech includes a Battery Management System (BMS) with each battery module. This
interfaces with the Victron
1. Product & system compatibility
Battery UP2500* US2000 (Plus/C) US3000(C) UP5000 Force-L1
Nominal voltage
24V
Module capacity 2.55 kWh
* Note that UP2500 came in two versions, UP2500NA01V00101 does not have a CANBUS port, and IS
NOT supported by Victron. UP2500NB01V00101 released April 2020 has the CANBUS port and IS
supported.
1.1 Offgrid, Backup and Energy Storage Systems are possible
Victron + Pylontech can be used for the following system types:
Off-grid
(DVCC)
Grid Backup
(DVCC
Energy Storage Systems (ESS) - Self Consumption
Victron Energy - https://www.victronenergy.com/live/
GX device
and can support multiple battery modules connected in parallel.
48V
2.4 kWh
or
ESS)
48V
48V
48V
3.5 kWh 4.8 kwh 3.55 kWh
(ESS - Start
page)
Phantom-S, Force-L1 & L2
Advertisement
Related Manuals for Victron energy Pylontech UF5000
Summary of Contents for Victron energy Pylontech UF5000
- Page 1 1.1 Offgrid, Backup and Energy Storage Systems are possible Victron + Pylontech can be used for the following system types: Off-grid (DVCC) Grid Backup (DVCC ESS) Energy Storage Systems (ESS) - Self Consumption (ESS - Start page) Victron Energy - https://www.victronenergy.com/live/...
- Page 2 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1610364321 2021-01-11 12:25 1.2 A GX-device is required, eg Cerbo GX or Venus GX (VGX) It is essential to use the CAN-bus connection of the GX device (e.g. Cerbo GX or CCGX) with the batteries for the keep-alive signal, communication of charge and discharge limits, error codes and state of charge.
- Page 3 2400 1200 4800 Multiplus 48/3000/35 2400 6000 2400 9600 Multiplus 48/5000/70 4000 10000 4800 19200 Quattro 48/8000/110-100/100 6500 16000 7200 28800 Quattro 8000 20000 8400 33600 48/10000/140-100/100 Quattro 12000 25000 12000 48000 48/15000/200-100/100 3. CAN-bus Wiring Victron Energy - https://www.victronenergy.com/live/...
- Page 4 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1610364321 2021-01-11 12:25 You can connect multiple battery modules together to form a single large battery by connecting the RJ-45 cable supplied by Pylontech using the link ports on the battery. This is shown in more detail in example wiring diagram and Pylontech manual.
- Page 5 When the battery is correctly connected this will also set the following values automatically: Venus Settings → System Setup Parameter Value DVCC Shared Voltage Sense Shared Temperature Sense The parameters option within the battery page shows the actual battery charge and discharge limits Victron Energy - https://www.victronenergy.com/live/...
- Page 6 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1610364321 2021-01-11 12:25 This parameters page is also a good place to check that all batteries are connected and working properly. In see the individual battery data sheet for the normal working conditions, e.g. the current limit per cell. For example, If each battery is rated to 25A charge current, and the menu shows a 75A charge current limit ( 75 / 25 = 3 ) means there are 3 Pylontech battery modules connected.
- Page 7 ESS system, please review the ESS Quickstart guide Design and Installation Manual. The settings that are specific to the Pylontech battery in the VEConfigure ESS Assistant are below: Select the externally managed Lithium battery option Victron Energy - https://www.victronenergy.com/live/...
- Page 8 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1610364321 2021-01-11 12:25 ESS Parameter Settings Sustain voltage. Dynamic cut-off values set all values to 46V. Restart offset: 1.2V (Default) Due to the reliability of the grid supply and the behaviour of the sustain voltage threshold in ESS; you may wish to suppress the low voltage pre-alarm warning so that it does not trigger every day on its regular deep cycle.
- Page 9 Victron & Pylontech UP2500, US2000, US3000, US2000C, US3000C, US5000, US5000B, UF5000, Pelio-L, UP5000, 2024-12-05 20:13 9/12 Phantom-S, Force-L1 & L2 The settings below can be set as a precautionary measure. MPPT Parameter Setting Battery voltage. Absorption voltage 52V 7. Example Wiring Diagram Victron Energy - https://www.victronenergy.com/live/...
- Page 10 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1610364321 2021-01-11 12:25 8. Troubleshooting If the system is not operating correctly, go through these steps. Step 0. If the Inverter/Charger or GX device does not switch on As a safety precaution, the inverter/charger will not switch on if the GX device is not on.
- Page 11 It should also be noted that a LiFePO4 cell stores very little additional energy above 3.45V. For this reason we opted to override the BMS and cap the voltage at 52.4V. This sacrifices almost Victron Energy - https://www.victronenergy.com/live/...
- Page 12 Where to Buy Page. Further community discussion about installing and using Pylontech and Victron can found at Victron Community, use the topic label 'Pylontech'. DISQUS ~~DISQUS~~ From: https://www.victronenergy.com/live/ - Victron Energy Permanent link: https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1610364321 Last update: 2021-01-11 12:25 https://www.victronenergy.com/live/ Printed on 2024-12-05 20:13...
