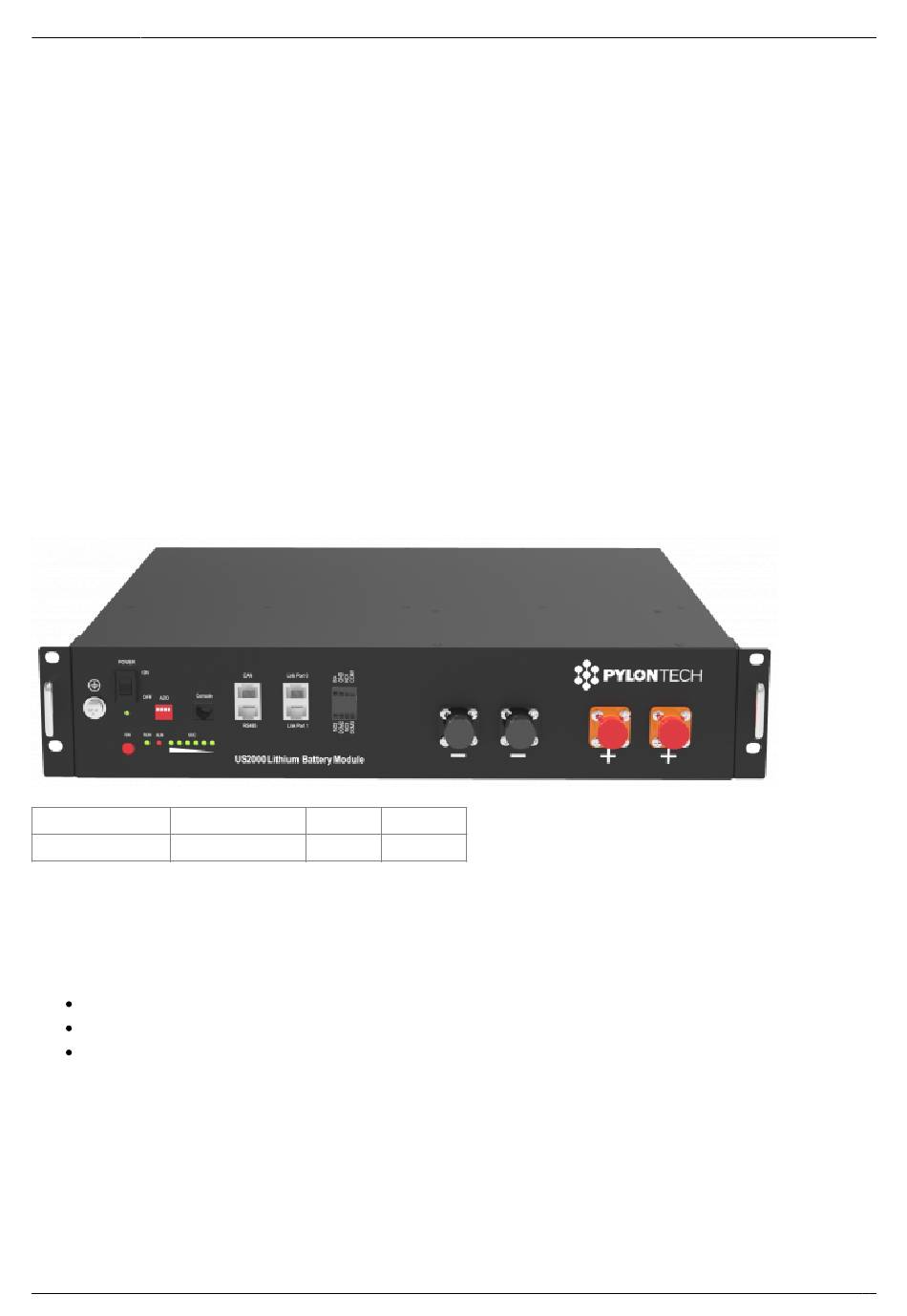

Victron & Pylontech UP2500, US2000, US3000, US2000C, US3000C, US5000, US5000B, US5000C, Pelio-L, UP5000,
2023-09-10 19:37 1/11
Victron & Pylontech US2000, US3000 and
Phantom-S
The combination of Victron products with Pylontech lithium batteries has been tested and certified by
the Victron and Pylontech R&D departments.
General information about the battery is found in Pylontech's documentation.
This manual is intended to be used in conjunction with the product manual supplied by Pylontech. It
provides additional and specific information regarding integration with Victron systems.
The Pylontech includes a Battery Management System (BMS) with each battery module. This
interfaces with the Victron
1. Product & system compatibility
Battery US2000 (Plus) US3000 Force-L1
Module capacity
1.1 Offgrid, Backup and Energy Storage Systems are possible
Victron + Pylontech can be used for the following system types:
Off-grid
Grid Backup
Energy Storage Systems - Self Consumption
1.2 A GX-device is required, eg Color Control GX (CCGX) or Venus GX (VGX)
It is essential to use the CAN-bus connection of the
the keep-alive signal, communication of charge and discharge limits, error codes and state of charge.
The minimum required firmware version for the
Victron Energy - https://www.victronenergy.com/live/
GX device
and can support multiple battery modules connected in parallel.
2.4 kWh 3.5 kWh 3.55 kWh
(ESS - Start
page)
GX device
(eg CCGX or VGX) with the batteries for
Color Control GX
is v2.15. It is highly recommended to
Phantom-S, Force-L1 & L2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Victron energy US5000C
Summary of Contents for Victron energy US5000C
- Page 1 Victron & Pylontech UP2500, US2000, US3000, US2000C, US3000C, US5000, US5000B, US5000C, Pelio-L, UP5000, 2023-09-10 19:37 1/11 Phantom-S, Force-L1 & L2 Victron & Pylontech US2000, US3000 and Phantom-S The combination of Victron products with Pylontech lithium batteries has been tested and certified by the Victron and Pylontech R&D departments.
- Page 2 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1566465362 2019-08-22 11:16 use the latest firmware version on all connected devices, including CCGX/VGX, Inverter/Charger and MPPTs. There are regular updates to improve performance and reliability. 1.3 All 48V Multi, MultiPlus, MultiGrid and Quattro are compatible The minimum firmware version is 422. Though updating to the latest firmware is recommended where possible.
-
Page 3: Can-Bus Wiring
Victron & Pylontech UP2500, US2000, US3000, US2000C, US3000C, US5000, US5000B, US5000C, Pelio-L, UP5000, 2023-09-10 19:37 3/11 Phantom-S, Force-L1 & L2 Inverter Battery Battery peak Number of continuous continuous peak Inverter / Charger Model watts Pylontech watts @ 25 discharge discharge... - Page 4 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1566465362 2019-08-22 11:16 Plug the type B cable with the side which is labeled Battery BMS into the Pylontech CAN port of the master battery. Plug the side labeled Victron VE.Can into the device. Then, plug a VE.Can terminator in the other VE.Can socket on the device.
- Page 5 Victron & Pylontech UP2500, US2000, US3000, US2000C, US3000C, US5000, US5000B, US5000C, Pelio-L, UP5000, 2023-09-10 19:37 5/11 Phantom-S, Force-L1 & L2 4.3 Inverter Settings In the Inverter tab of VEConfigure VEConfigure Inverter Parameter Setting DC input low shut-down DC input low restart DC input low pre-alarm* * The pre-alarm setting is dependant on your preference and on site specific requirements.
- Page 6 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1566465362 2019-08-22 11:16 Hardware Protection Points In normal operation, the charge parameter limits are set by the Pylontech battery and communicated through the system by the GX device to the inverter/charger and MPPT. Low Voltage: When the battery discharges to 44.5V or less, battery protection will turn on. High Voltage: If charging voltage above 54V, battery protection will turn on.
-
Page 7: Example Wiring Diagram
Victron & Pylontech UP2500, US2000, US3000, US2000C, US3000C, US5000, US5000B, US5000C, Pelio-L, UP5000, 2023-09-10 19:37 7/11 Phantom-S, Force-L1 & L2 This parameters page is also a good place to check that all batteries are connected and working properly. In normal working conditions, the current limit is 25A per cell. For example, 75A charge current limit ( 75 / 25 = 3 ) means there are 3 Pylontech battery modules connected. -
Page 8: Troubleshooting
Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1566465362 2019-08-22 11:16 8. Troubleshooting If the system is not operating correctly, go through these steps. Step 0. If the Inverter/Charger or GX device does not switch on As a safety precaution, the inverter/charger will not switch on if the GX device is not on. - Page 9 Victron & Pylontech UP2500, US2000, US3000, US2000C, US3000C, US5000, US5000B, US5000C, Pelio-L, UP5000, 2023-09-10 19:37 9/11 Phantom-S, Force-L1 & L2 You can then start the inverter/charger from an external charge source such as a generator or grid connection. Once the inverter/charger has started, it should supply power to the DC terminals and this...
- Page 10 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1566465362 2019-08-22 11:16 grid, the inverter can draw more than the 25A limit to run the loads, make sure you have sufficient batteries installed to keep the load per battery around this limit. After charging the battery the charge current often changes between 0A and 25A.
-
Page 11: Further Information
Victron & Pylontech UP2500, US2000, US3000, US2000C, US3000C, US5000, US5000B, US5000C, Pelio-L, UP5000, 2023-09-10 19:37 11/11 Phantom-S, Force-L1 & L2 10. Further Information For information about where to buy or find suitably qualified installers, visit the Where to Buy Page.
