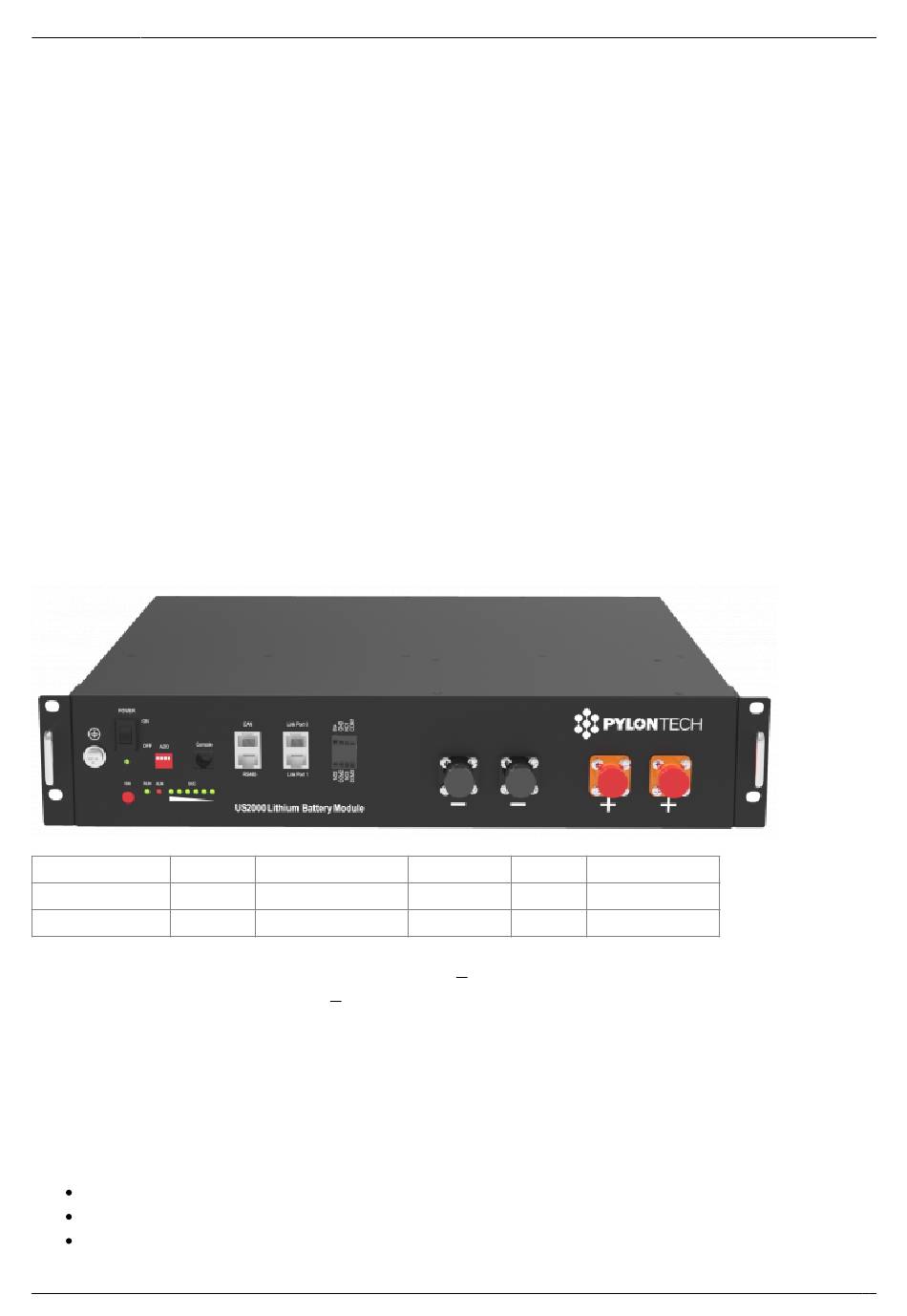

Victron & Pylontech UP2500, US2000, US3000, US2000C, US3000C, US5000, US5000B, UP5000, Phantom-S, Force-
2022-08-21 04:41 1/15
Victron & Pylontech UP2500, US2000,
US3000, US2000C, US3000C, UP5000,
Phantom-S, Force-L1 & L2
The combination of Victron products with Pylontech lithium batteries has been tested and certified by
the Victron and Pylontech R&D departments.
General information about the battery is found in Pylontech's documentation.
This manual is intended to be used in conjunction with the product manual supplied by Pylontech. It
provides additional and specific information regarding integration with Victron systems.

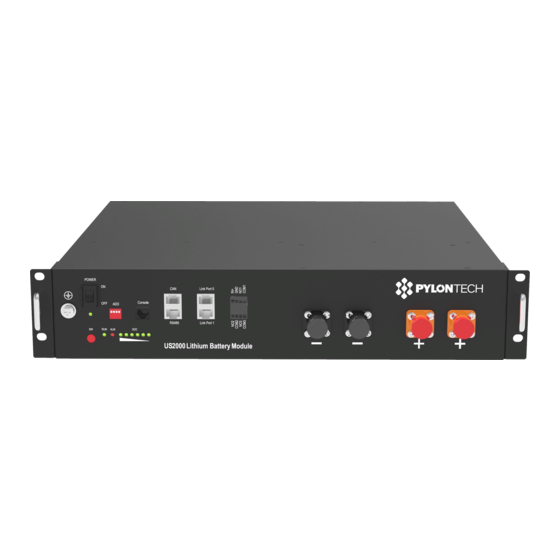

The Pylontech includes a Battery Management System (BMS) with each battery module. This
interfaces with the Victron
1. Product & system compatibility
Battery UP2500* US2000 (Plus/C) US3000(C) UP5000 Force-L1 & L2
Nominal voltage
24V
Module capacity 2.55 kWh
* Note that UP2500 came in two versions, UP2500NA01V00101 does not have a CANBUS port, and IS
NOT supported by Victron. UP2500NB01V00101 released April 2020 has the CANBUS port and IS
supported.
1.1 Offgrid, Backup and Energy Storage Systems are possible
Victron + Pylontech can be used for the following system types:
Off-grid
(DVCC)
Grid Backup
(DVCC
Energy Storage Systems (ESS) - Self Consumption
Victron Energy - https://www.victronenergy.com/live/
GX device
and can support multiple battery modules connected in parallel.
48V
2.4 kWh
or
ESS)
48V
48V
48V
3.5 kWh 4.8 kwh 3.55 kWh
(ESS - Start
page)
L1 & L2
Advertisement
Related Manuals for Victron energy Pylontech US3000
Summary of Contents for Victron energy Pylontech US3000
- Page 1 1.1 Offgrid, Backup and Energy Storage Systems are possible Victron + Pylontech can be used for the following system types: Off-grid (DVCC) Grid Backup (DVCC ESS) Energy Storage Systems (ESS) - Self Consumption (ESS - Start page) Victron Energy - https://www.victronenergy.com/live/...
- Page 2 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1659337101 2022-08-01 08:58 1.2 A GX-device is required, eg Cerbo GX or Venus GX (VGX) It is essential to use the CAN-bus connection of the GX device (e.g. Cerbo GX) - this communicates the keep-alive signal, charge and discharge limits, error codes and state of charge (SOC %) between the batteries and the system.
-
Page 3: Can-Bus Wiring
2400 1200 4800 Multiplus 48/3000/35 2400 6000 2400 9600 Multiplus 48/5000/70 4000 10000 4800 19200 Quattro 48/8000/110-100/100 6500 16000 7200 28800 Quattro 8000 20000 8400 33600 48/10000/140-100/100 Quattro 12000 25000 12000 48000 48/15000/200-100/100 3. CAN-bus Wiring Victron Energy - https://www.victronenergy.com/live/... - Page 4 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1659337101 2022-08-01 08:58 You can connect multiple battery modules together to form a single large battery by connecting the RJ-45 cable supplied by Pylontech using the link ports on the battery. This is shown in more detail in example wiring diagram and Pylontech manual.
- Page 5 After properly wiring and setting the correct CAN-bus speed, the Pylontech will be visible as a battery in the device list. If you have multiple batteries a single entry will show up, which represents all batteries: Victron Energy - https://www.victronenergy.com/live/...
- Page 6 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1659337101 2022-08-01 08:58 Next, go to Settings, DVCC, and configure as follows: Venus Settings → System Setup Parameter Value DVCC Shared Voltage Sense Shared Temperature Sense For more information about the behaviour of DVCC, please see the GX device manual.
- Page 7 GX device, battery charging parameters (e.g. Maximum Charge Current, Target Battery Voltage, etc) are automatically configured by the Pylontech BMU, and communicated to the rest of the Victron components in the system via DVCC. Victron Energy - https://www.victronenergy.com/live/...
- Page 8 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1659337101 2022-08-01 08:58 It is possible to override some of these automatic settings to provide additional limitations (e.g. reduce the total charge current that would be provided but the MultiPlus). The following information is provided for that purpose, though is not required for the safe operation of the system. This section presumes familiarity with VEConfigure software.
- Page 9 Discharge Current Limit set to 0A at 47V, inverter will turn off. Over-charge and Over-discharge Current Limit 102A for 15 seconds, 200A for 0.1 seconds and 400A short circuit current. If operation is attempted outside the operating range, the battery will disconnect to protect itself. Victron Energy - https://www.victronenergy.com/live/...
-
Page 10: Example Wiring Diagram
Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1659337101 2022-08-01 08:58 6. VE.Direct MPPT Settings In normal operation the MPPT charge characteristics are governed by the GX device via DVCC, with instructions from the connected Pylontech battery. This section presumes familiarity with VictronConnect The settings below can be set as a precautionary measure. MPPT Parameter Setting Battery voltage. -
Page 11: Troubleshooting
(while grid is connected) set in the GX device, and the sustain voltage (set in the ESS assistant). If the grid fails and no AC supply is available, in this deeply discharged state, and the battery has set Victron Energy - https://www.victronenergy.com/live/... - Page 12 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1659337101 2022-08-01 08:58 the Discharge Current Limit (DCL) to 0A, then the inverter will turn off in a software off state. The GX device will remain on, as there is still DC voltage provided by the batteries for a while. Note in this state an AC PV inverter will not produce any power, and will not start up, as it requires the inverter to create the sine wave to synchronise.
- Page 13 It should also be noted that a LiFePO4 cell stores very little additional energy above 3.45V. For this reason we opted to override the BMS and cap the voltage at 52.4V. This sacrifices almost Victron Energy - https://www.victronenergy.com/live/...
- Page 14 Last update: battery_compatibility:pylontech_phantom https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1659337101 2022-08-01 08:58 none of the capacity and greatly improves the stability of the system. The battery won't charge to 100% Also see the question above. The state of charge of the battery is estimated based on the overall voltage and on how well balanced the internal cells are.
-
Page 15: Further Information
Victron, and should not be assumed to be up to date. Defer to your experienced dealers recommendations. Pylontech LV-hub manual Victron Community discussion on LV-hub configuration settings with Victron DISQUS View the discussion thread. From: https://www.victronenergy.com/live/ - Victron Energy Permanent link: https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom?rev=1659337101 Last update: 2022-08-01 08:58 Victron Energy - https://www.victronenergy.com/live/...
