Victron energy Pylontech US3000C Manual

Victron & Pylontech UP2500, US2000, US3000, US2000C, US3000C, US5000, US5000B, UP5000, Phantom-S, Force-
2022-10-02 11:47 1/11
Victron & Pylontech US2000, US3000 and
Phantom-S
The combination of Victron products with Pylontech lithium batteries has been tested and certified by
the Victron and Pylontech R&D departments.
General information about the battery is found in Pylontech's documentation.
This manual is intended to be used in conjunction with the product manual supplied by Pylontech. It
provides additional and specific information regarding integration with Victron systems.
The Pylontech includes a Battery Management System (BMS) with each battery module. This
interfaces with the Victron
1. Product & system compatibility

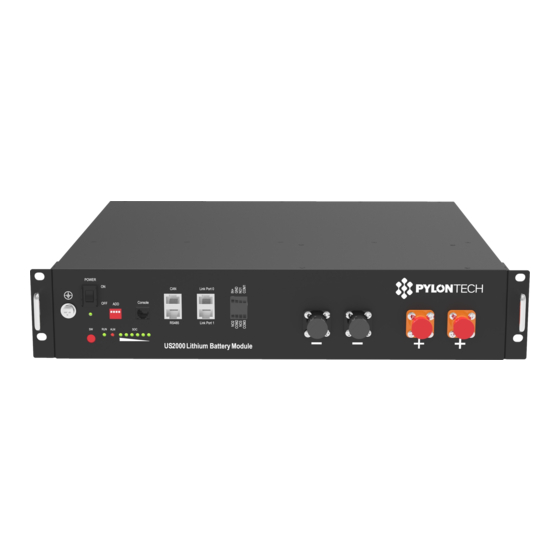

Battery US2000 (Plus) US3000 Force-L1
Module capacity
1.1 Offgrid, Backup and Energy Storage Systems are possible
Victron + Pylontech can be used for the following system types:
Off-grid
Grid Backup
Energy Storage Systems - Self Consumption
1.2 A GX-device is required, eg Color Control GX (CCGX) or Venus GX (VGX)
It is essential to use the CAN-bus connection of the
the keep-alive signal, communication of charge and discharge limits, error codes and state of charge.
The minimum required firmware version for the
Victron Energy - https://www.victronenergy.com/live/
GX device and can support multiple battery modules connected in parallel.
2.4 kWh 3.5 kWh 3.55 kWh
(ESS - Start page)
GX device (eg CCGX or VGX) with the batteries for
Color Control GX is v2.15. It is highly recommended to
L1 & L2
