Wen LA3040 Instruction Manual

THANKS FOR
REMEMBERING
V. 2019.09.16
INSTRUCTION MANUAL

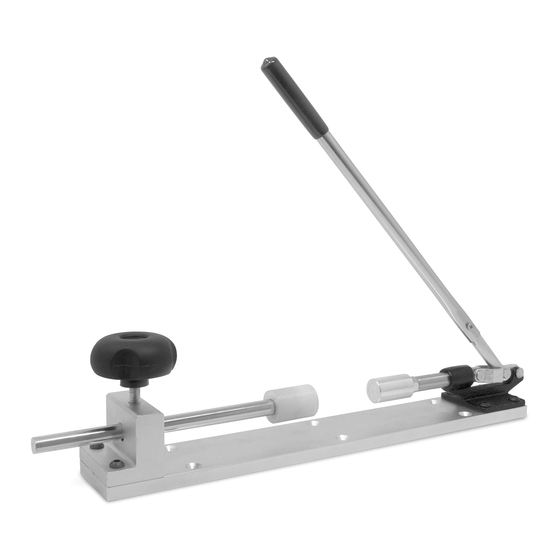

KNOW YOUR PEN PRESS
5
6
1
2
3
4
1. Adjustment Knob 5. Rubber Grip
2. Tip-End Rod 6. Handle
3. Press Cylinder 7. Toggle Clamp
4. Base 6. Flathead Screw

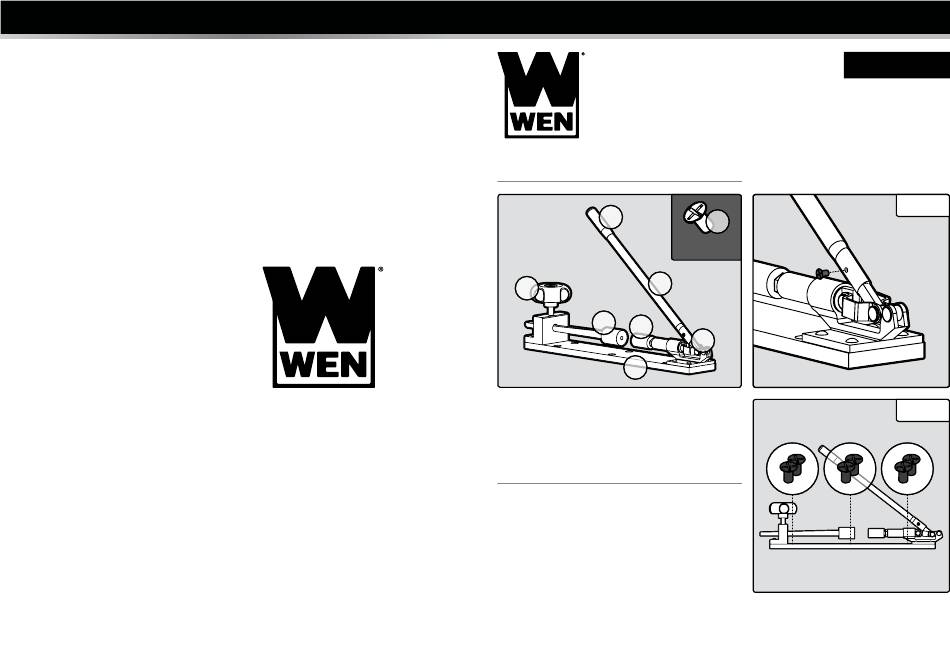

ASSEMBLING YOUR PEN PRESS
1. Affix the handle to the toggle clamp and secure with
the included screw. (Fig. 1)
2. The pen press comes with mounting holes. This
enables the pen press to be mounted onto a work
surface for secure pressing. To do so, insert six M6
flathead screws (not included) into the mounting
holes. (Fig. 2)
NOTE: The pen press does not need to be mounted and can be used simply by holding the base with
one hand.
MODEL LA3040
PEN PRESS
8
INCLUDED
FLATHEAD SCREW
7
Fig. 1
Fig. 2
