Connecting the Switcher

To connect the OMX-SW6x1B, do the following
1. Connect up to six composite video sources (for example, six composite video
players), to the composite video BNC connector.
2. Connect the composite video BNC connector to an acceptor (for example, a
composite video recorder).

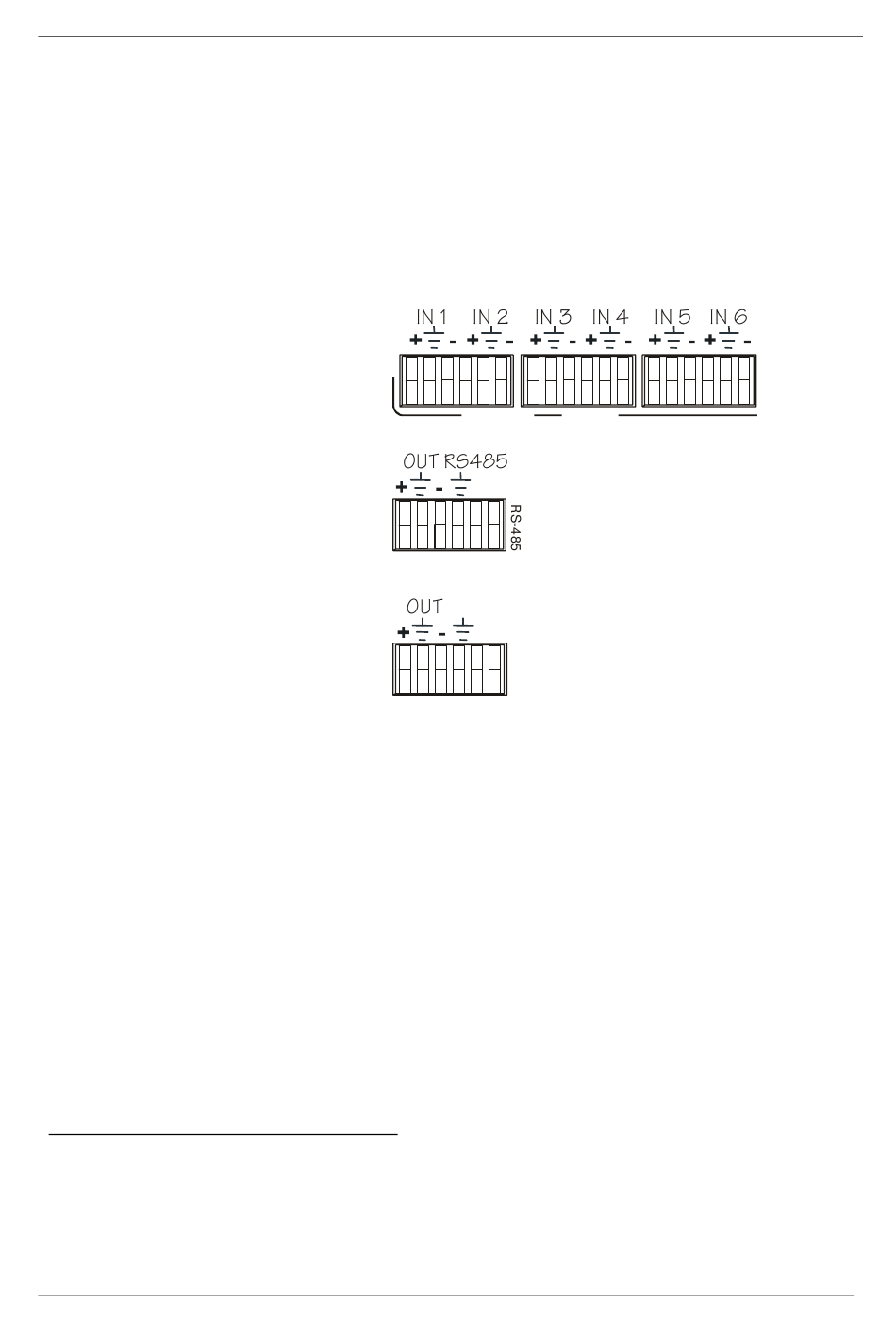

3. Connect the terminal block connectors as follows:
The AUDIO L inputs
The OUT left audio
output and the RS-485:
The OUT right audio
output:
4. Set the dipswitches (see section 6.2).
5. If required, connect a PC to the To PC RS-232 port.
6. Connect the power cord
1 Switch OFF the power on each device before connecting it to your OMX-SW6x1B. After connecting your OMX-SW6x1B,
switch on its power and then switch on the power on each device
2 Similarly connect the AUDIO R (right) inputs
3 We recommend that you use only the power cord that is supplied with this machine
Connecting the Switcher
2
:
AUDIO L
BA
OUT
OUT
3
.
6
1
:
IN 1-6
