Tosot TW09HQ3D6D Service Manual page 71

Steps

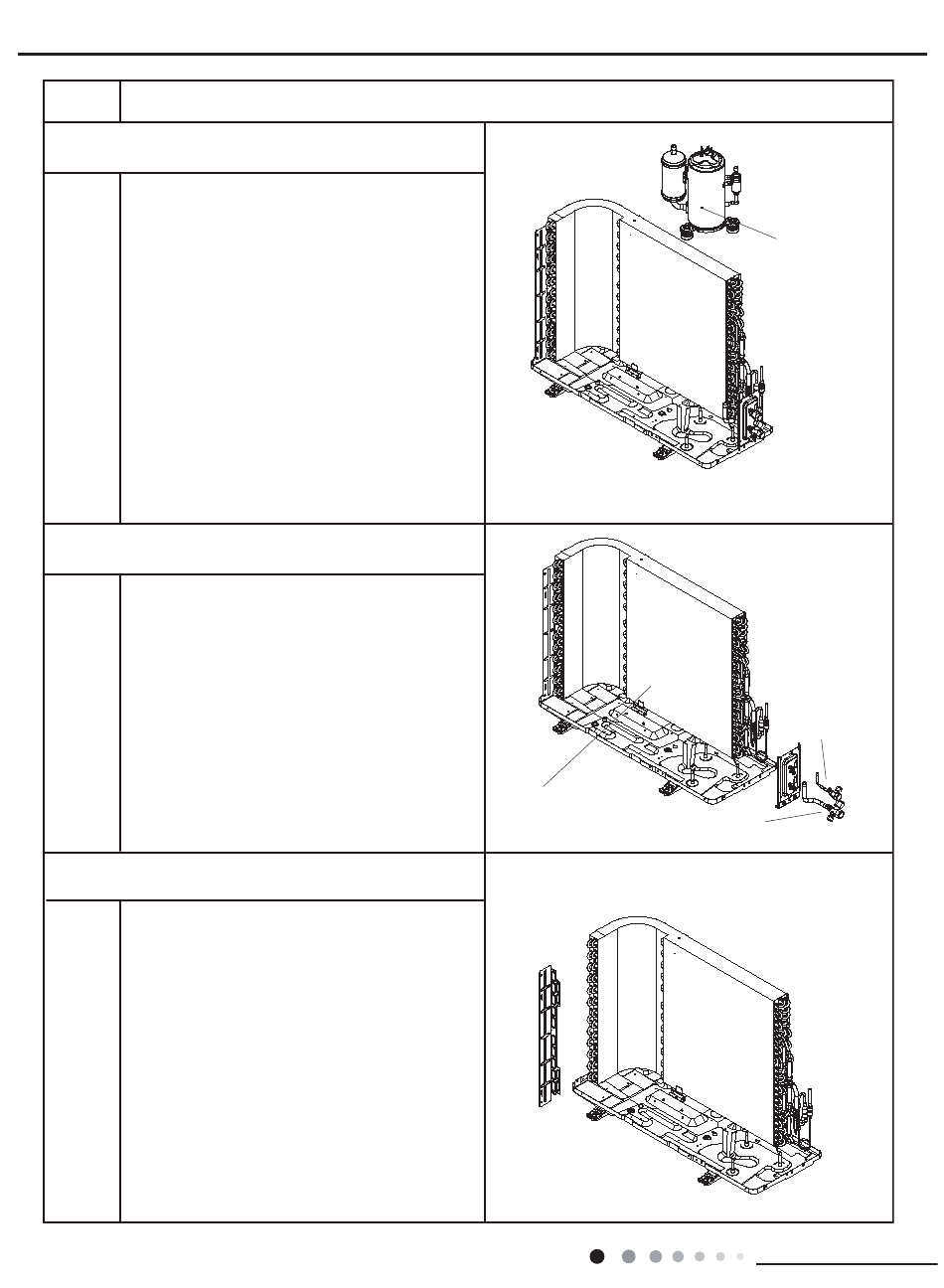

13. Remove compressor
Remove the three feet screwnuts fixing compressor,
to remove the compressor.
14. Remove big and small valve assy
Remove screws connecting condenser assy and
chassis, to remove the condenser assy.
Remove the screws fixing big and small valve, to
remove the valves.
15. Remove chassis sub-assy
Remove screws connecting condenser assy and
chassis, to remove the chassis sub-assy.
68
Procedure
condenser assy
Service Manual
compressor
small valve
big valve
Installation and Maintenance
