Service Manual

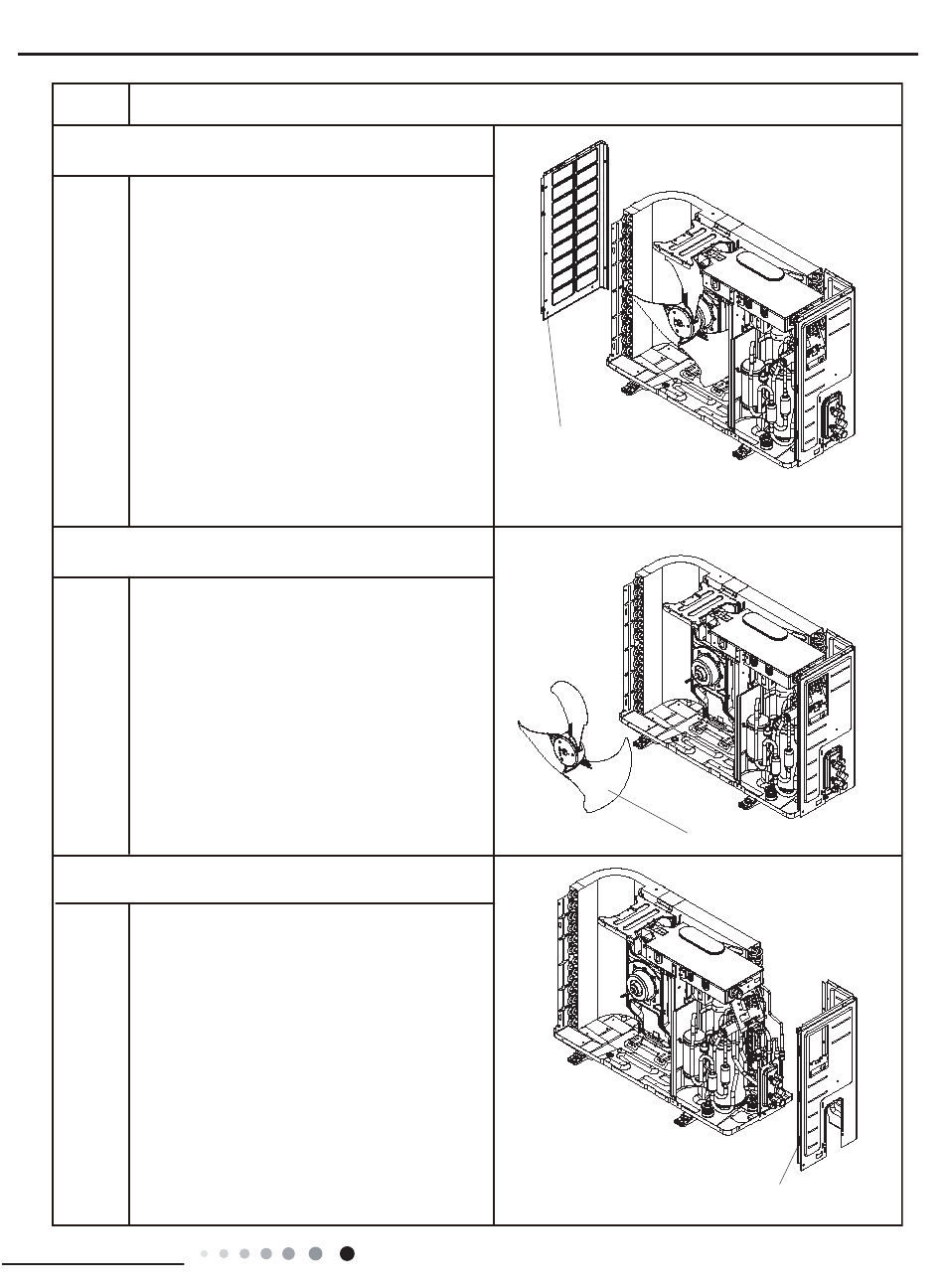

Steps
4. Remove left side plate
Remove the screws fixing left side plate and
condenser support boa rd, to remove the left side
plate.
5. Remove cross fan blade
Remove the screw nut fixing cross fan blade, remove
the gasket and spring cushion, to remove the cross
fan blade.
6. Remove right side plate
Remove the screws fixing right side plate and valve
support, to remove the right side plate.
Installation and Maintenance
Procedure
left side plate
cross fan blade
right side plate
