Maintenance

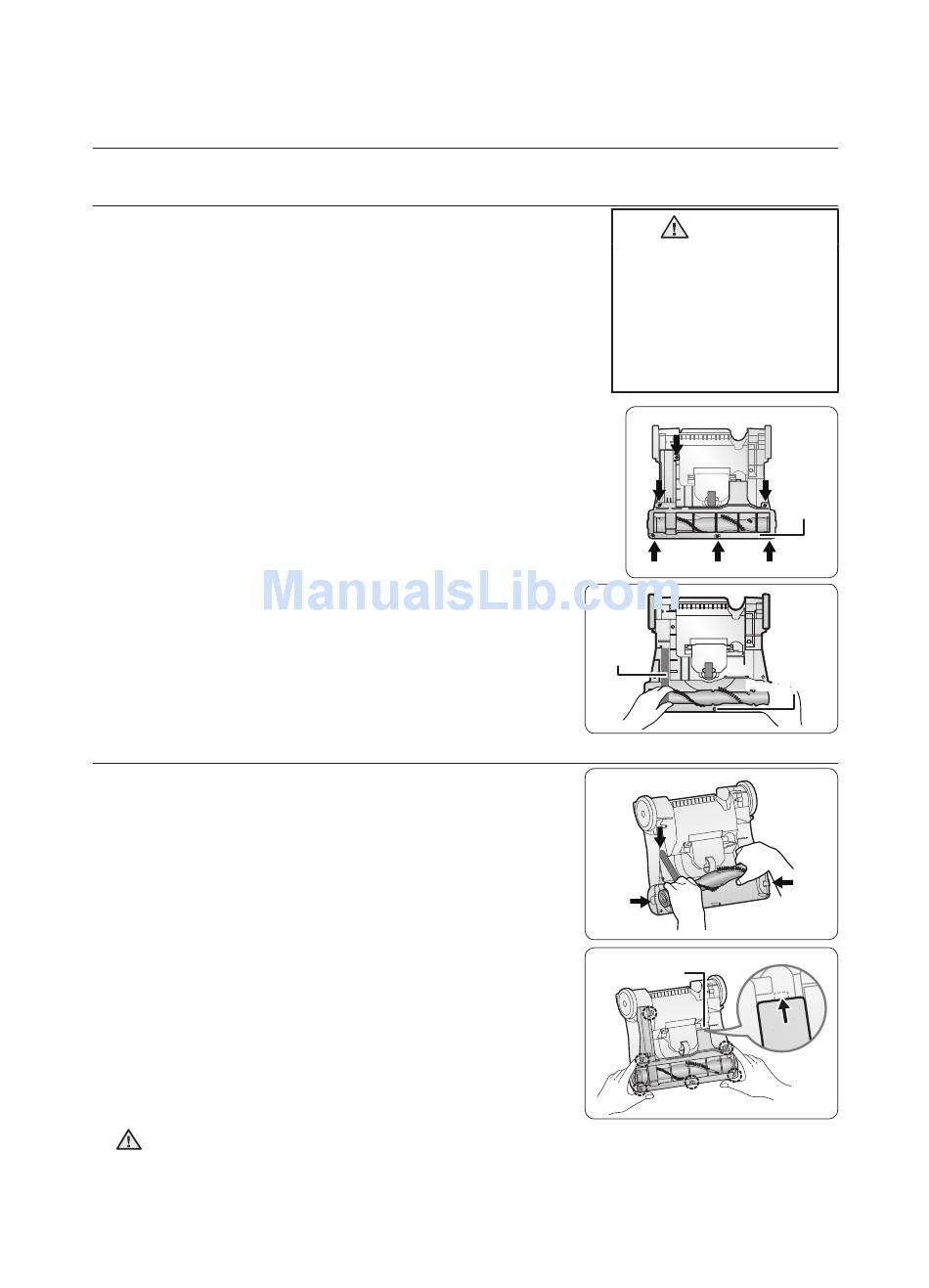

CHECK ROTATING BRUSH AND DRIVE BELT

You should check your vacuum cleaner's Rotating Floor
Brush and Drive Belt regularly for wear or damage. You
should also clean the brush and brush ends of strings,
hair, and carpet fi bers. These can wrap around the brush
and hamper its ability to effectively clean your carpet. Also
remove any debris that has accumulated under the brush
cover.
1. Unplug the Vacuum Cleaner from electrical outlet.
2. Place handle in Low position and turn vacuum cleaner
over so bottom side is up.
3. Remove the six screws as shown with screwdriver. Lift
the Brush Cover off.
4. Grasp Rotating Floor Brush at both ends and lift.
5. Clean strings, hair and other debris from Rotating Floor
brush, paying particular attention to brush ends.
6. Clean strings, hair and other debris from Motor Pulley
and Drive Belt areas.
7. Check Drive Belt carefully for wear, cuts or stressed
areas.
8. Check Air Passageway for obstructions. Remove
debris from this area.

REPLACE DRIVE BELT

1. Unplug cleaner from electrical outlet.
2. With Rotating Floor Brush removed from vacuum
cleaner grasp old Drive Belt and remove from Motor
Pulley. Discard old Drive Belt.
3. Place new Drive Belt over Motor Pulley and stretch
other end over Rotating Floor Brush in the space
between the bristles.
4. Place ends of Rotating Floor Brush down into slots
on sides as shown.
5. Turn Rotating Floor Brush by hand several times in
the direction of Motor Pulley. If properly installed,
Drive Belt will center itself on Rotating Brush crown.
6. Reposition Brush Cover and screws. Insert the
hook on the Brush Cover into the corresponding
groove on the brush and tighten scerws securely.
Be careful of your hands when you replace the drive belt, to avoide physical
WARNING
injury from sharp plastic fi lm.
12_ maintenance
WARNING
To reduce the risk of
injury from moving parts,
turn off vacuum cleaner
and disconnect Power
Plug from electrorical
outlet.
Motor Motor
Pulley y y
Passageway
① ①
②
Hook
① ①
②
Brush Brush
Cover
Air Air
g g g g g g
③
